Front Active Park Assist Sensors: Removal

WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

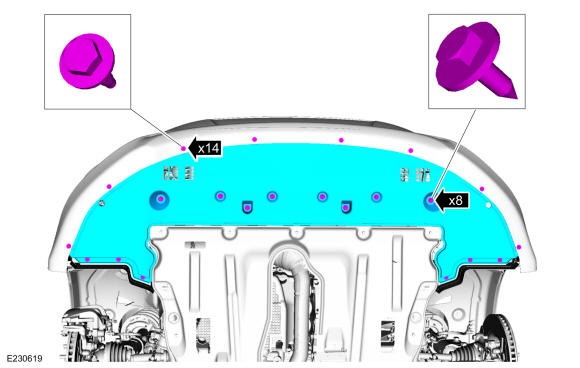

  1. Remove the bolts, the screws, the pin-type retainers and the radiator deflector.
    GFD198669Courtesy of FORD MOTOR COMPANY

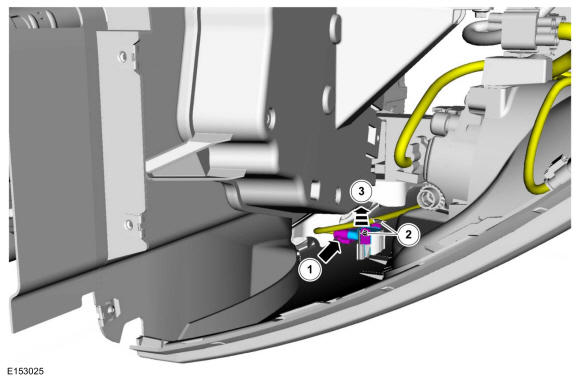

  2. Remove the front active park assist sensor.

    1. Disconnect the front active park assist sensor electrical connector.
    2. Release the tabs.
    3. Remove the front active park assist sensor from the bracket.

GFD198670Courtesy of FORD MOTOR COMPANY
