Fender Splash Shield: Removal

NOTE: LH (left-hand) side shown, RH (right-hand) side similar.

  1. 1.

    WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in the General Information article. Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions .

  1. 2.

    Remove the wheel and tire. REFER to: Wheel and Tire .

  1. 3.

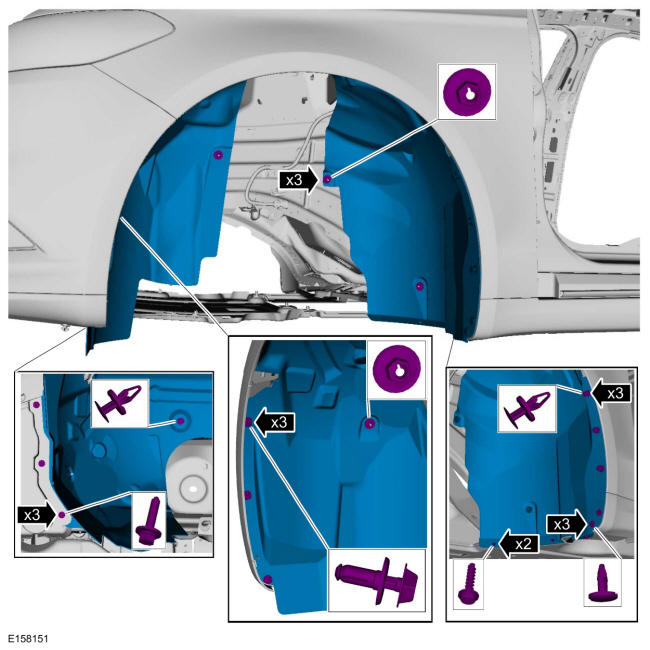

    Remove the fasteners and the fender splash shield.
GFD69388Courtesy of FORD MOTOR COMPANY
