Engine Undershield

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

Engine Undershield

  1. 1.

    Remove the screws, grommets and the engine front undershield.
GFD66475Courtesy of FORD MOTOR COMPANY

  1. 2.

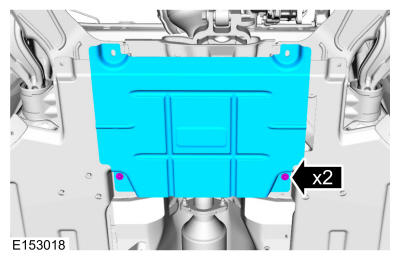

    Remove the screws and the engine undershield.
GFD66476Courtesy of FORD MOTOR COMPANY
