Wheel Knuckle - AWD: Removal

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

1.

Remove the wheel bearing and wheel hub. Refer to: Wheel Bearing and Wheel Hub - AWD .

2.
- 1.

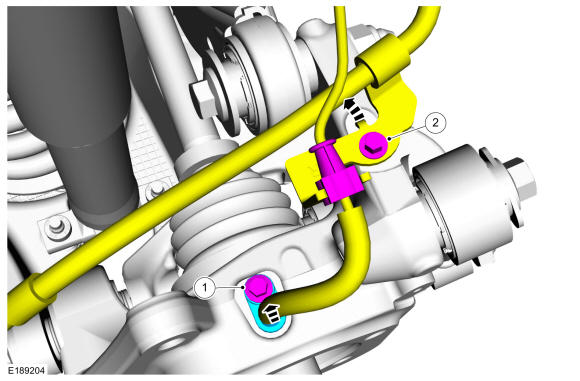

  Remove the wheel speed sensor bolt and position the wheel speed sensor aside.
- 2.

  Remove the brake hose bracket bolt and position the brake hose bracket aside.

Courtesy of FORD MOTOR COMPANY

3.

Support the rear suspension to ride height. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

4.

Remove the lower arm vertical link. Refer to: Lower Arm Vertical Link

5.

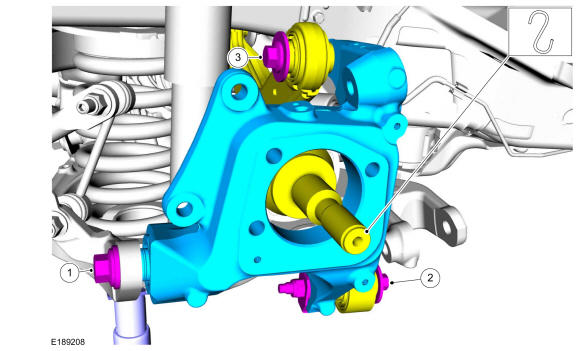

Support the halfshaft.
- 1.

  Remove the lower arm-to-wheel knuckle bolt.
- 2.

  Remove the toe link-to-wheel knuckle bolt and flagnut.
- 3.

  Remove the upper arm-to-wheel knuckle bolt and remove the wheel knuckle.

Courtesy of FORD MOTOR COMPANY
