Wheel Bearing and Wheel Hub - AWD: Installation

1.

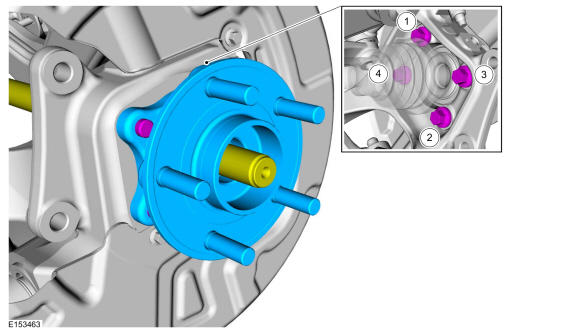

Install the wheel bearing and wheel hub and install the new wheel bearing and wheel hub retainers.
Torque

: 98 lb.ft (133 Nm)

GFD70490

Courtesy of FORD MOTOR COMPANY

2.

Install the brake disc. Refer to: Brake Disc

3.

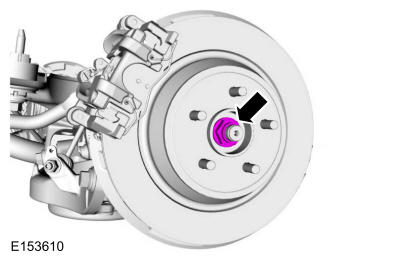

Install the new wheel hub nut.
Torque

: 148 lb.ft (200 Nm)

GFD70491

Courtesy of FORD MOTOR COMPANY

4.

Install the wheel and tire. Refer to: Wheel and Tire
