Lower Arm: Installation

1.

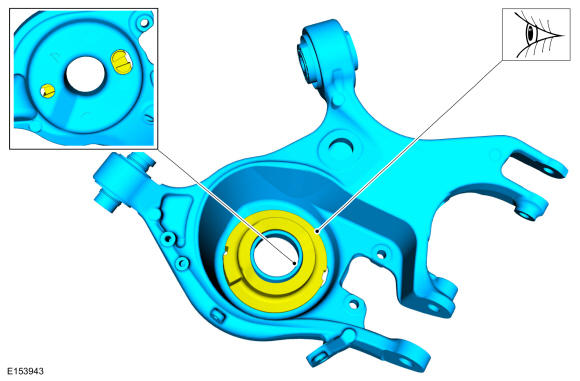

Make sure the lower spring seat is properly positioned.

GFD70509

Courtesy of FORD MOTOR COMPANY

2.

NOTE: Only tighten the bolt finger tight at this stage.

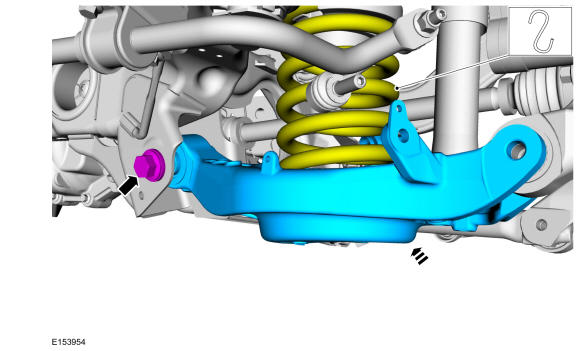

Position the lower arm and install the rearward lower arm-to-subframe bolt.

GFD70510

Courtesy of FORD MOTOR COMPANY

3.

NOTE: Only tighten the bolt finger tight at this stage.

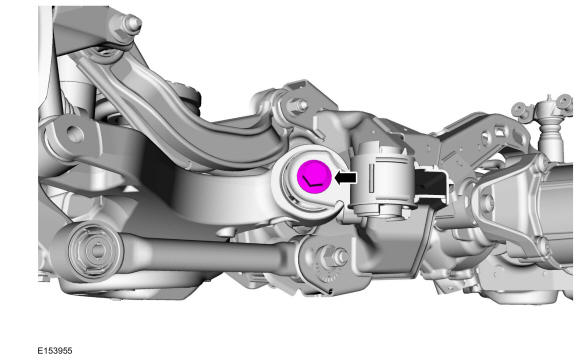

Install the forward lower arm-to-subframe bolt.

GFD70511

Courtesy of FORD MOTOR COMPANY

4.
- 1.

  NOTE: Only tighten the bolt finger tight at this stage.

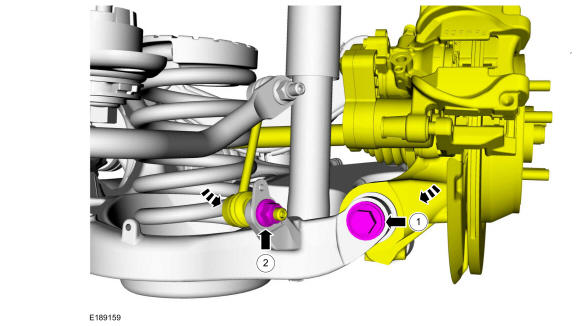

  Position the wheel knuckle and install the lower arm-to-wheel knuckle bolt.
- 2.

  NOTE: Only tighten the bolt finger tight at this stage.

  Position the stabilizer bar link and install the new stabilizer bar link lower nut.

GFD70512

Courtesy of FORD MOTOR COMPANY

5.
- 1.

  NOTE: Only tighten the bolt finger tight at this stage.

  Install the toe link-to-wheel knuckle bolt and flagnut.
- 2.

  NOTE: Only tighten the bolt finger tight at this stage.

  Install the lower arm vertical link-to-lower arm bolt.

GFD70513

Courtesy of FORD MOTOR COMPANY

6.

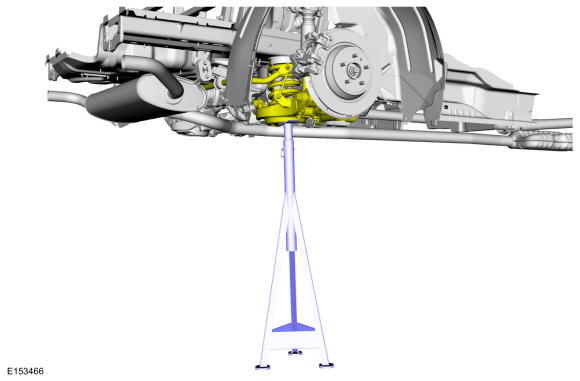

Support the rear suspension to ride height. Use the General Equipment: Vehicle/Axle Stands

GFD70502

Courtesy of FORD MOTOR COMPANY

7.

NOTE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.

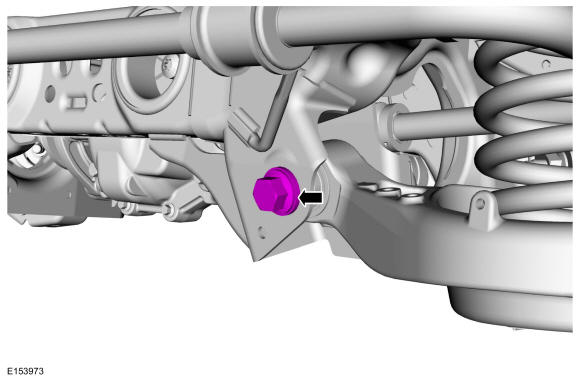

Tighten the rearward lower arm-to-subframe bolt.

Torque

: 166 lb.ft (225 Nm)

GFD70514

Courtesy of FORD MOTOR COMPANY

8.

NOTE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.

Tighten the forward lower arm-to-subframe bolt.

Torque

: 166 lb.ft (225 Nm)

GFD70511

Courtesy of FORD MOTOR COMPANY

9.

NOTE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.
- 1.

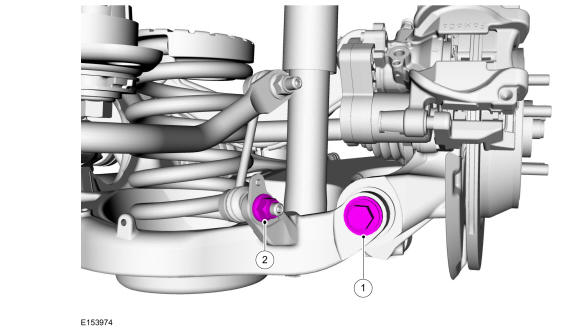

  Tighten the lower arm-to-wheel knuckle bolt.
  Torque

  : 203 lb.ft (275 Nm)
- 2.

  Tighten the stabilizer bar link lower nut.
  Torque

  : 76 lb.ft (103 Nm)

GFD70515

Courtesy of FORD MOTOR COMPANY

10.

NOTE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.
- 1.

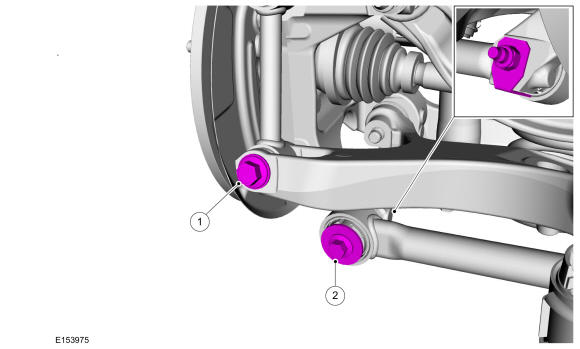

  Tighten the lower arm vertical link-to-lower arm bolt.
  Torque

  : 129 lb.ft (175 Nm)
- 2.

  Tighten the toe link-to-lower arm bolt.
  Torque

  : 76 lb.ft (103 Nm)

GFD70516

Courtesy of FORD MOTOR COMPANY

11.

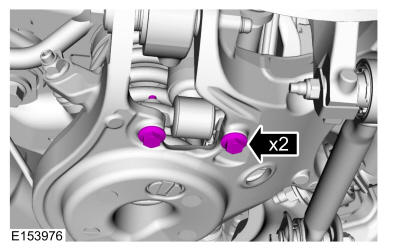

Install the new rear shock absorber lower bolts.
Torque

: 35 lb.ft (48 Nm)

GFD70517

Courtesy of FORD MOTOR COMPANY

12.

Install the wheel and tire. Refer to: Wheel and Tire

13.

Check and if necessary adjust rear camber. Refer to: Rear Camber Adjustment .
