Vehicle Dynamic Systems
Vehicle Dynamic Systems

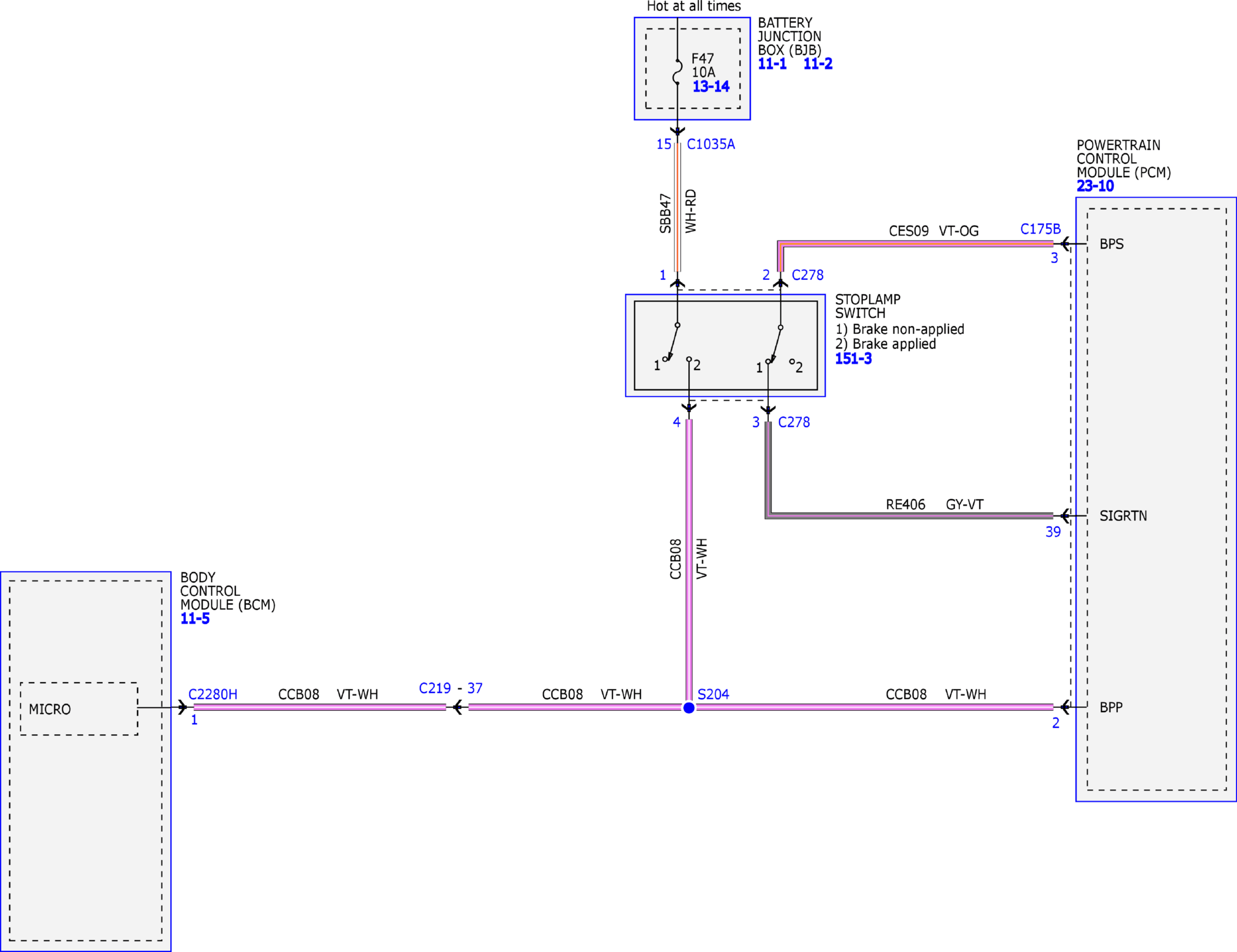

Fig 1: Vehicle Dynamic Systems Wiring Diagram (1 of 7)
Courtesy of FORD MOTOR COMPANY
Fig 2: Vehicle Dynamic Systems Wiring Diagram (2 of 7)
Courtesy of FORD MOTOR COMPANY
Fig 3: Vehicle Dynamic Systems Wiring Diagram (3 of 7)
Courtesy of FORD MOTOR COMPANY
Fig 4: Vehicle Dynamic Systems Wiring Diagram (4 of 7)
Courtesy of FORD MOTOR COMPANY
Fig 5: Vehicle Dynamic Systems Wiring Diagram (5 of 7)
Courtesy of FORD MOTOR COMPANY
Fig 6: Vehicle Dynamic Systems Wiring Diagram (6 of 7)
Courtesy of FORD MOTOR COMPANY
Fig 7: Vehicle Dynamic Systems Wiring Diagram (7 of 7)
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
