Ford
>>
2015
>>
Fusion Energi Titanium
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams (Hybrid/ENERGI)
>>
Power Mirrors
Power Mirrors

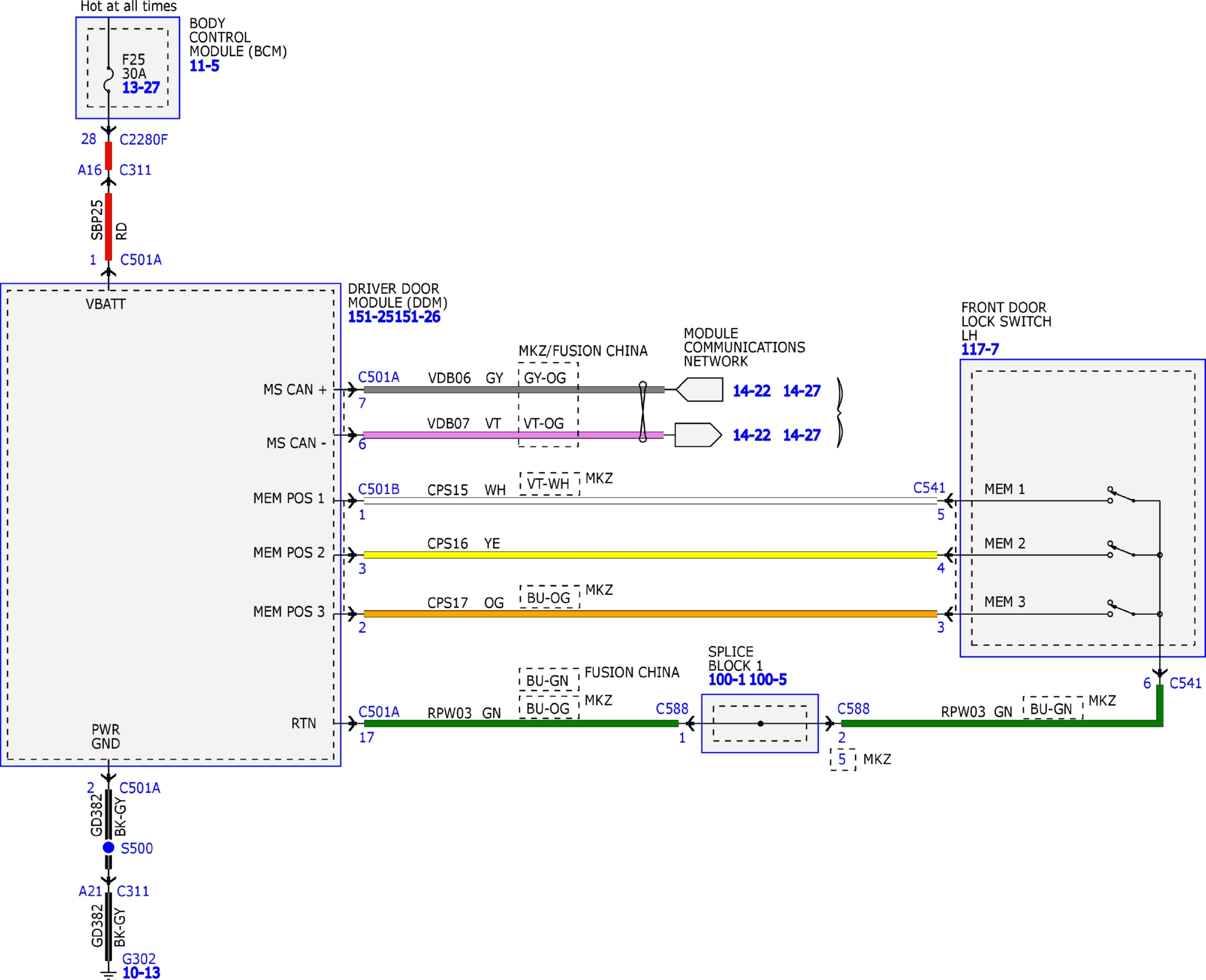

Fig 1: Power Mirrors Wiring Diagram (1 of 5)
Courtesy of FORD MOTOR COMPANY

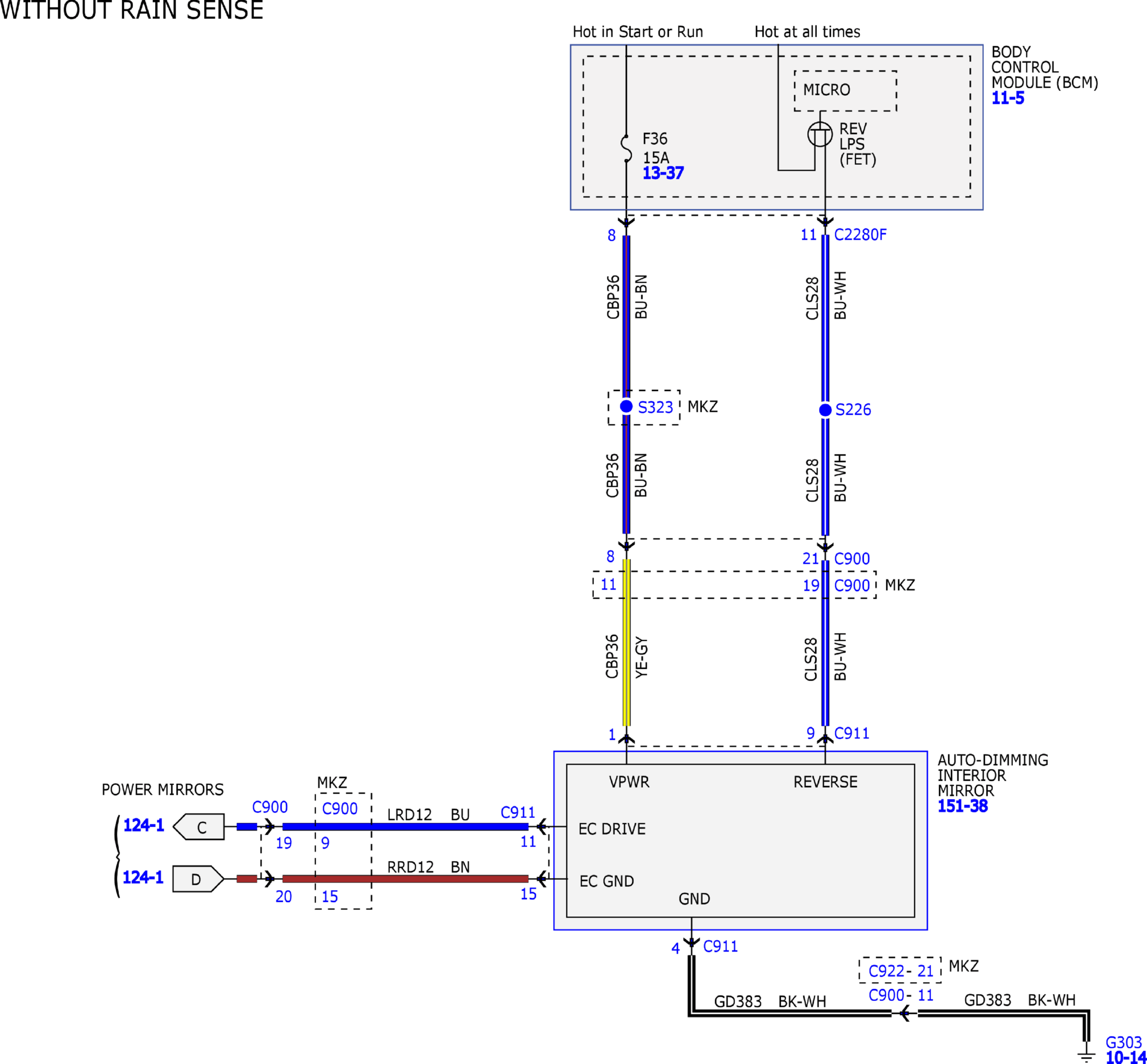

Fig 2: Power Mirrors Wiring Diagram (2 of 5)
Courtesy of FORD MOTOR COMPANY

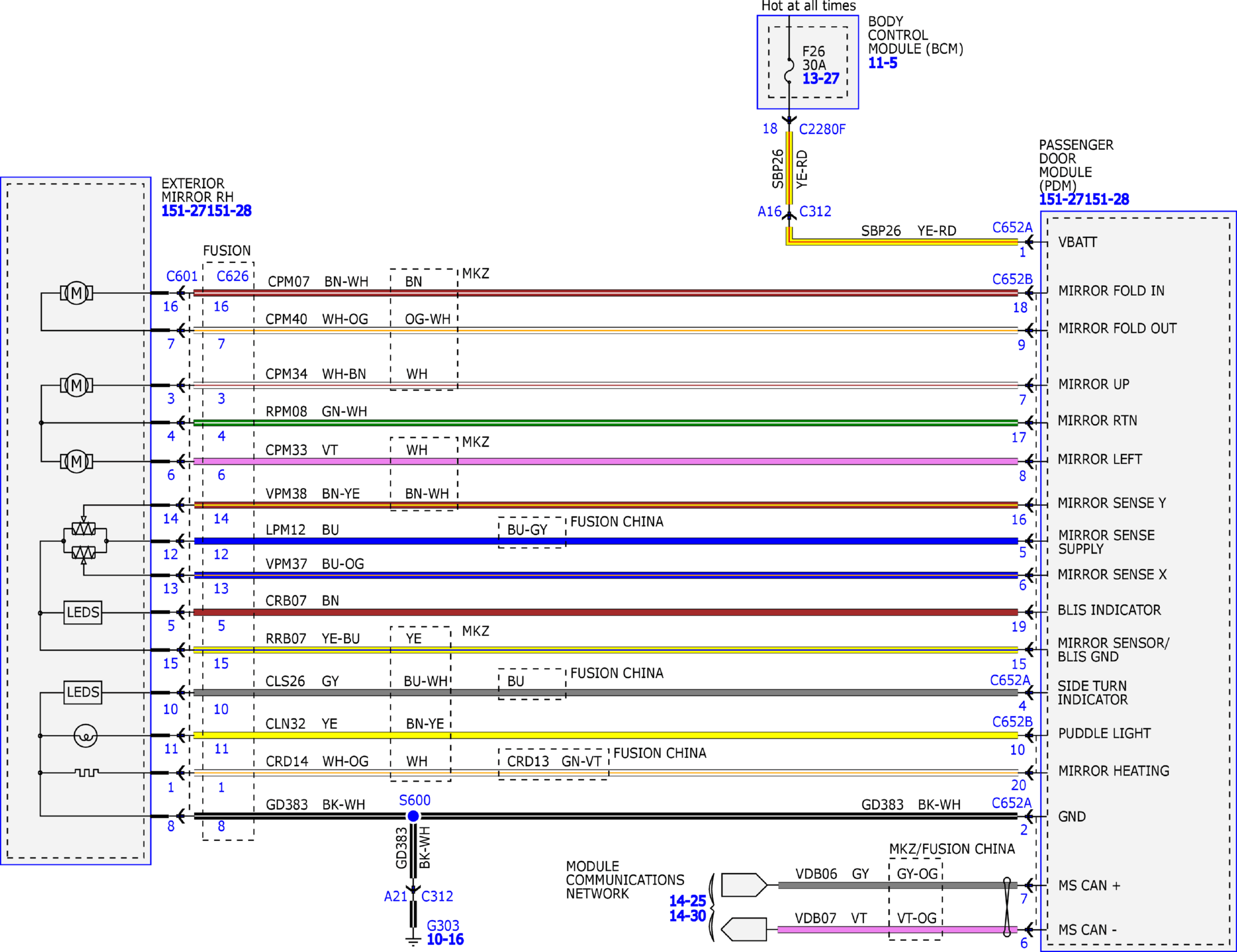

Fig 3: Power Mirrors Wiring Diagram (3 of 5)
Courtesy of FORD MOTOR COMPANY

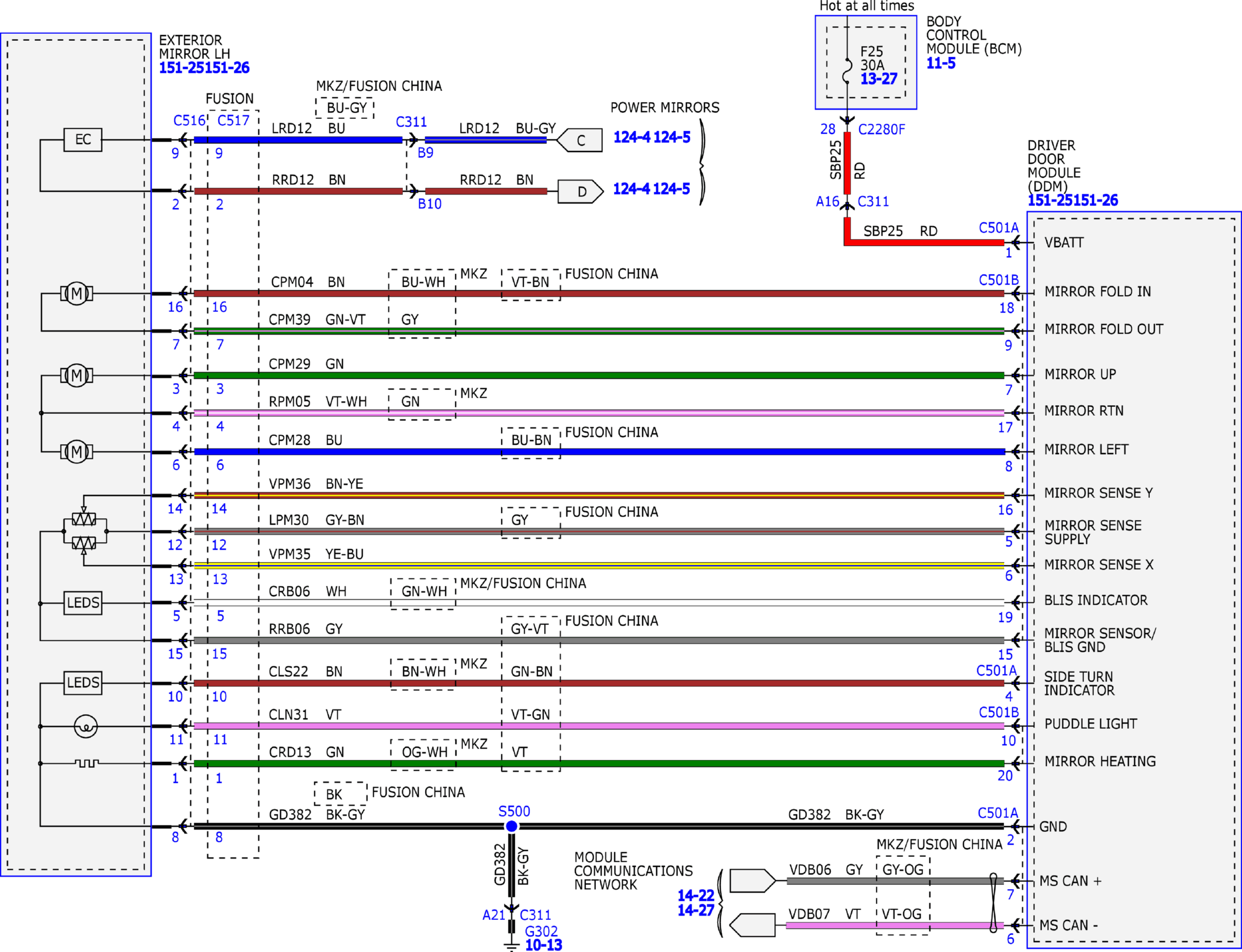

Fig 4: Power Mirrors Wiring Diagram (4 of 5)
Courtesy of FORD MOTOR COMPANY

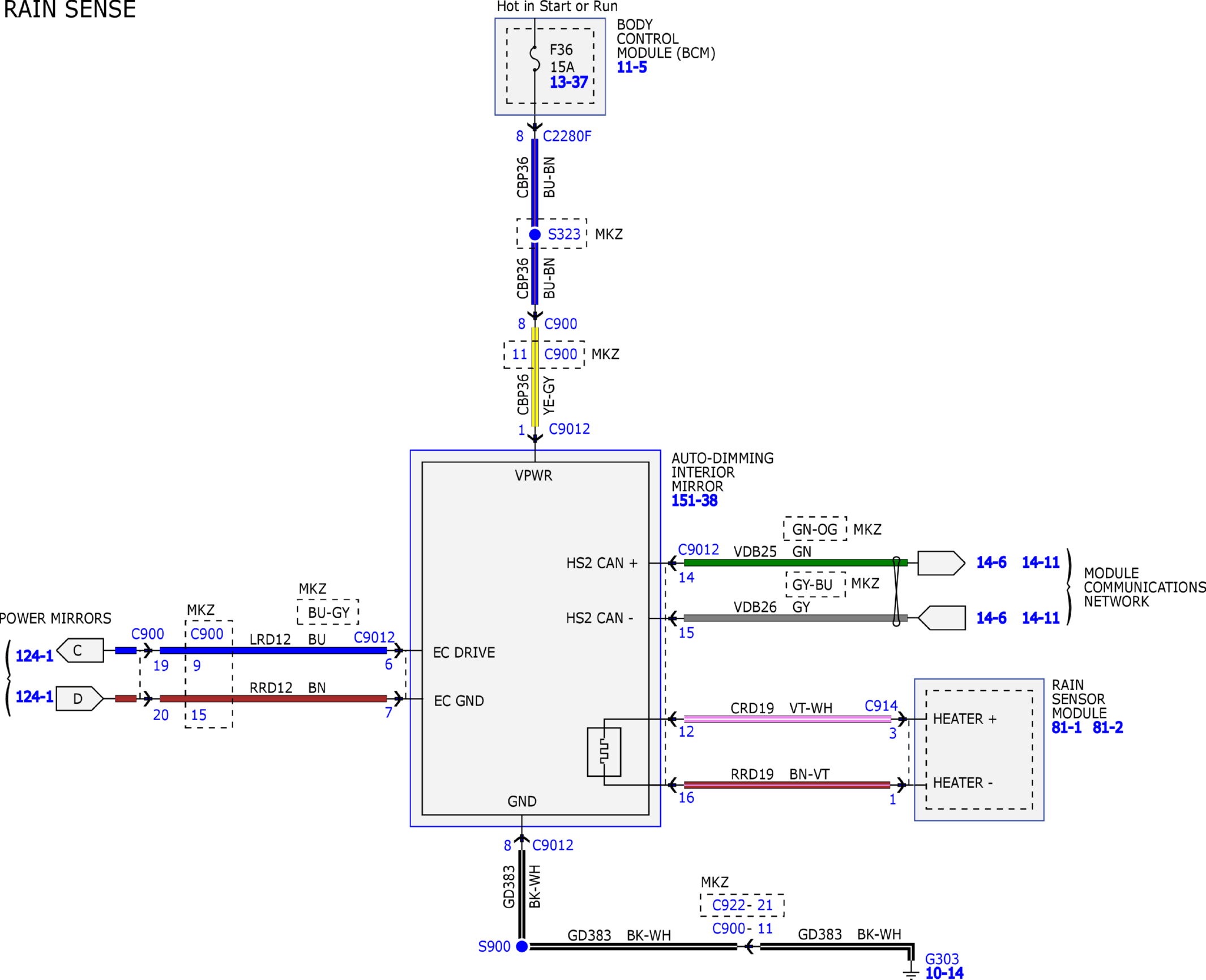

Fig 5: Power Mirrors Wiring Diagram (5 of 5)
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
