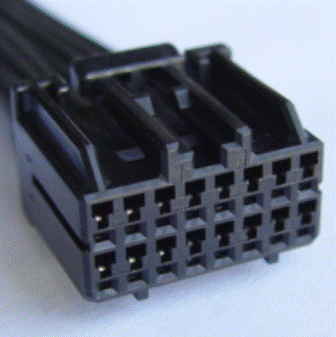

Connector End View (C4803) - TELEMATIC CONTROL UNIT MODULE (TCU)
Description
TELEMATIC CONTROL UNIT MODULE (TCU)
Color
Harness
14A005
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
SBP10 (YE-RD) |
20 |
FUSE - 10 OR CIRCUIT BREAKER |
|
|
2 |
* |
* |
Not Used |
|
|
3 |
* |
* |
Not Used |
|
|
4 |
* |
* |
Not Used |
|
|
5 |
* |
* |
Not Used |
|
|
6 |
* |
* |
Not Used |
|
|
7 |
* |
* |
Not Used |
|
|
8 |
VDB29 (GN-BU) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 |
|
|
8 |
VDB29 (GN) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 |
|
|
9 |
* |
* |
Not Used |
|
|
10 |
* |
* |
Not Used |
|
|
11 |
* |
* |
Not Used |
|
|
12 |
* |
* |
Not Used |
|
|
13 |
GD313 (BK-GN) |
22 |
GROUND - PILLAR C OR QUARTER PANEL RIGHT # 2ND POINT |
|
|
13 |
GD347 (BK-VT) |
22 |
GROUND - PILLAR C OR QUARTER PANEL LEFT |
|
|
14 |
* |
* |
Not Used |
|
|
15 |
* |
* |
Not Used |
|
|
16 |
VDB30 (WH-GN) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 |
|
|
16 |
VDB30 (WH) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 |
|
Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-242 |
Service Part Number: 3U2Z-14S411-EBA Gauge: 18 Pin material: Tin Cavities: 16 Vehicle Uses Module - Lighting Control Module - Seat Memory |
