Connector End View (C4465) - DECKLID RELEASE SWITCH/LAMP ASSEMBLY

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CLS05 (BU-GY)

22

CTRL MOD. - PARK

2

CPL60 (BN-YE)

20

SWITCH - LIFTGATE GLASS RELEASE

3

*

*

Not Used

4

GD347 (BK-VT)

22

GROUND - PILLAR C OR QUARTER PANEL LEFT

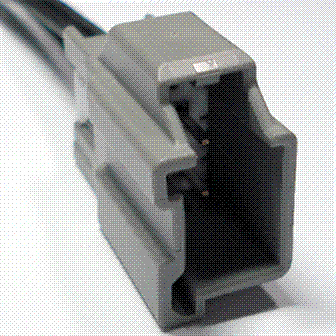

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1076

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-BUB

Gauge:

14

Pin material:

Tin (greased)

Cavities:

4

Vehicle Uses

Connector - Inline

Element - Heated Seat

Lamp - Ash Tray

Lamp - Courtesy - Footwell

Module - Remote Keyless Entry

Motor - Heater/AC Blower (Auxiliary)

Radio - Amplifier

Switch - Convertable Top
