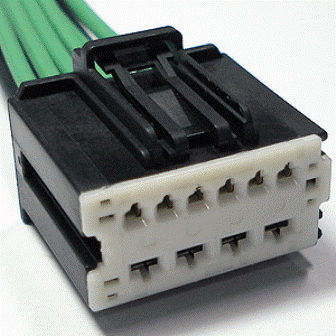

Connector End View (C4455A) - BATTERY CHARGER CONTROL MODULE (BCCM)
Description
BATTERY CHARGER CONTROL MODULE (BCCM)
Color
Harness
14A005
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
VYB18 (WH-GN) |
22 |
CTRL MOD. - TRACTION CONTROL BATTERY # COOLING FAN PWM (PWMB) |
|
|
2 |
VDB05 (WH) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW |
|
|
3 |
VDB04 (WH-BU) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH |
|
|
4 |
VYB19 (GY-VT) |
22 |
SENSOR - TRACTION CONTROL BATTERY # COOLING FAN FEEDBACK (FBB) |
|
|
5 |
CYD14 (GN-BN) |
22 |
CTRL MOD. - DC/DC CONVERTER # DC/DC WAKEUP (DCDC_WKUP) |
|
|
6 |
CBB29 (WH-VT) |
18 |
FUSE - 29 OR CIRCUIT BREAKER |
|
|
7 |
* |
* |
Not Used |
|
|
8 |
SBB57 (RD) |
10 |
FUSE - 57 OR CIRCUIT BREAKER |
|
|
9 |
* |
* |
Not Used |
|
|
10 |
* |
* |
Not Used |
|
Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1042 |
Service Part Number: AU2Z-14S411-CA Gauge: 12 14 Pin material: Tin & Silver Cavities: 10 Vehicle Uses Module - Transfer Case Shift Control |
