Connector End View (C4287) - EVAPORATIVE EMISSION (EVAP) VAPOR BLOCKING VALVE

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CE420 (GY-VT)

20

CTRL MOD. - POWERTRAIN # VAPOR MANAGEMENT VALVE

2

CBK02 (GN)

18

FUSE - 2 OR CIRCUIT BREAKER

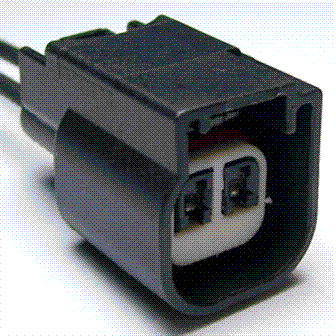

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1243

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-RPC

Gauge:

16

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses

Actuator - Door Lock - LH - Rear

Actuator - Door Lock - RH - Rear

Handle - Decklid

Lamp - Headlamp - High/Low Beam

Lamp - Headlamp - Low Beam

Lamp - License

Lamp - Rear Turn

Lamp - Side Marker

Sensor - Knock

Sensor - Seat Track Position

Sensor - Throttle Position

Sensor - Turbine Shaft Speed

Sensor - Water in Fuel

Switch - Deck Lid / Lift Gate Ajar

Switch - Door Ajar / Interior Lamp

Switch - Hood Ajar

Switch - Lift Gate Glass Ajar

Switch - Stop Lamp

Valve - Vapor Management
