Connector End View (C4186) - POWER DECKLID CHIME

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CPR56 (VT-BN)

22

CTRL MOD. - POWER LIFTGATE # CHIME +

2

RPR56 (GY-VT)

22

CTRL MOD. - POWER LIFTGATE # CHIME -

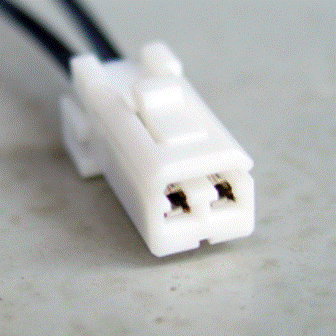

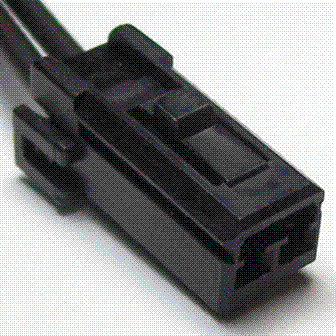

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1322

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-CSAB

Gauge:

18

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses

Lamp - Dome

Lamp - Dome/Map

Module - Radio Power Antenna

Module - Warning Chime/ Beltminder

Solenoid - Brake Shift Park Interlock

Speaker - Reverse Park Aid (RPA)

Pigtail Kit Part Number

WPT-675

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-CSAA

Gauge:

16

Pin material:

Tin

Cavities:

2

Vehicle Uses

Lamp - PRNDL Indicator

Module - Driver Door

Module - Heated Seat (driver)

Sensor - Fuel Tank Temperature
