Connector End View (C218A) - CLOCKSPRING
Description
CLOCKSPRING
Color
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
VLN04 (BU-WH) |
26 |
CTRL MOD. - IP/SWITCH ILLUMINATION |
|
|
1 |
VLN04 (VT) |
26 |
CTRL MOD. - IP/SWITCH ILLUMINATION |
|
|
2 |
RHS73 (BN-BU) |
22 |
CTRL MOD. - HEATER STEERING WHEEL # SENSOR |
|
|
3 |
CHS71 (BU) |
22 |
CTRL MOD. - HEATER STEERING WHEEL # SENSOR POWER |
|
|
4 |
GD214 (BK-BU) |
22 |
GROUND - INSTRUMENT PANEL STRUCTURE |
|
|
5 |
* |
* |
Not Used |
|
|
6 |
* |
* |
Not Used |
|
|
7 |
* |
* |
Not Used |
|
|
8 |
* |
* |
Not Used |
|
|
9 |
CR102 (BU) |
20 |
CTRL MOD. - AIR BAG DRIVER 2 + |
|
|
10 |
RR102 (WH) |
20 |
CTRL MOD. - AIR BAG DRIVER 2 - |
|
|
11 |
RR101 (YE-GN) |
20 |
CTRL MOD. - AIR BAG DRIVER 1 - |
|
|
12 |
CR101 (VT-BN) |
20 |
CTRL MOD. - AIR BAG DRIVER 1+ |
|

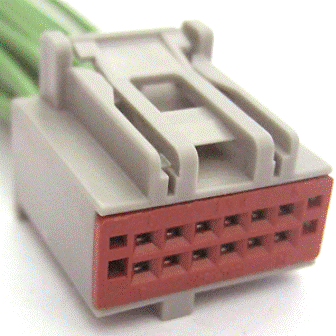

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-949 |
Service Part Number: 3U2Z-14S411-BMAB Gauge: 18 Pin material: Silver Cavities: 12 Vehicle Uses Control - Navigation Display Module - Driver Door Module - Front Interface Monitor - Video/DVD Switch - Gear Shift Select/Neutral Safety |
