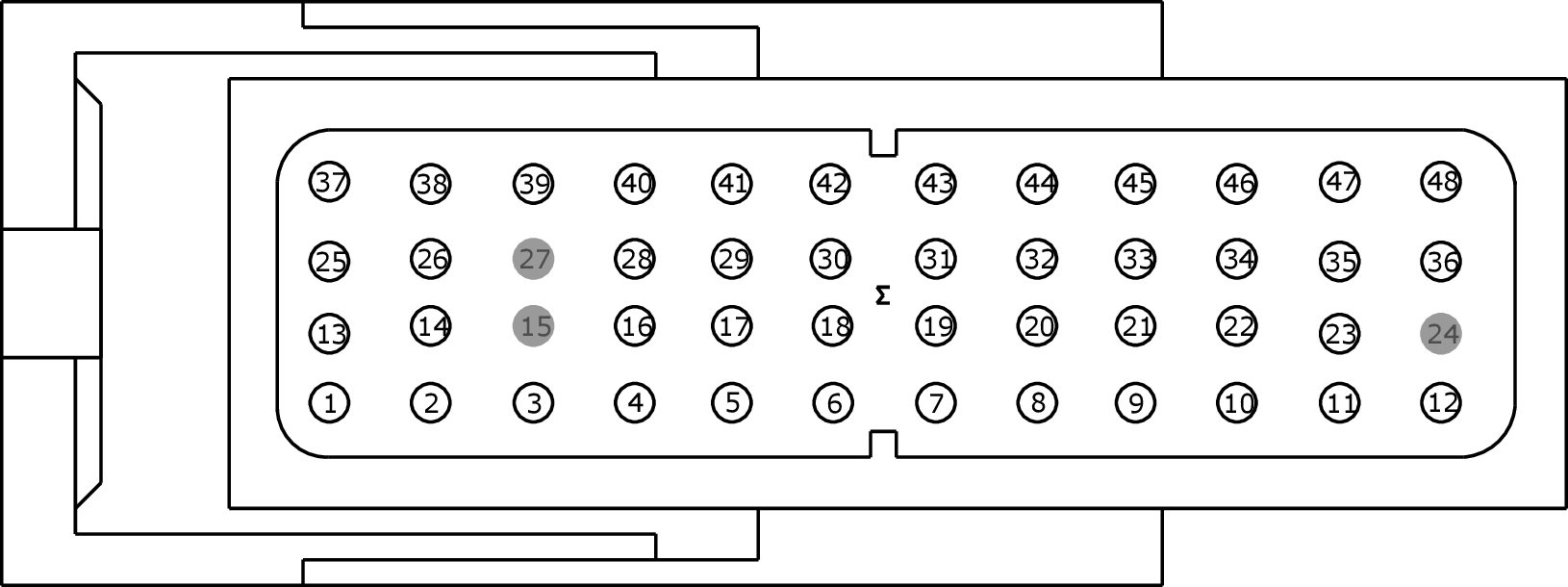

Connector End View (C175B) - POWERTRAIN CONTROL MODULE (PCM)
Description
POWERTRAIN CONTROL MODULE (PCM)
Color
Harness
12A581
Base Part #
part# N/A
Service Pigtail
Not Available
Check for Terminal Part Numbers
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CE237 (BN-WH) |
20 |
CTRL MOD. - POWERTRAIN # HOLD PCM RELAY (PCMRC) |
|
|
2 |
CCB08 (VT-WH) |
20 |
SWITCH - BRAKE ON/OFF (BPP) |
|
|
3 |
CES09 (VT-OG) |
20 |
SWITCH - BRAKE PEDAL # SPEED CONTROL DEACTIVATION (BPS) |
|
|
4 |
VE518 (BN-WH) |
20 |
MONITOR - FUEL PUMP (FPM) |
|
|
5 |
CET34 (BN-GN) |
20 |
SWITCH - TRANSMISSION CONTROL / OVERDRIVE CANCEL |
|
|
6 |
RET57 (YE) |
20 |
CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE ANALOG 1 |
|
|
7 |
VET77 (GY-YE) |
18 |
ACTUATOR - GEAR SHIFT # PWM OUT 2 (PWM2) |
|
|
8 |
CBB26 (BU-WH) |
20 |
FUSE - 26 OR CIRCUIT BREAKER (ISP-R) |
|
|
9 |
CDC35 (BU-WH) |
20 |
SWITCH - IGNITION # START |
|
|
10 |
SBB18 (YE-RD) |
20 |
FUSE - 18 OR CIRCUIT BREAKER (KAPWR) |
|
|
11 |
CBB07 (GN-BU) |
16 |
FUSE - 7 OR CIRCUIT BREAKER (VPWR) |
|
|
12 |
CBB07 (GN-BU) |
16 |
FUSE - 7 OR CIRCUIT BREAKER (VPWR) |
|
|
13 |
VEC03 (WH-BU) |
20 |
CTRL MOD. - COOLING FAN CONTROL VARIABLE (FCV) |
|
|
14 |
LE230 (BN-BU) |
20 |
CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER REF. VOLT. |
|
|
15 |
* |
* |
Not Used |
|
|
16 |
LE423 (GN-VT) |
20 |
CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE |
|
|
17 |
LE137 (BU-GY) |
20 |
CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APPVREF2) |
|
|
18 |
LE136 (GN-OG) |
20 |
CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APPVREF1) |
|
|
19 |
VDB05 (WH) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW |
|
|
20 |
VDB04 (WH-BU) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH |
|
|
21 |
CE436 (VT-OG) |
22 |
CTRL MOD. -WAKE UP PCM |
|
|
22 |
LE424 (YE-GN) |
20 |
CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE COWL |
|
|
23 |
CE229 (VT-OG) |
20 |
CTRL MOD. - POWERTRAIN # FUEL TANK LEAK DETECTION PUMP MOTOR |
|
|
24 |
* |
* |
Not Used |
|
|
25 |
CH116 (YE-GN) |
18 |
CTRL MOD. - CLIMATE # WATER SHUT OFF VALVE |
|
|
26 |
VE922 (VT-GN) |
20 |
TRANSDUCER - FUEL TANK PRESSURE (FTP) |
|
|
27 |
* |
* |
Not Used |
|
|
28 |
VH433 (VT-OG) |
20 |
TRANSDUCER - A/C PRESSURE |
|
|
29 |
VE702 (BU-WH) |
20 |
SENSOR - ACCELERATOR PEDAL POSITION # 2 (APP2) |
|
|
30 |
VE701 (YE-OG) |
20 |
SENSOR - ACCELERATOR PEDAL POSITION # 1 (APP1) |
|
|
31 |
VE934 (GY-BN) |
20 |
TRANSDUCER - FUEL TANK PRESSURE 2ND |
|
|
32 |
VE716 (YE) |
20 |
SENSOR - ENGINE COOLANT TEMPERATURE |
|
|
33 |
VE750 (GN-BU) |
20 |
SENSOR - POWERTRAIN AMBIENT TEMP. SENSOR (AAT) |
|
|
34 |
CE204 (WH-BU) |
22 |
CTRL MOD. - POWERTRAIN # FUEL CAP OFF INDICATOR LAMP |
|
|
35 |
GD113 (BK-YE) |
16 |
GROUND - COWL TOP RIGHT (PWRGND) |
|
|
36 |
GD113 (BK-YE) |
16 |
GROUND - COWL TOP RIGHT (PWRGND) |
|
|
37 |
VE225 (YE-OG) |
20 |
CTRL MOD. - POWERTRAIN # FUEL PUMP COMMAND (FPC) |
|
|
38 |
RE230 (WH-VT) |
20 |
CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER |
|
|
39 |
RE406 (GY-VT) |
20 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (SIGRTN) |
|
|
40 |
RE407 (YE-VT) |
20 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL |
|
|
41 |
RE137 (YE-GN) |
20 |
CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APPRTN2) |
|
|
42 |
RE136 (VT-GN) |
20 |
CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APPRTN1) |
|
|
43 |
RE259 (BU) |
20 |
CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER 2ND |
|
|
44 |
RE141 (BN-GN) |
20 |
CTRL MOD. - POWERTRAIN # ENGINE COOLANT TEMPERATURE SENSOR |
|
|
45 |
RE335 (BN-VT) |
20 |
CTRL MOD. - POWERTRAIN # POWERTRAIN AMBIENT TEMP. SENSOR (SIGRTN) |
|
|
46 |
RE407 (YE-VT) |
20 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL |
|
|
47 |
GD113 (BK-YE) |
16 |
GROUND - COWL TOP RIGHT (PWRGND) |
|
|
48 |
GD113 (BK-YE) |
16 |
GROUND - COWL TOP RIGHT (PWRGND) |
