Steering Wheel Multifunction Switch: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- 1.WARNING: Before beginning any service procedure in this article, REFER to Health and Safety Precautions . Failure to follow this instruction may result in serious personal injury.
Follow the health and safety precautions. Refer to: Health and Safety Precautions .
- 2.
Remove the driver airbag. Refer to: Driver Airbag .
- 3.

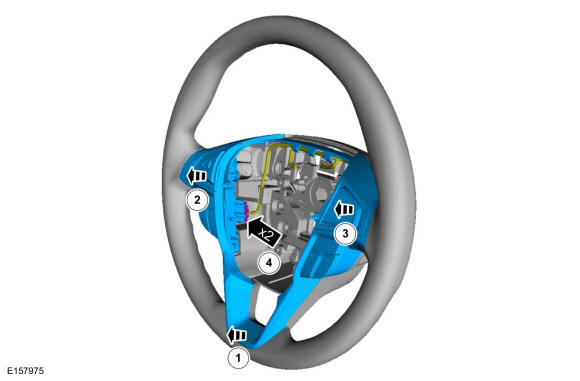

- Using a suitable flat-bladed tool, start at the bottom and remove the bezel in the sequence shown. Use the General Equipment: Interior Trim Remover

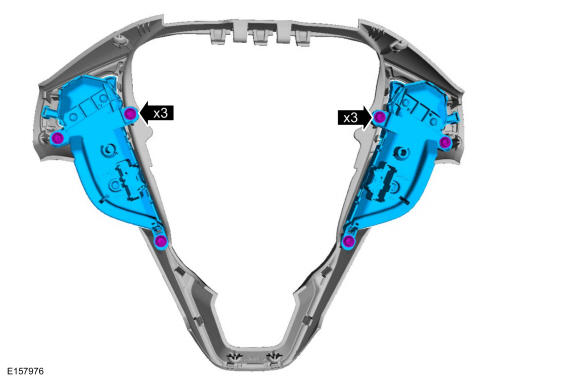

- Disconnect the electrical connectors and remove the bezel.
