Steering Column Control Module (SCCM): Removal
NOTE:
Removal steps in this procedure may contain installation details.
- 1.WARNING: Before beginning any service procedure in this article, refer to Health and Safety Precautions . Failure to follow this instruction may result in serious personal injury.
Follow the health and safety precautions. Refer to: Health and Safety Precautions .
- 2.
If installing a new SCCM, connect the diagnostic scan tool and upload the module configuration information from the SCCM.
- 3.
Remove the steering wheel. Refer to: Steering Wheel .
- 4.
Remove the steering column shrouds. Refer to: Steering Column Shrouds .
- 5.

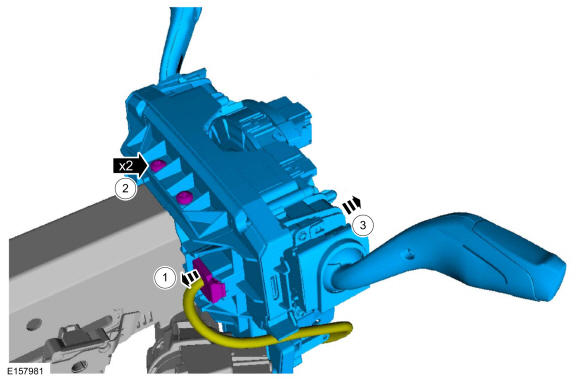

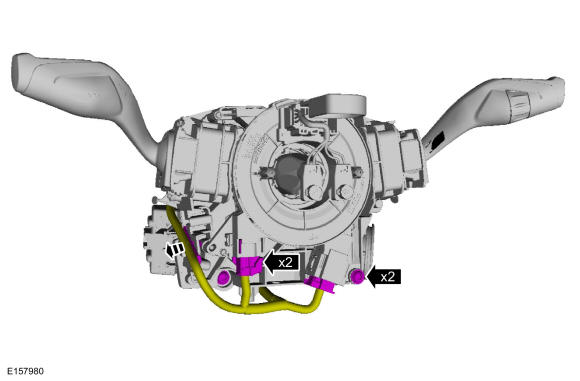

- Detach the retainer and disconnect the electrical connectors.
- Remove the SCCM screws.
Torque: 27 lb.in (3 Nm)
