Wheel Bearing and Wheel Hub: Removal

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

1.

Remove the brake disc. REFER to: Brake Disc

2.

Disconnect the wheel speed sensor electrical connector.

Courtesy of FORD MOTOR COMPANY

3.

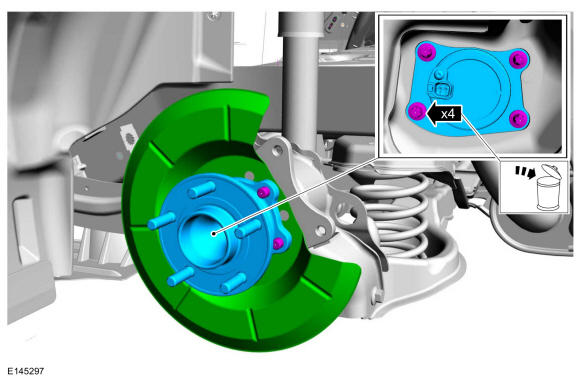

Remove and discard the wheel bearing and wheel hub bolts and remove the wheel bearing and wheel hub.

Courtesy of FORD MOTOR COMPANY
