Upper Arm: Installation
- 1.
- 1.
Position the correct spacer.
- 2.
Verify the spacer is placed properly. Use the General Equipment: Vehicle/Axle Stands
- 1.
- 2.

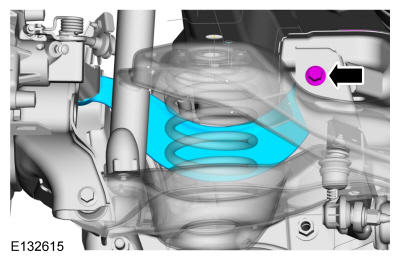

Install the upper arm and install the new upper arm-to-rear subframe bolt.Torque
: 85 lb.ft (115 Nm)
- 3.

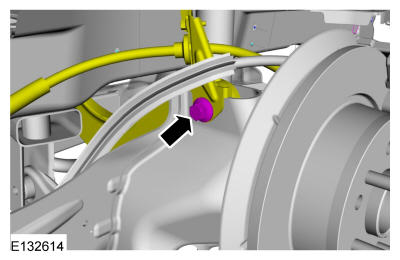

Position the upper arm and the brake hose bracket and install the new upper arm-to-trailing arm bolt.Torque
: 85 lb.ft (115 Nm)
- 4.
Position the rear shock absorber and install the new rear shock absorber lower bolt.Torque
: 85 lb.ft (115 Nm)
- 5.
Install the spring. REFER to: Spring
