Rear Stabilizer Bar Link - Vehicles With: Ball Joint Stabilizer Bar Link: Removal

NOTE: Removal steps in this procedure may contain installation details.

• 1.

  With the vehicle in NEUTRAL, position it on a hoist. REFER to: Jacking and Lifting - Overview

• 2.


  NOTE: Make sure that the ball joint ball does not rotate.

  • 1.

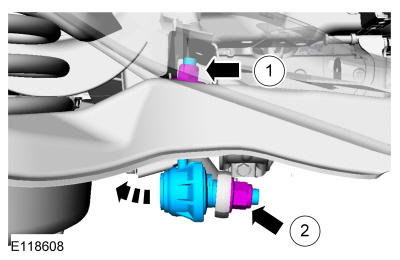

    On both sides. Remove the rear stabilizer bar link upper nut.

    Torque

    : 35 lb.ft (48 Nm)

  • 2.

    Remove the rear stabilizer bar link lower nut and remove the rear stabilizer bar link.

    Torque

    : 81 lb.ft (110 Nm)

Courtesy of FORD MOTOR COMPANY
