Power Distribution System

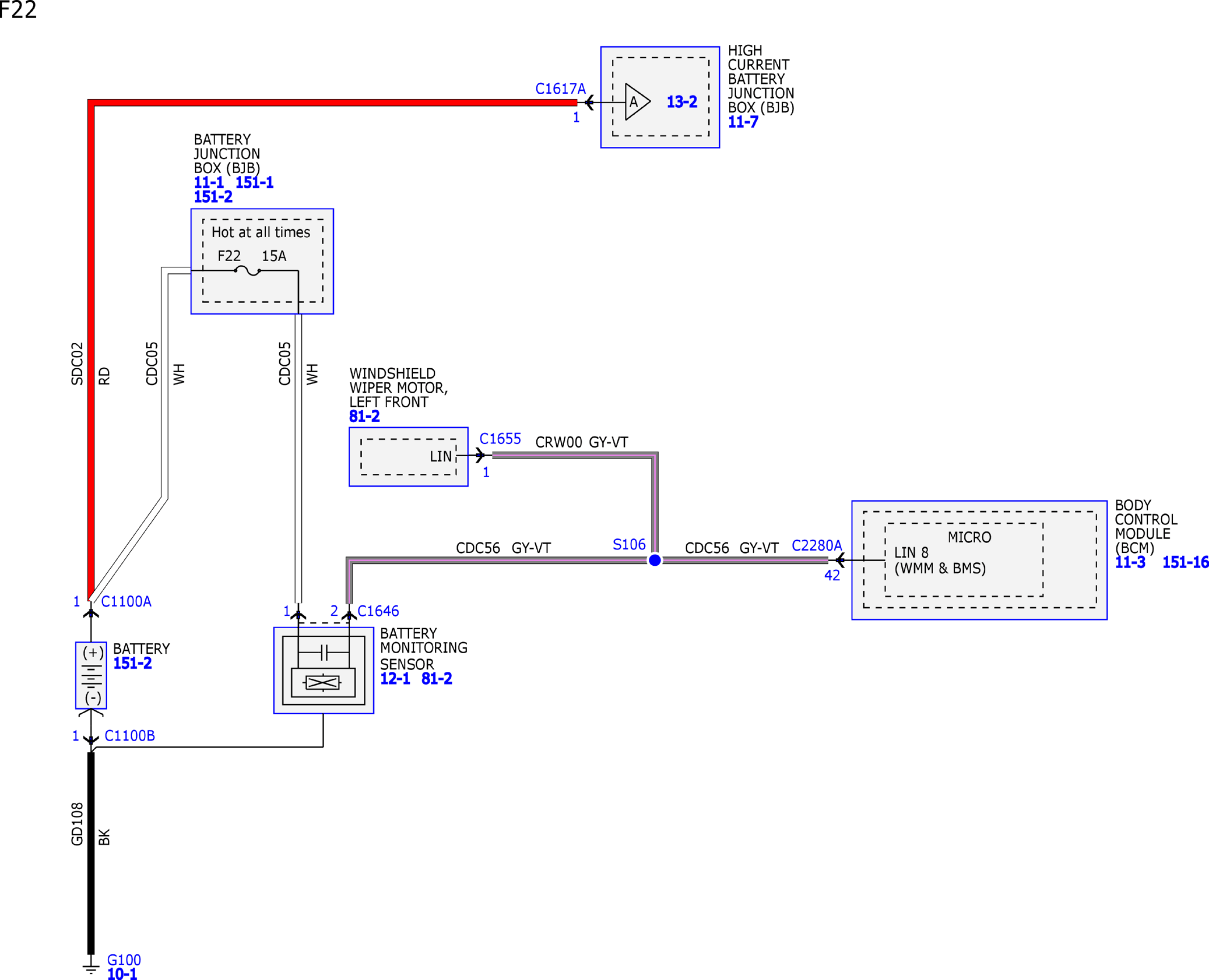

Fig 1: Power Distribution System Wiring Diagram (1 Of 35)

GFDW22740

Courtesy of FORD MOTOR COMPANY

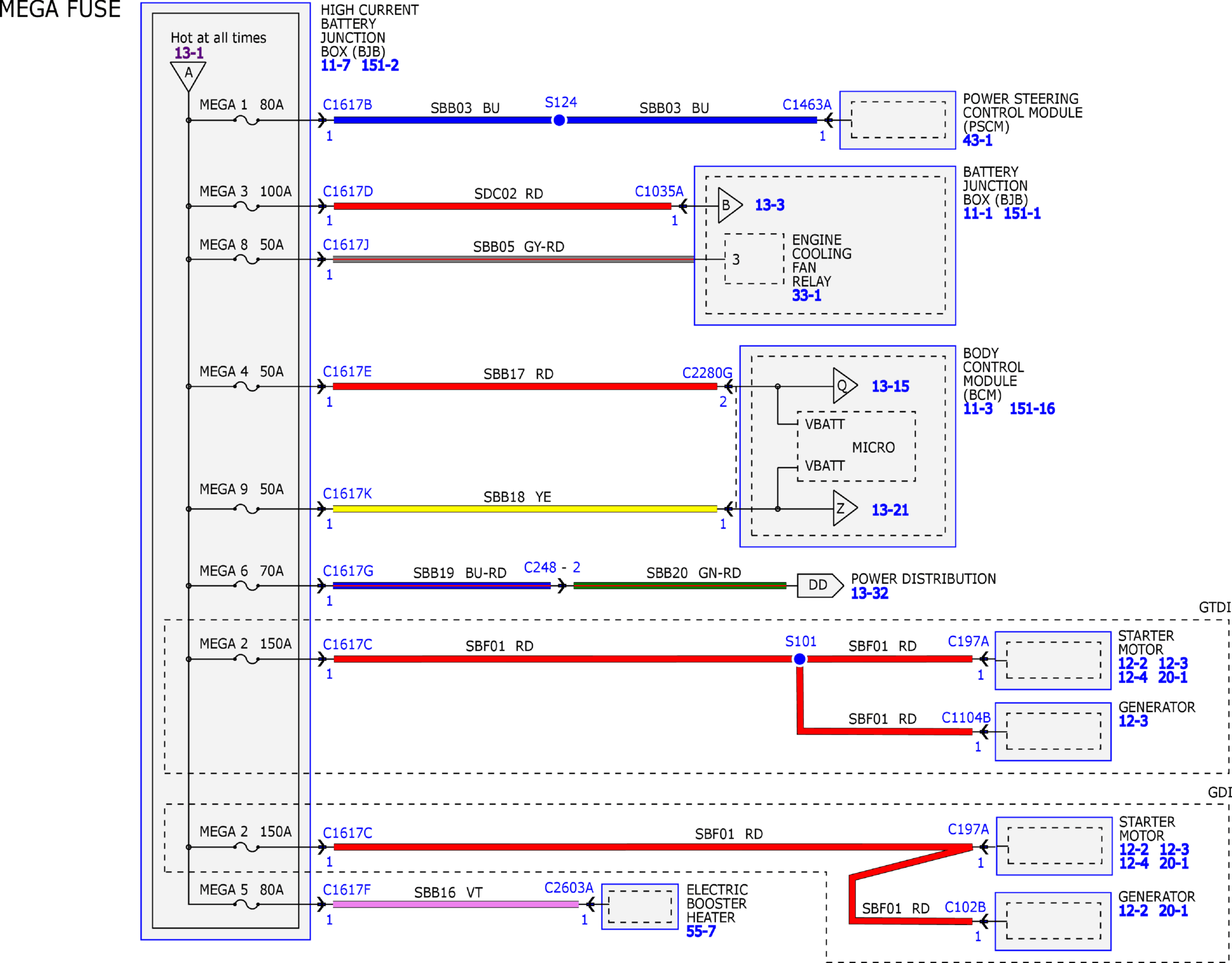

Fig 2: Power Distribution System Wiring Diagram (2 Of 35)

GFDW22741

Courtesy of FORD MOTOR COMPANY

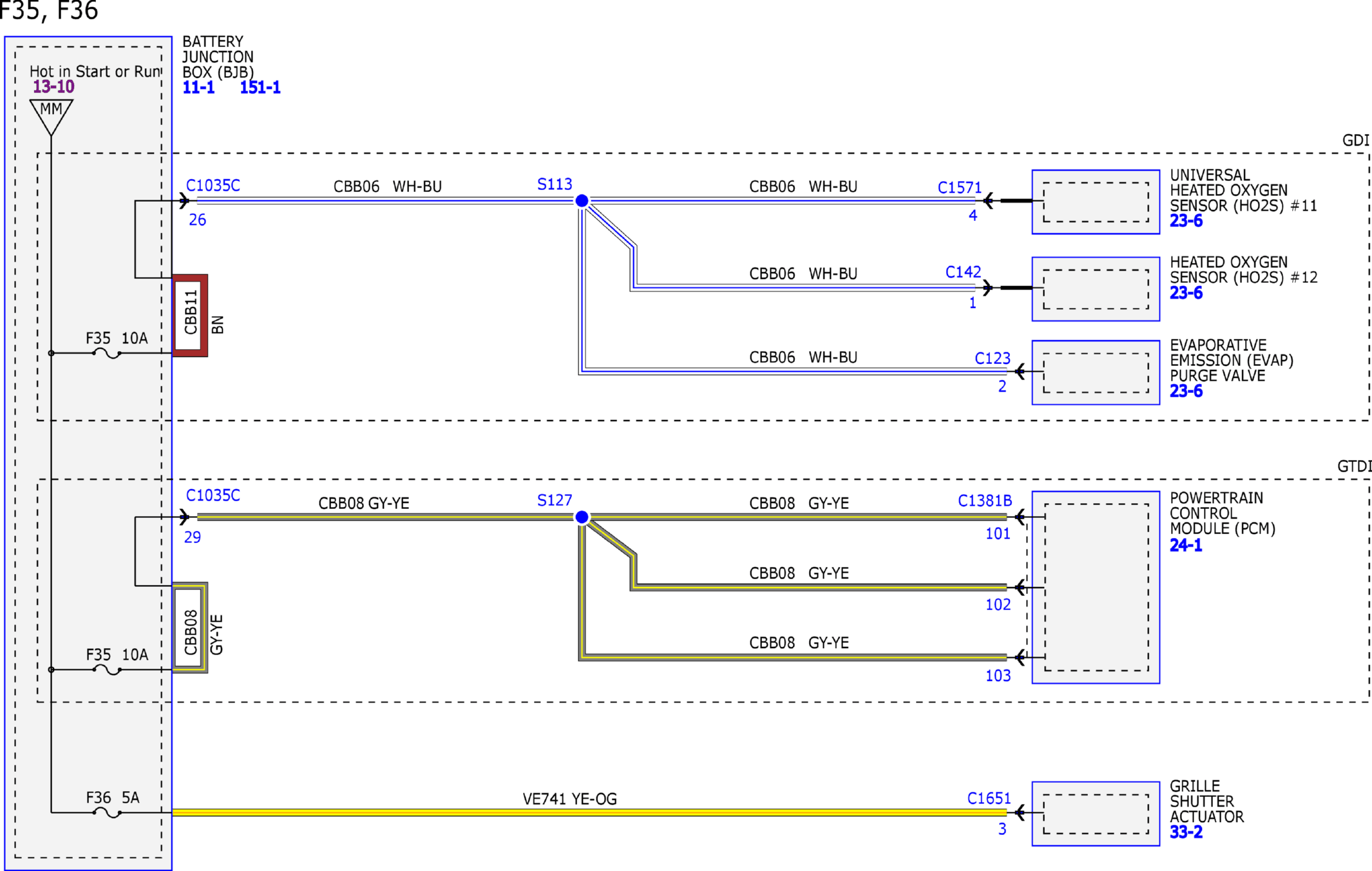

Fig 3: Power Distribution System Wiring Diagram (3 Of 35)

GFDW22742

Courtesy of FORD MOTOR COMPANY

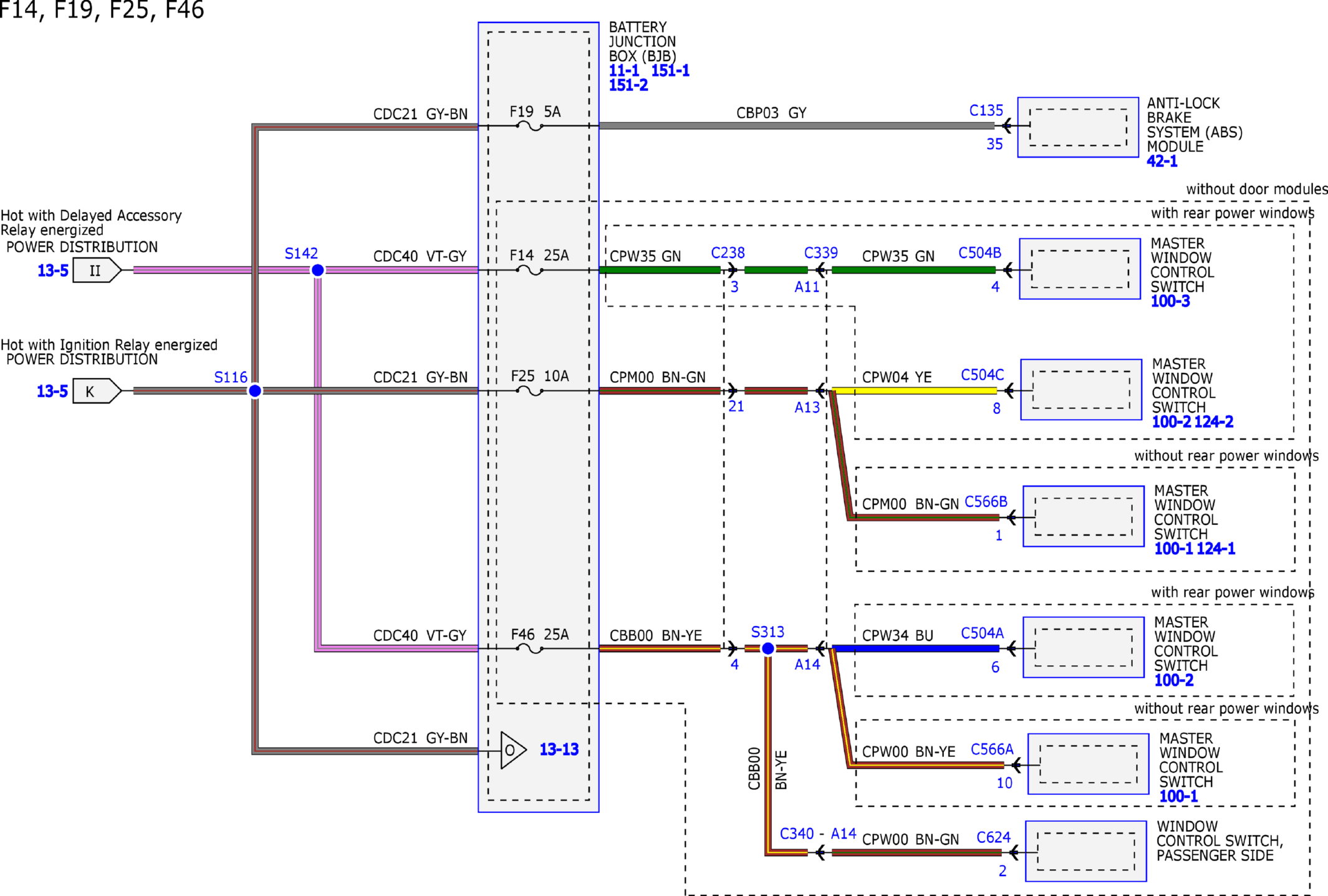

Fig 4: Power Distribution System Wiring Diagram (4 Of 35)

GFDW22743

Courtesy of FORD MOTOR COMPANY

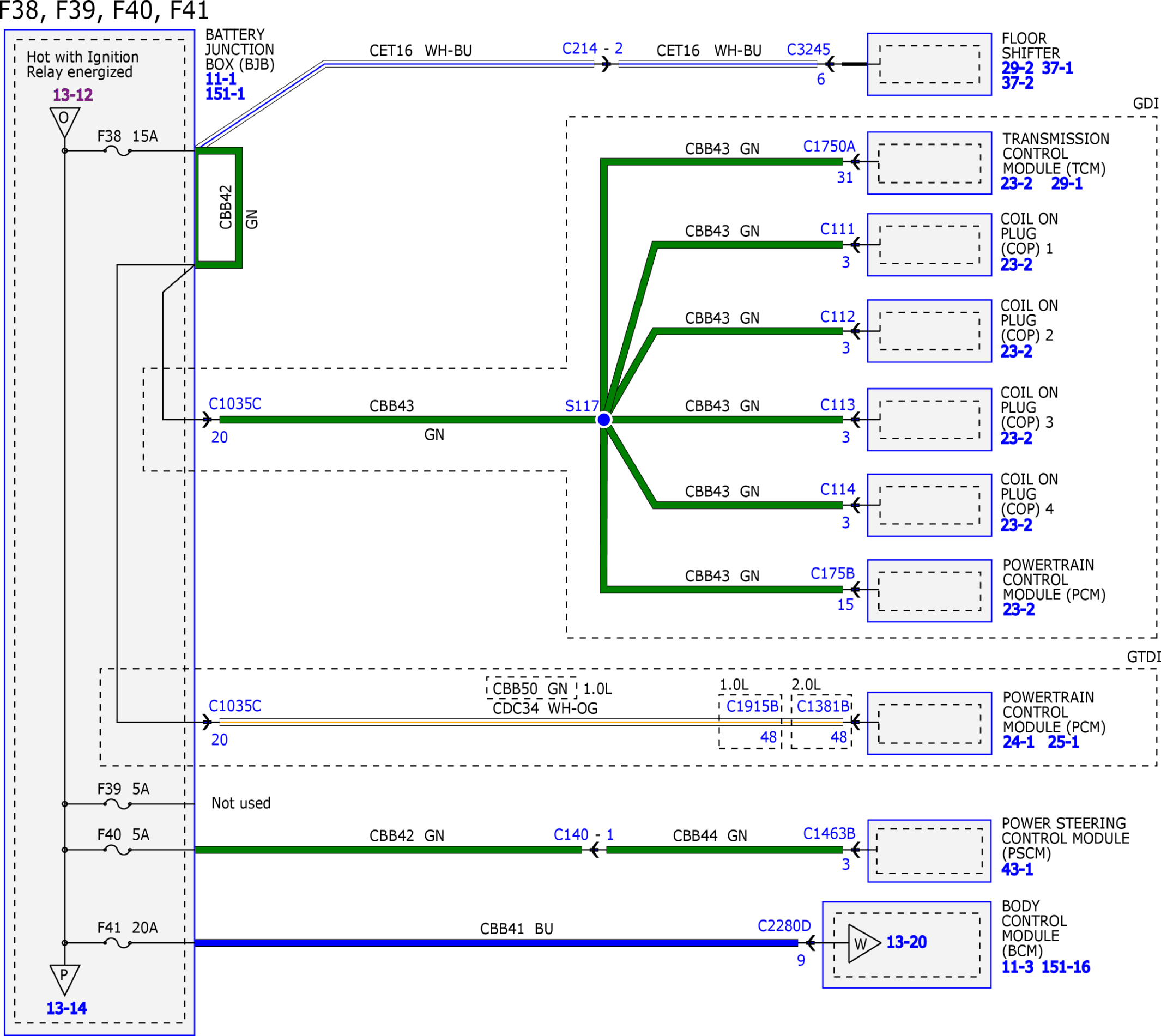

Fig 5: Power Distribution System Wiring Diagram (5 Of 35)

GFDW22744

Courtesy of FORD MOTOR COMPANY

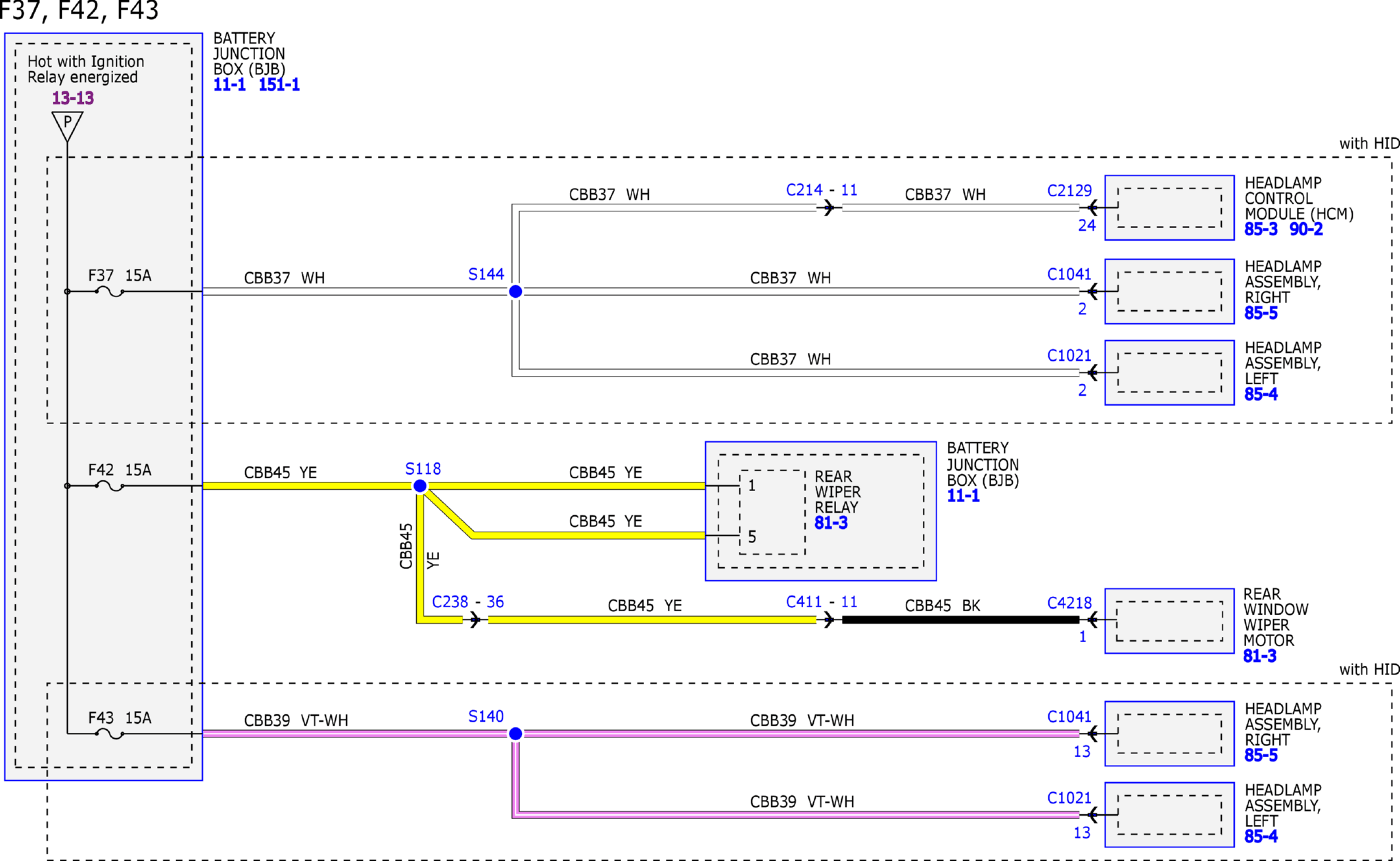

Fig 6: Power Distribution System Wiring Diagram (6 Of 35)

GFDW22745

Courtesy of FORD MOTOR COMPANY

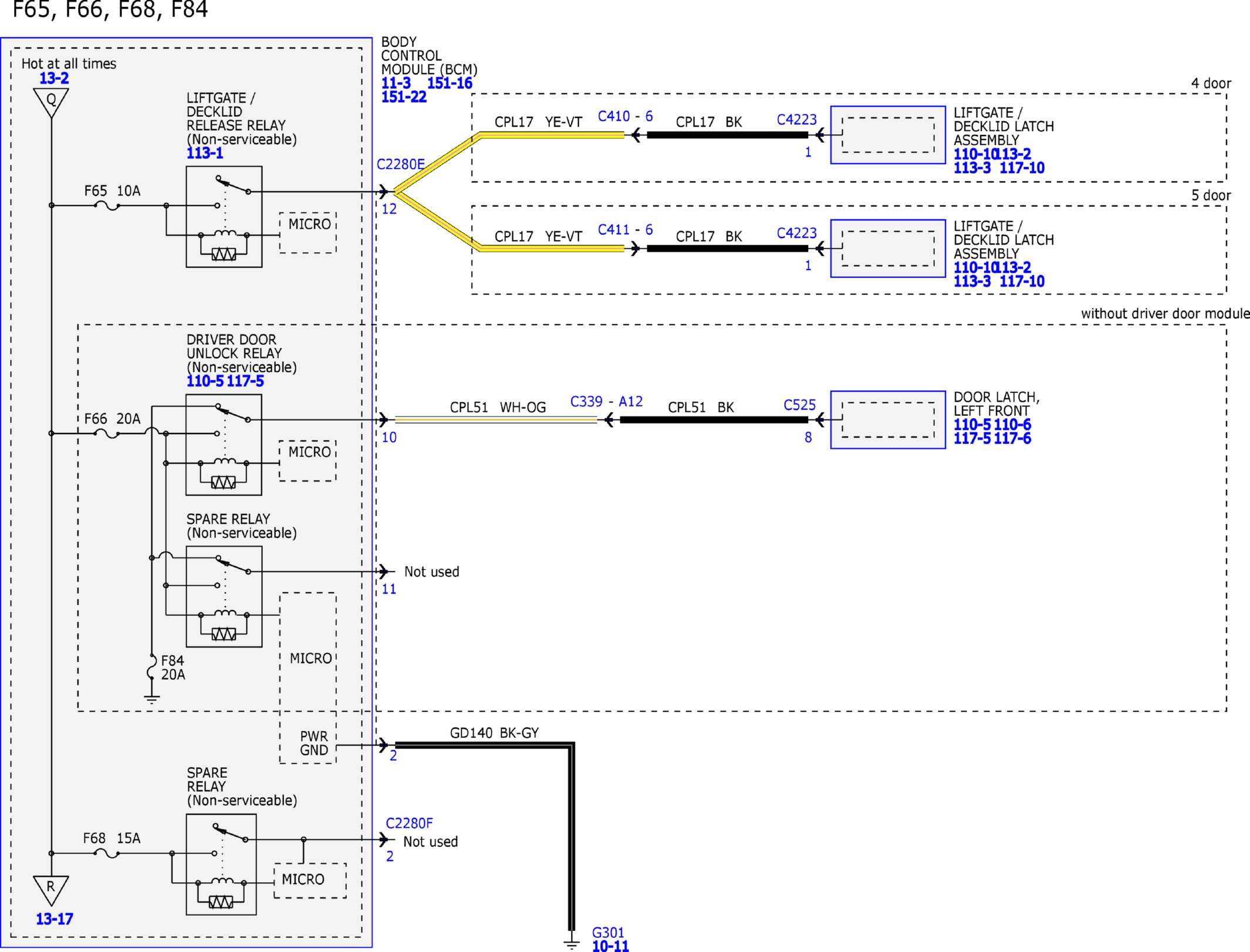

Fig 7: Power Distribution System Wiring Diagram (7 Of 35)

GFDW22746

Courtesy of FORD MOTOR COMPANY

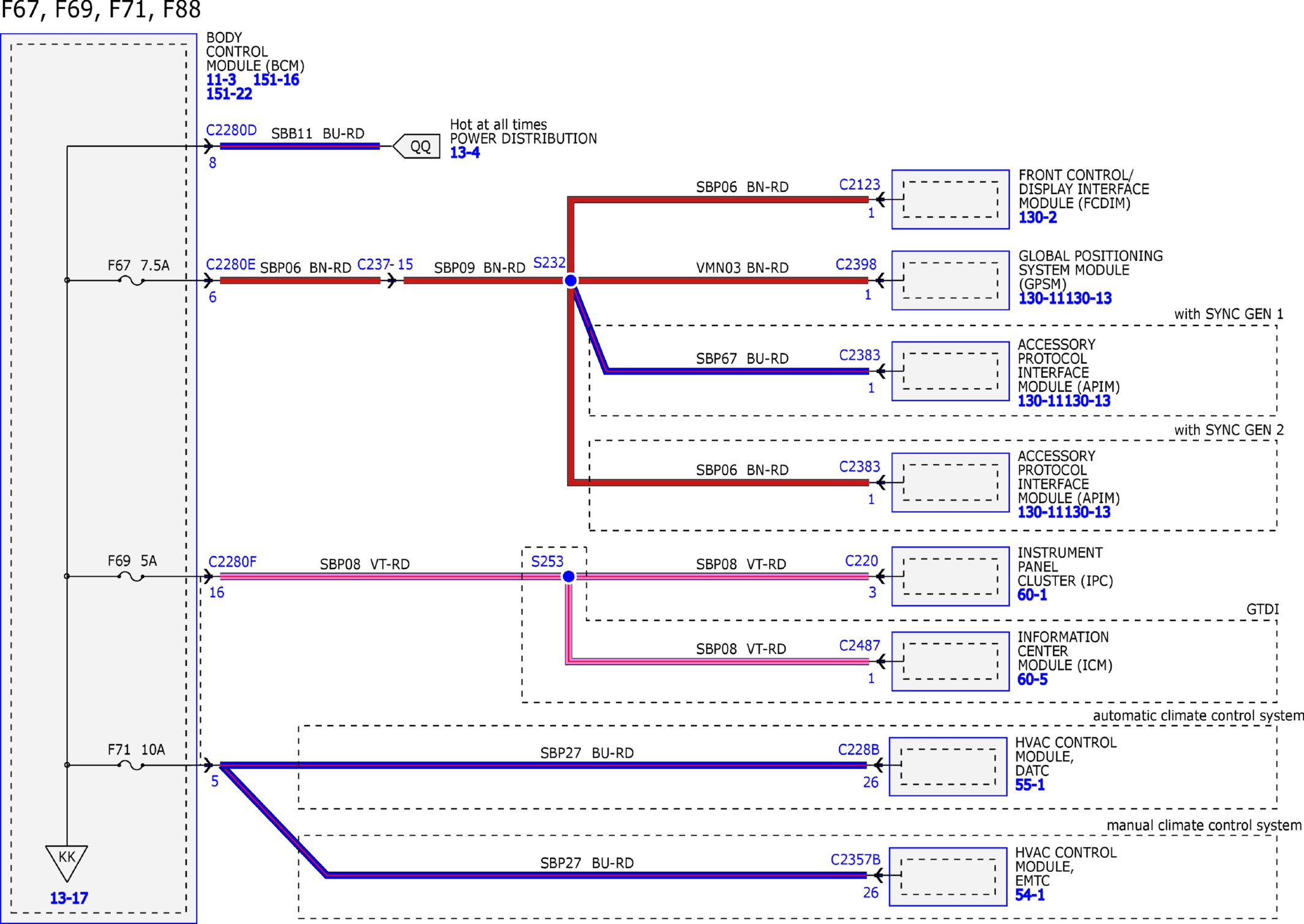

Fig 8: Power Distribution System Wiring Diagram (8 Of 35)

GFDW22747

Courtesy of FORD MOTOR COMPANY

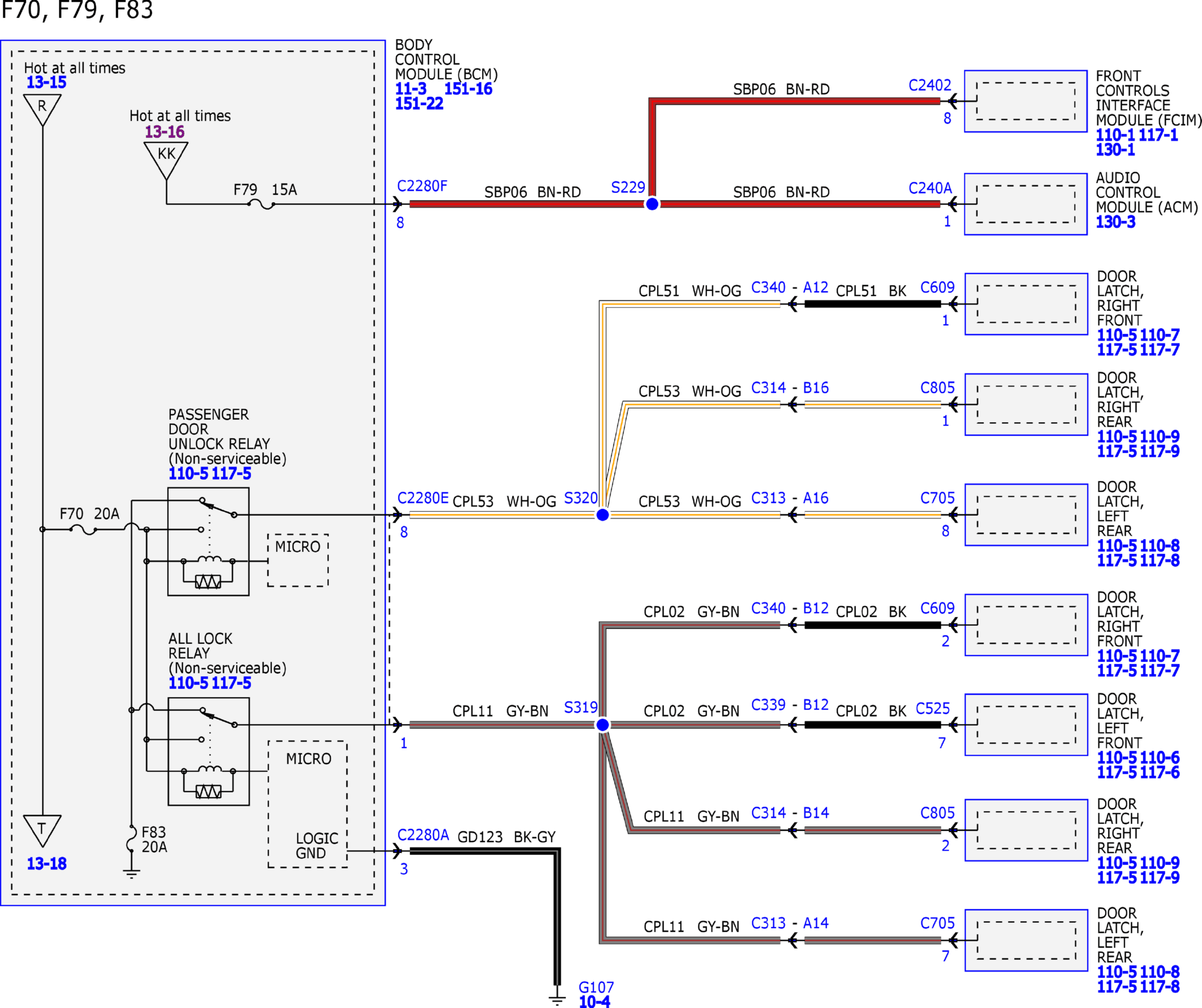

Fig 9: Power Distribution System Wiring Diagram (9 Of 35)

GFDW22748

Courtesy of FORD MOTOR COMPANY

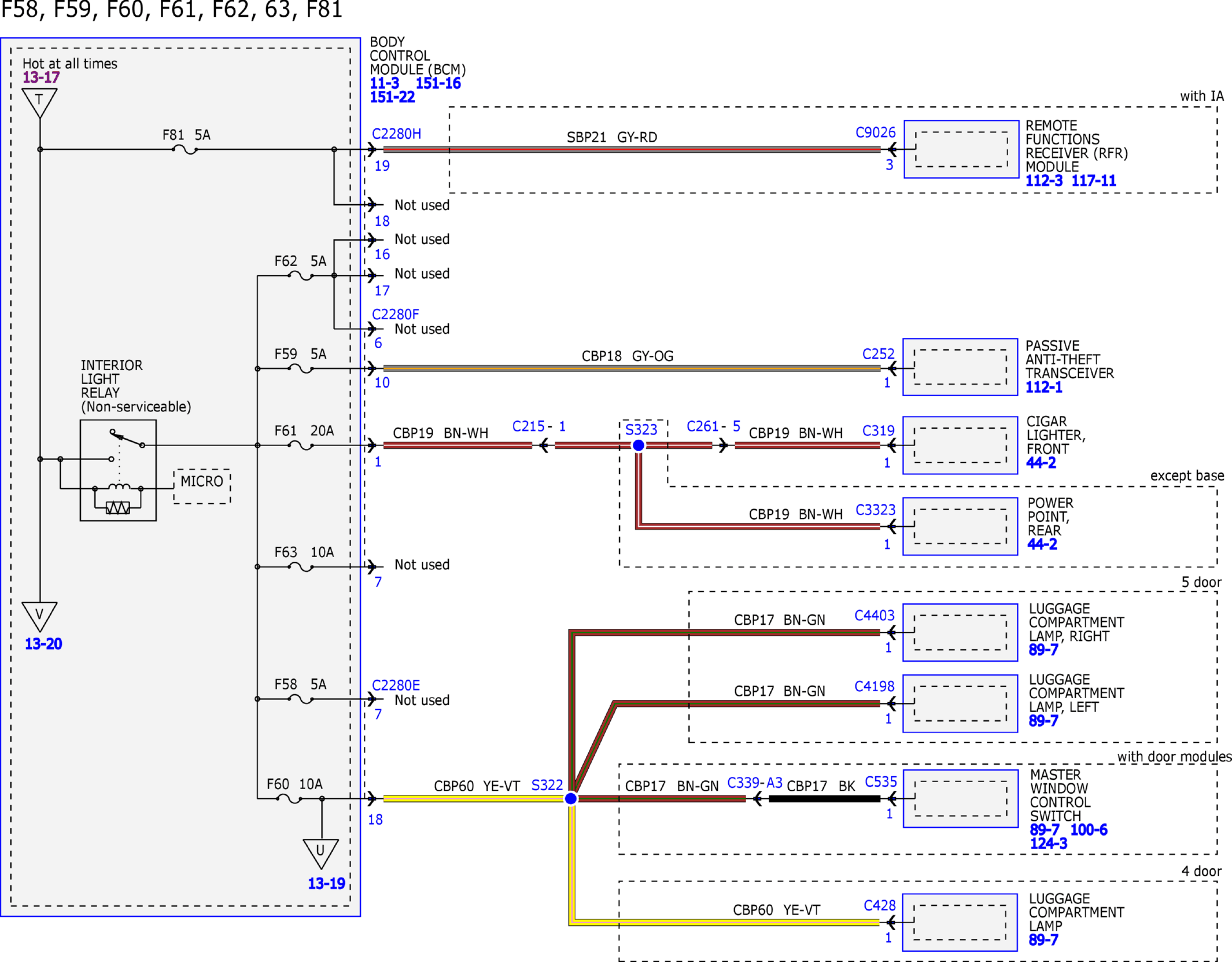

Fig 10: Power Distribution System Wiring Diagram (10 Of 35)

GFDW22749

Courtesy of FORD MOTOR COMPANY

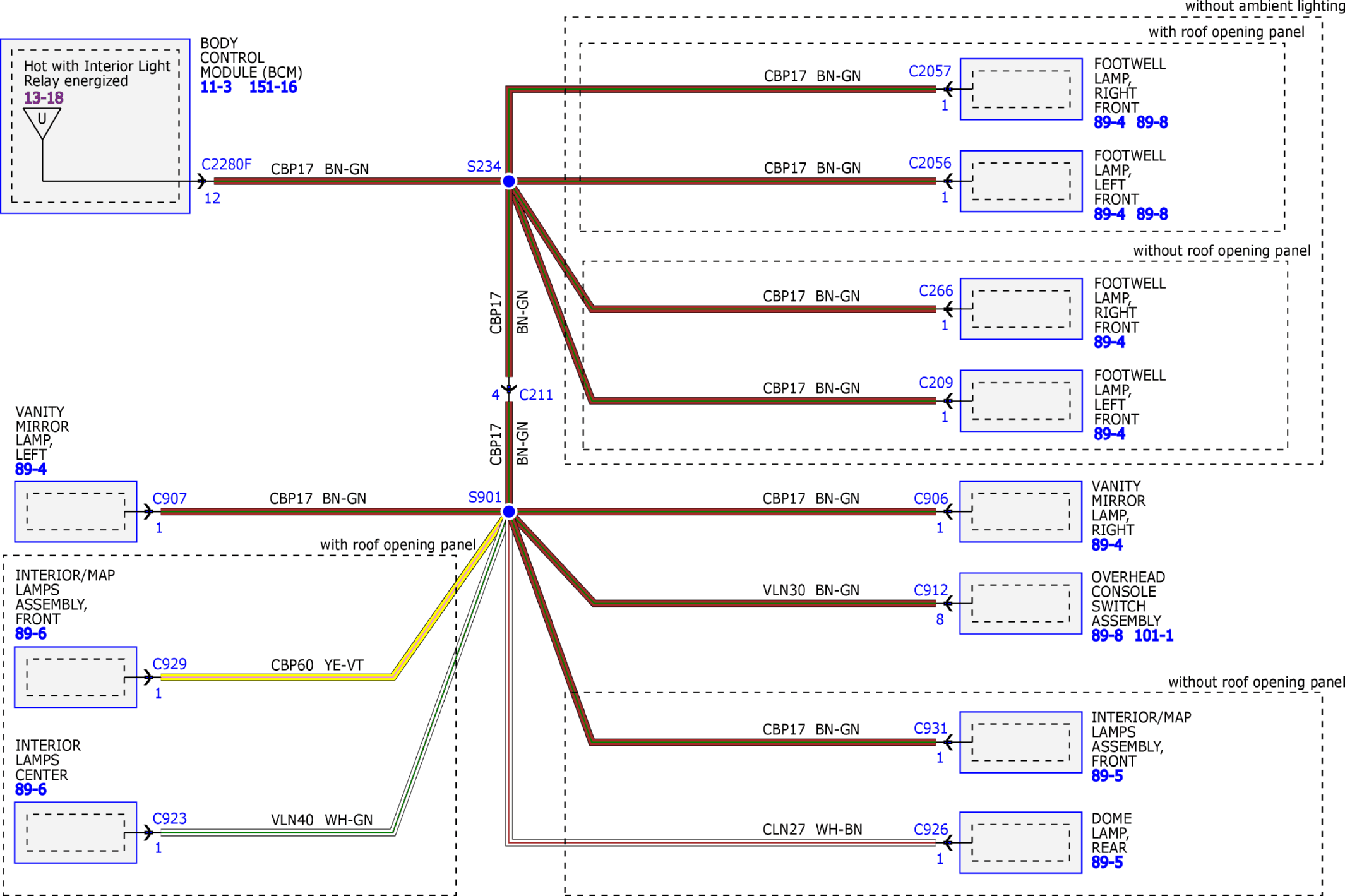

Fig 11: Power Distribution System Wiring Diagram (11 Of 35)

GFDW22750

Courtesy of FORD MOTOR COMPANY

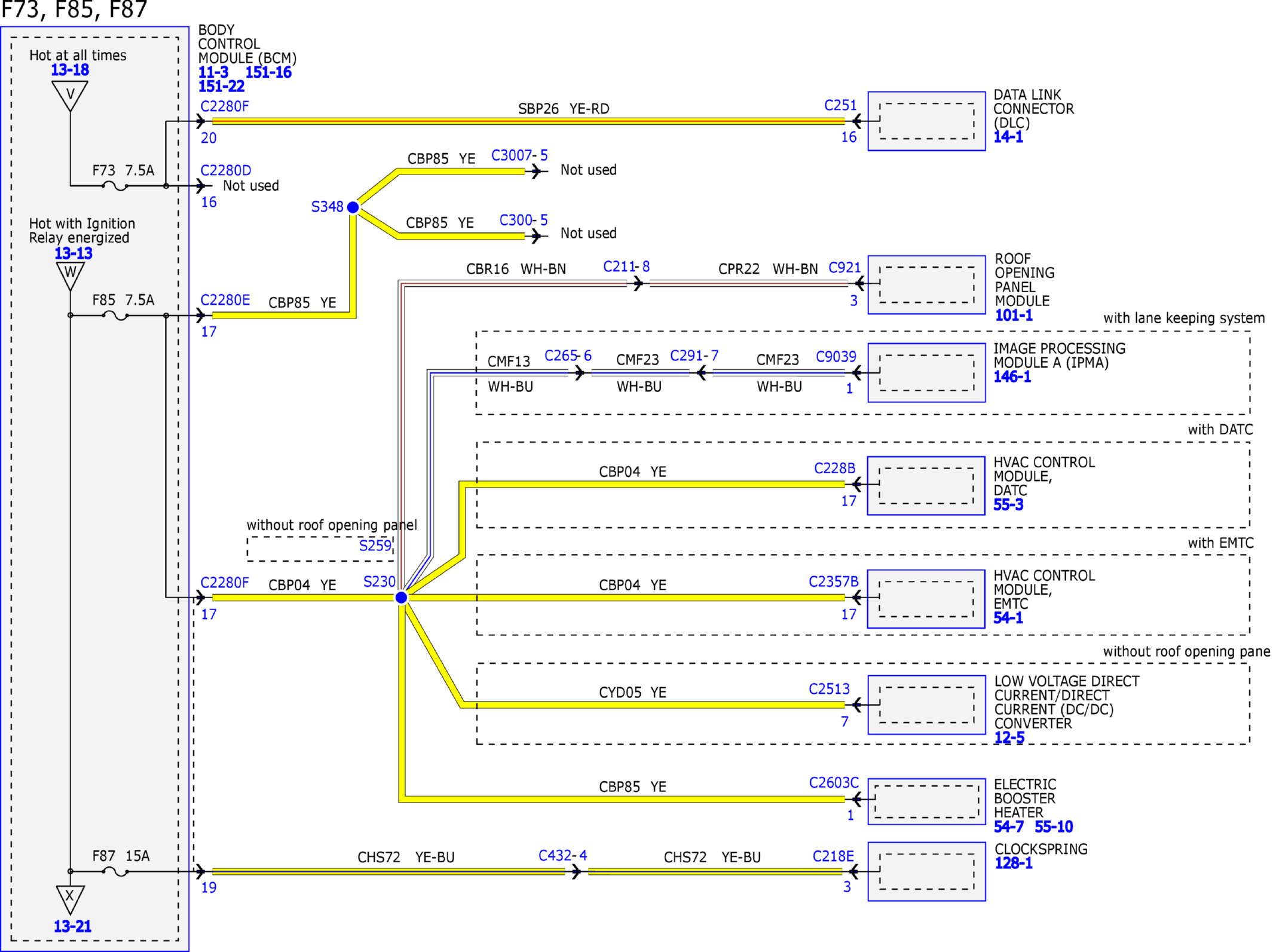

Fig 12: Power Distribution System Wiring Diagram (12 Of 35)

GFDW22751

Courtesy of FORD MOTOR COMPANY

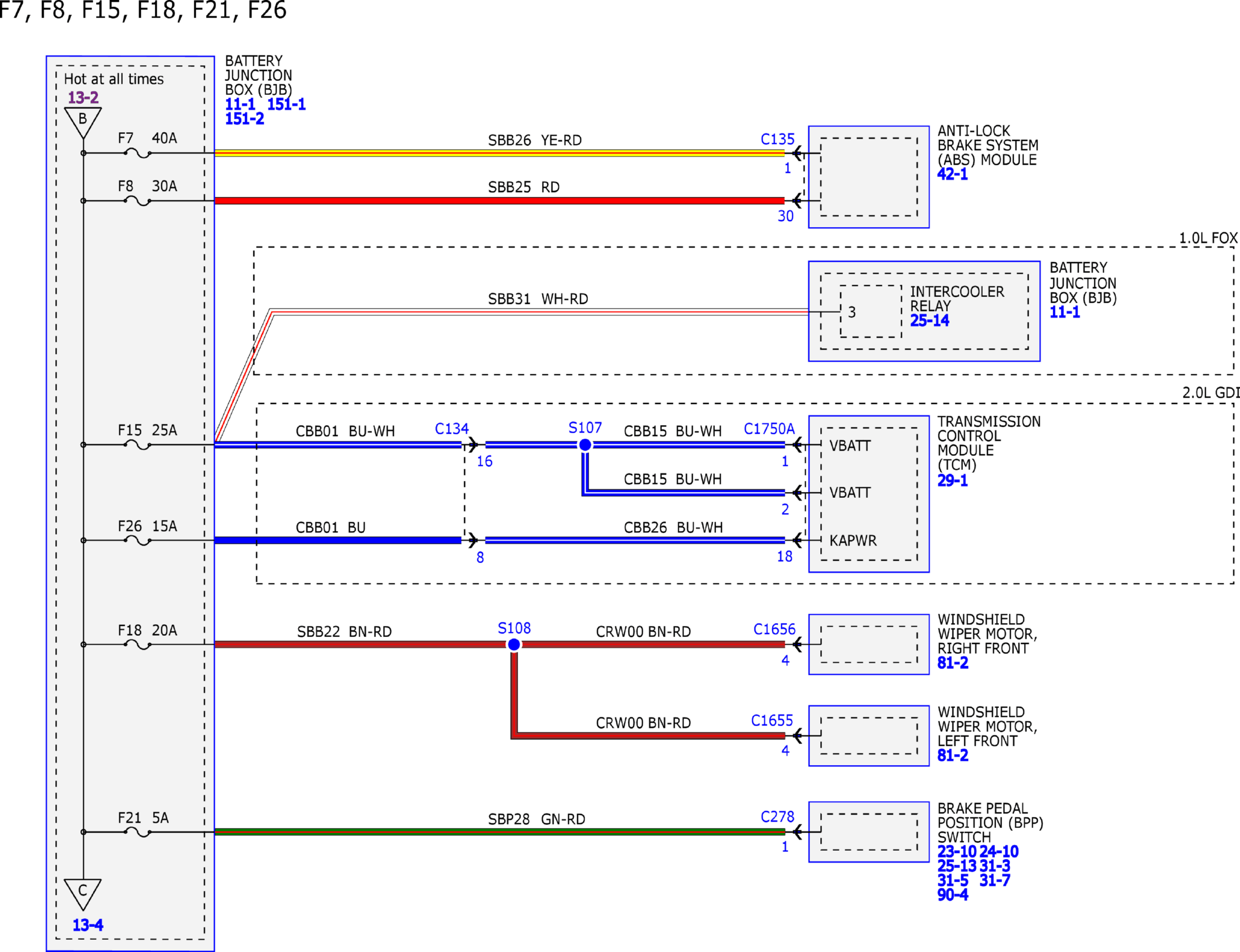

Fig 13: Power Distribution System Wiring Diagram (13 Of 35)

GFDW22752

Courtesy of FORD MOTOR COMPANY

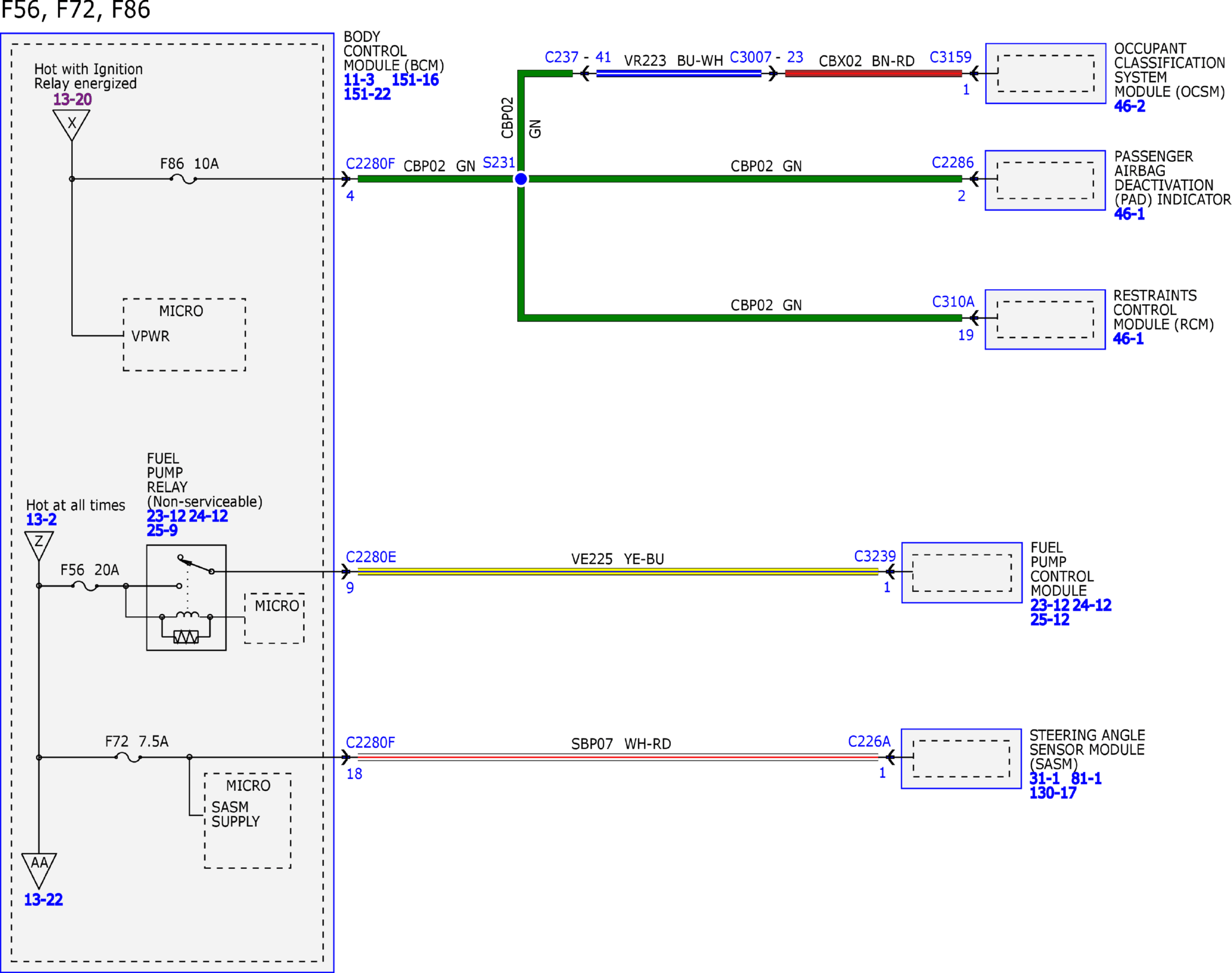

Fig 14: Power Distribution System Wiring Diagram (14 Of 35)

GFDW22753

Courtesy of FORD MOTOR COMPANY

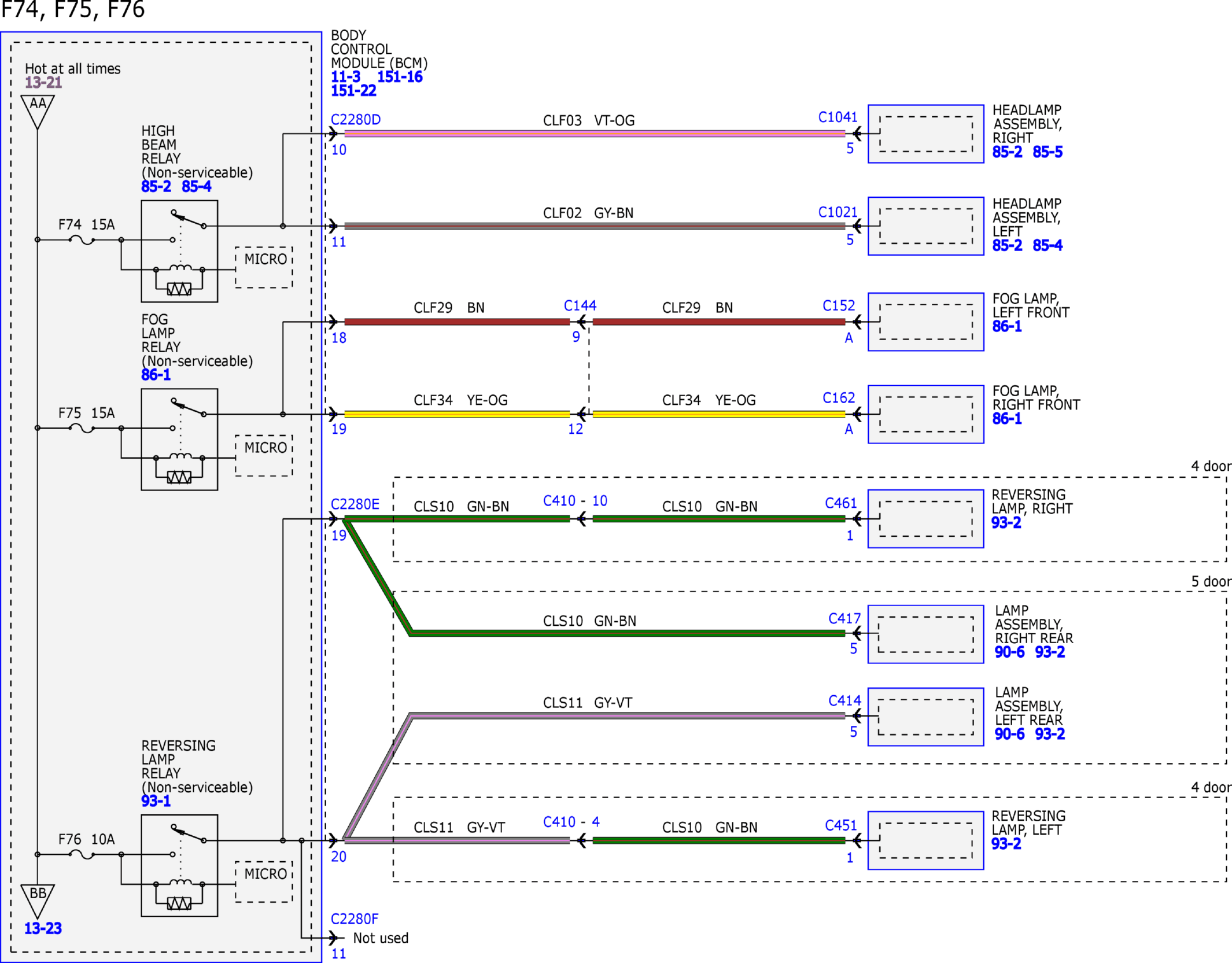

Fig 15: Power Distribution System Wiring Diagram (15 Of 35)

GFDW22754

Courtesy of FORD MOTOR COMPANY

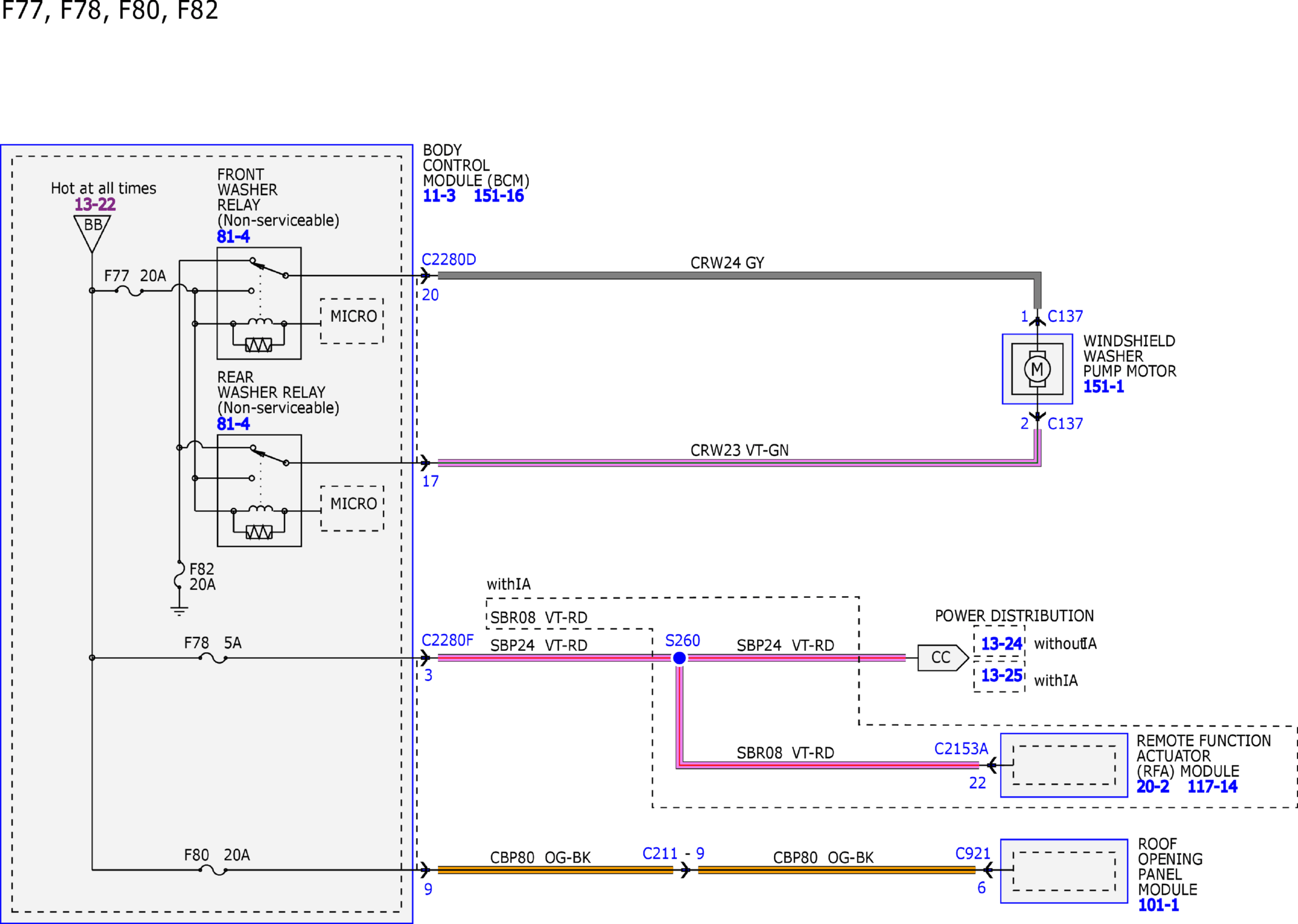

Fig 16: Power Distribution System Wiring Diagram (16 Of 35)

GFDW22755

Courtesy of FORD MOTOR COMPANY

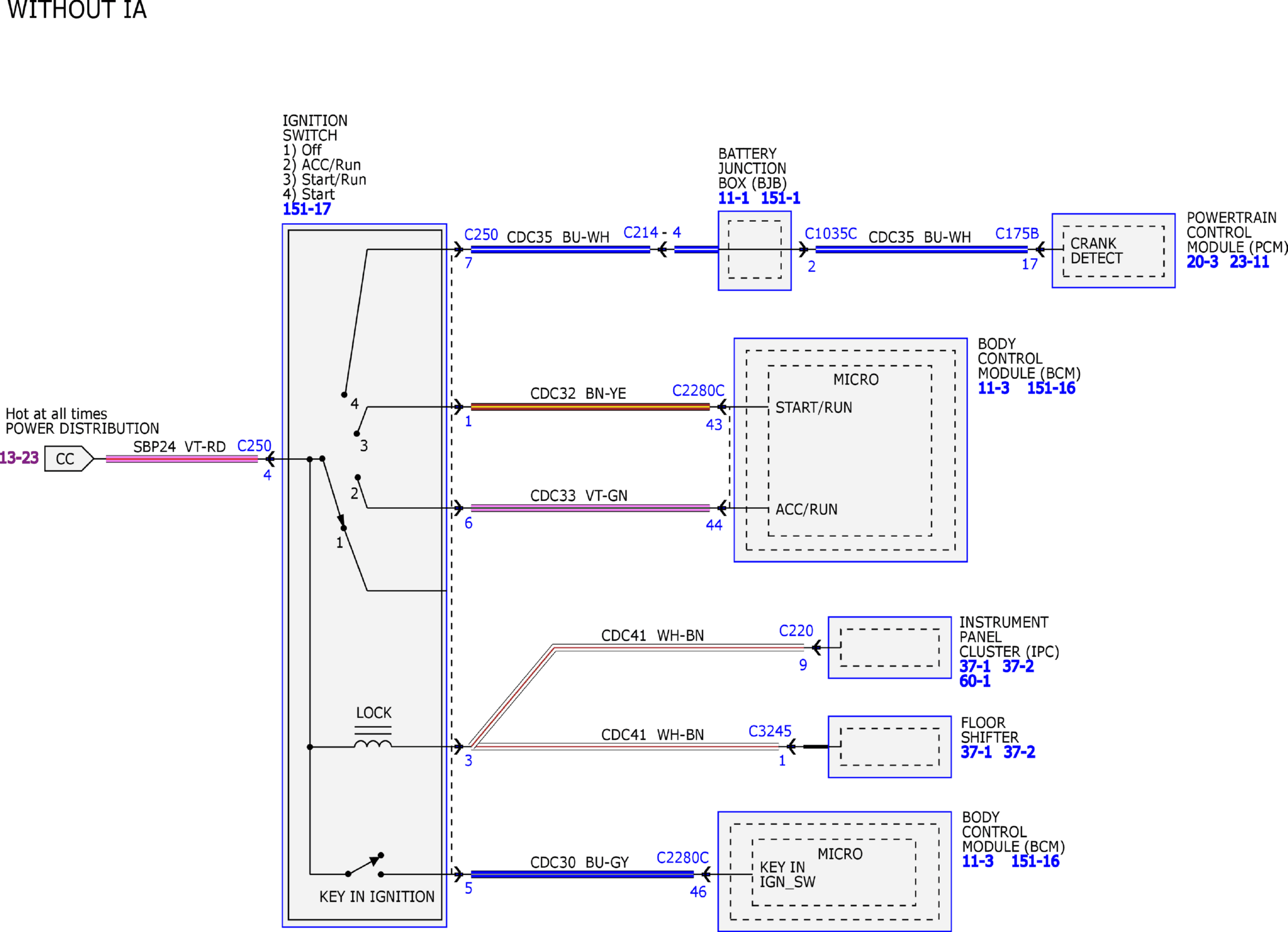

Fig 17: Power Distribution System Wiring Diagram (17 Of 35)

GFDW22756

Courtesy of FORD MOTOR COMPANY

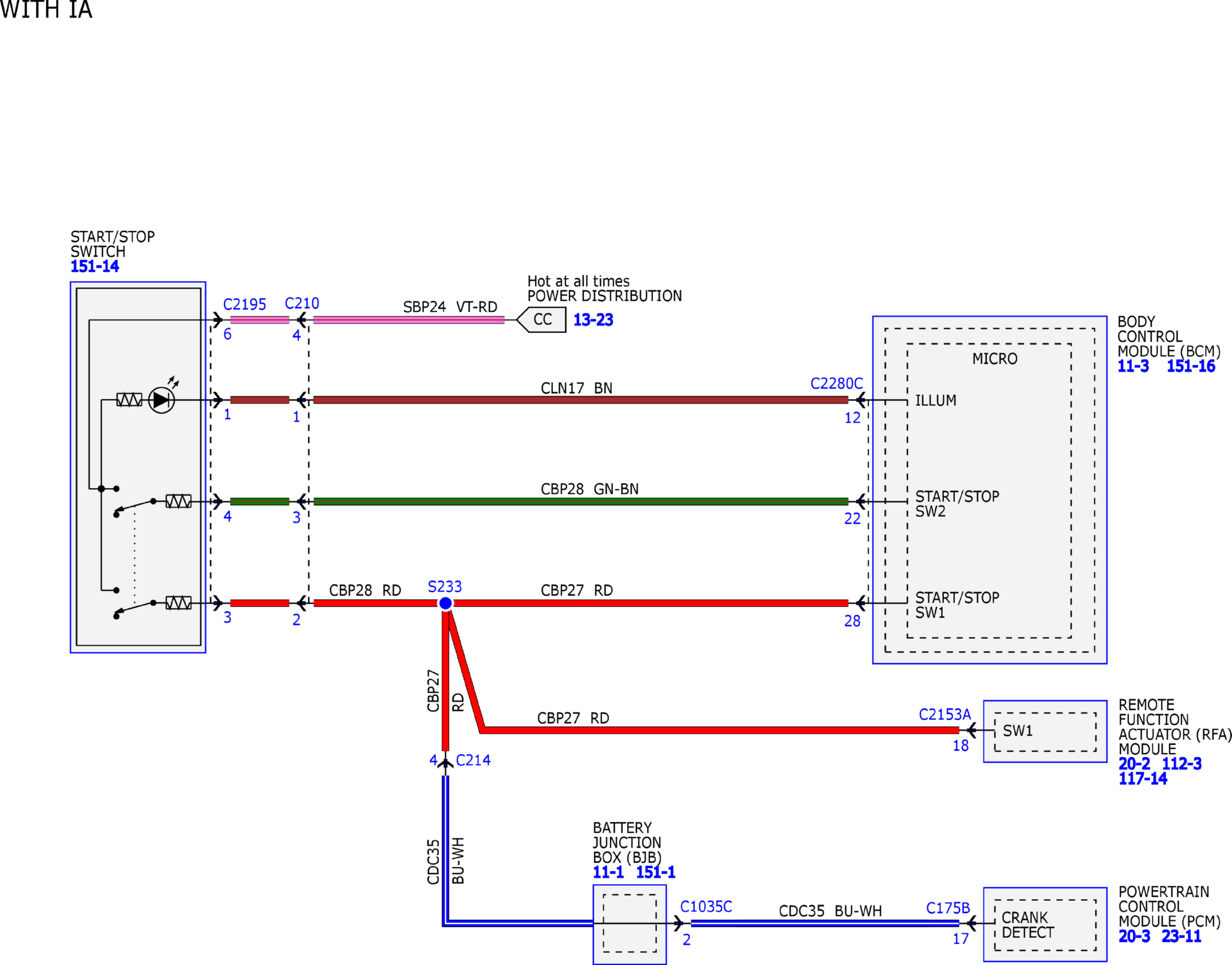

Fig 18: Power Distribution System Wiring Diagram (18 Of 35)

GFDW22757

Courtesy of FORD MOTOR COMPANY

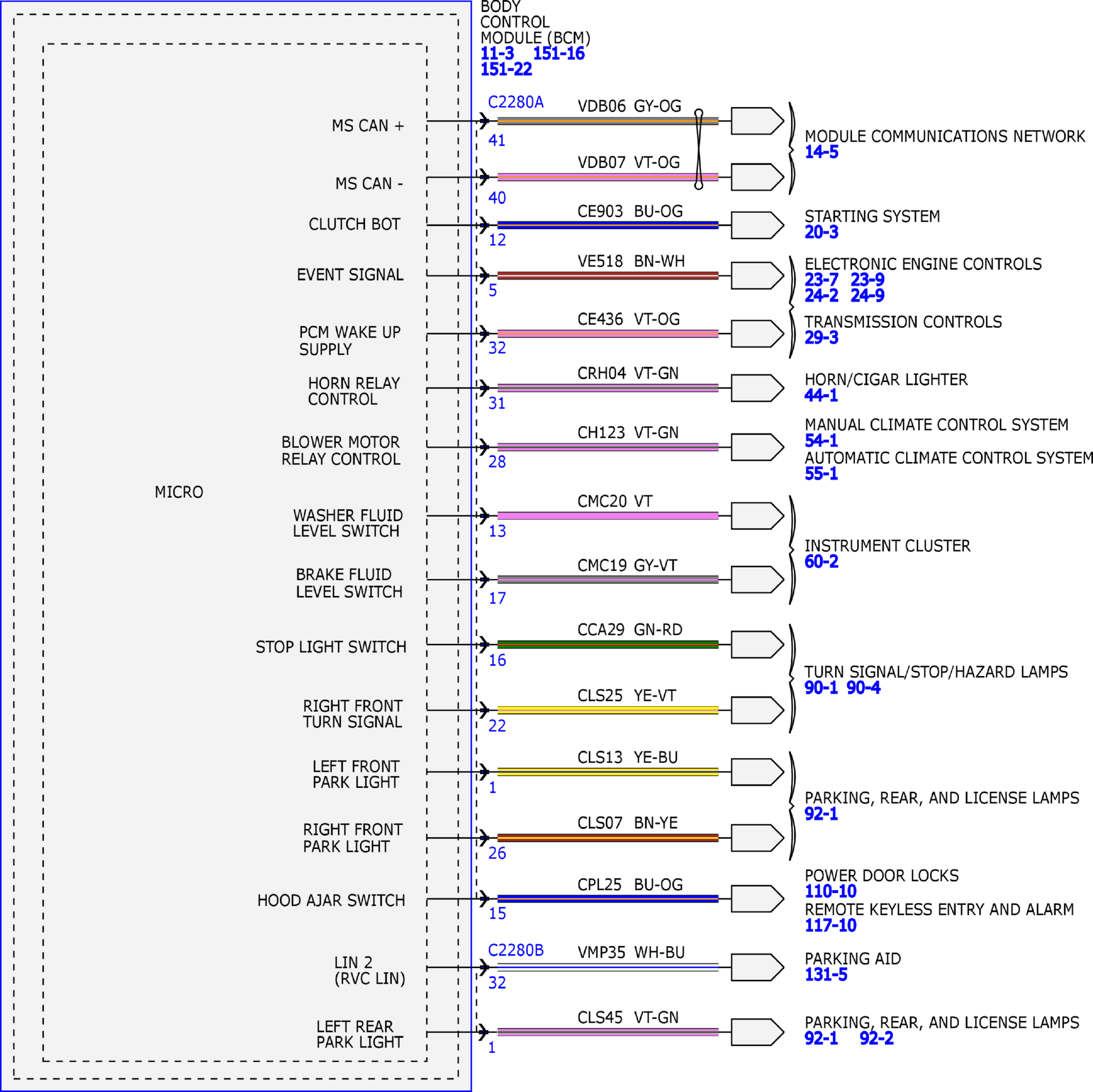

Fig 19: Power Distribution System Wiring Diagram (19 Of 35)

GFDW22758

Courtesy of FORD MOTOR COMPANY

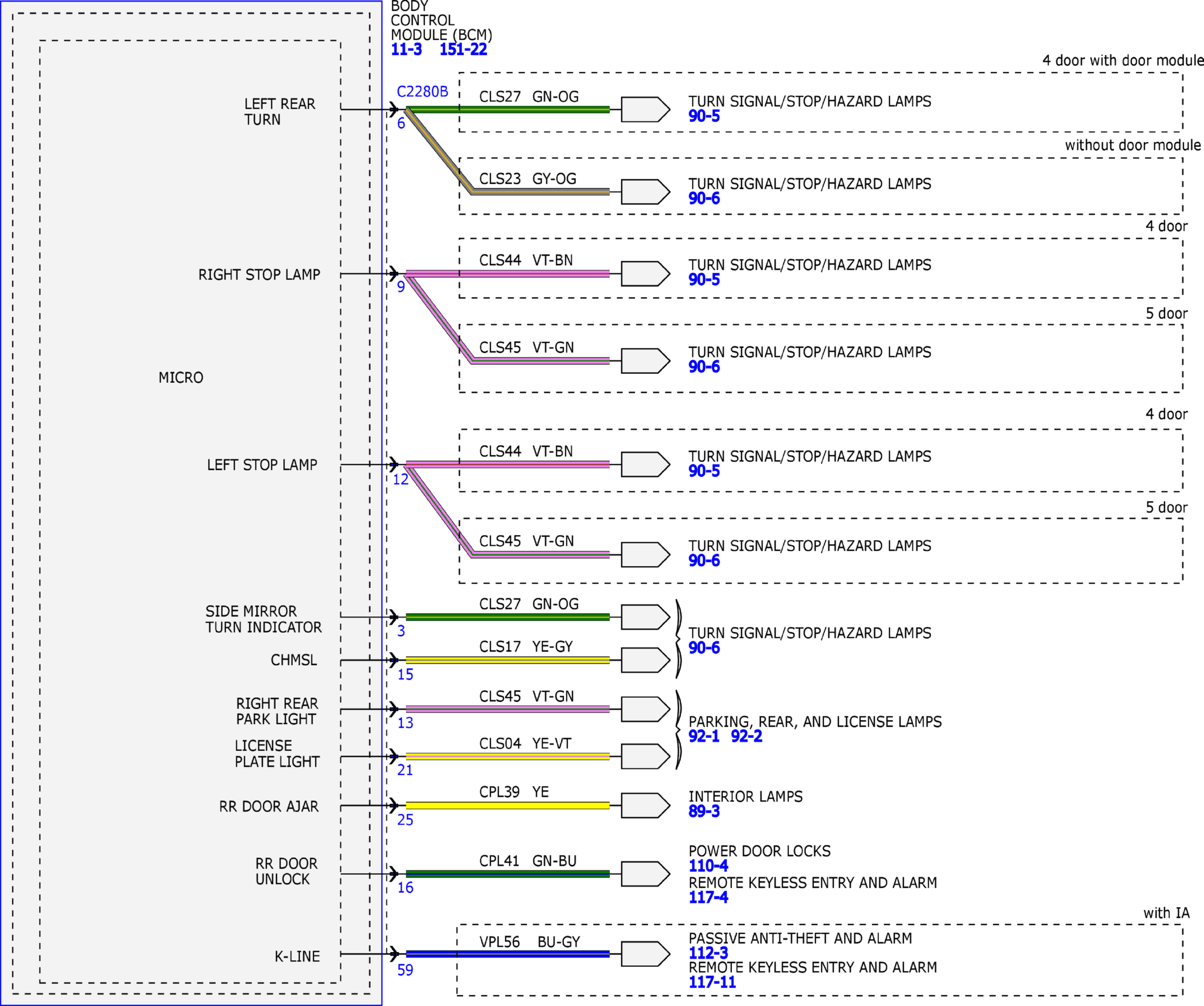

Fig 20: Power Distribution System Wiring Diagram (20 Of 35)

GFDW22759

Courtesy of FORD MOTOR COMPANY

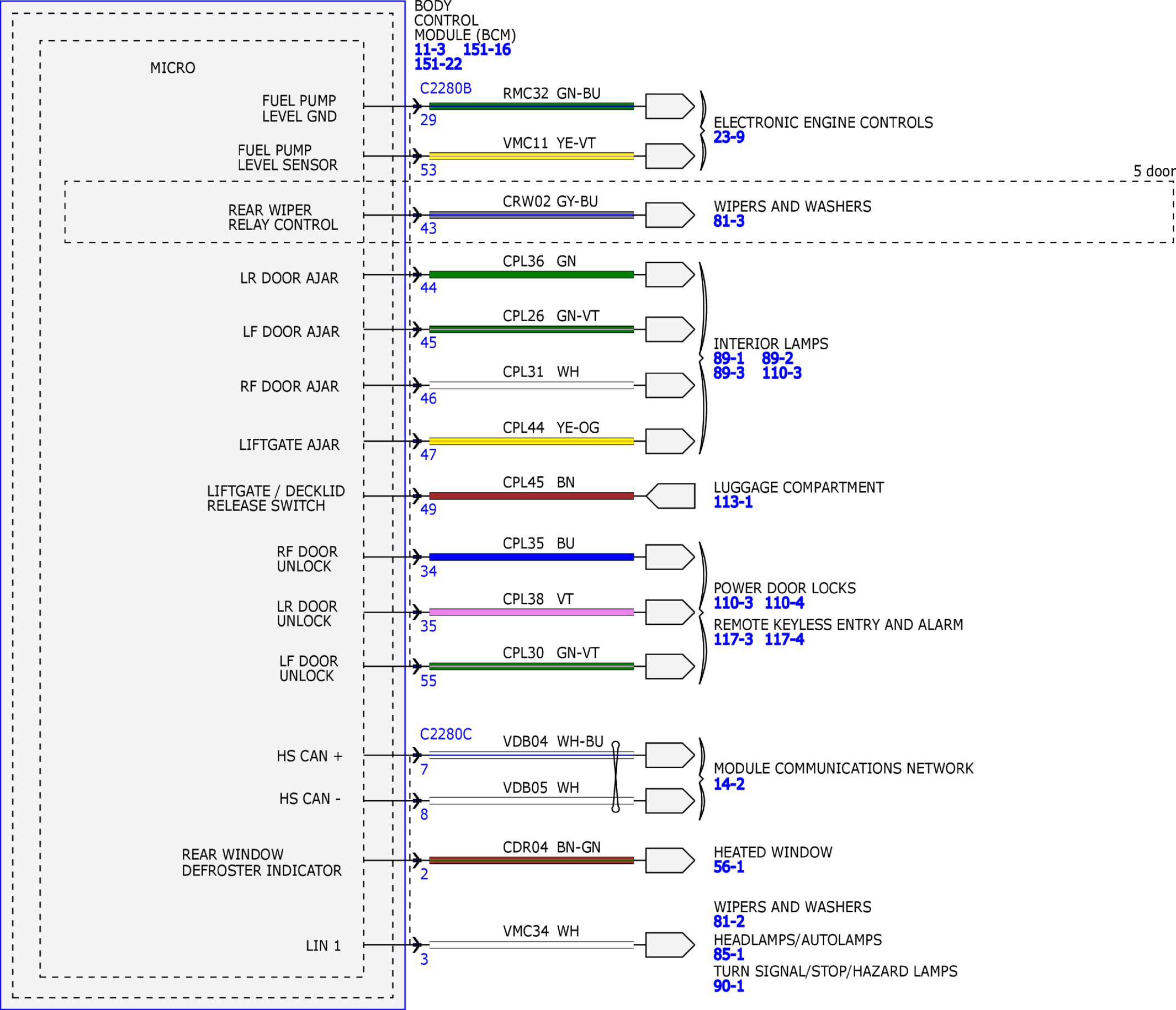

Fig 21: Power Distribution System Wiring Diagram (21 Of 35)

GFDW22760

Courtesy of FORD MOTOR COMPANY

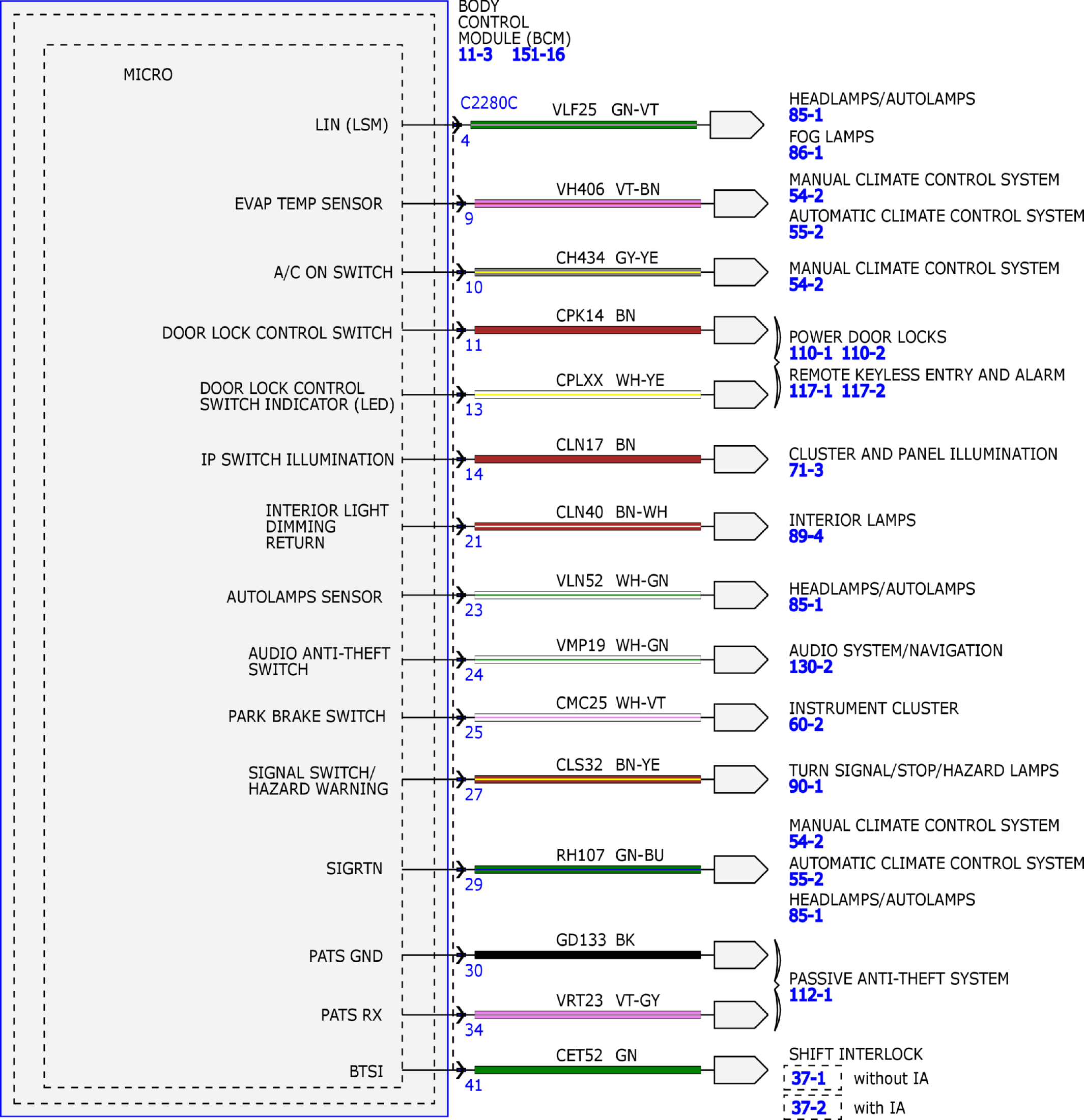

Fig 22: Power Distribution System Wiring Diagram (22 Of 35)

GFDW22761

Courtesy of FORD MOTOR COMPANY

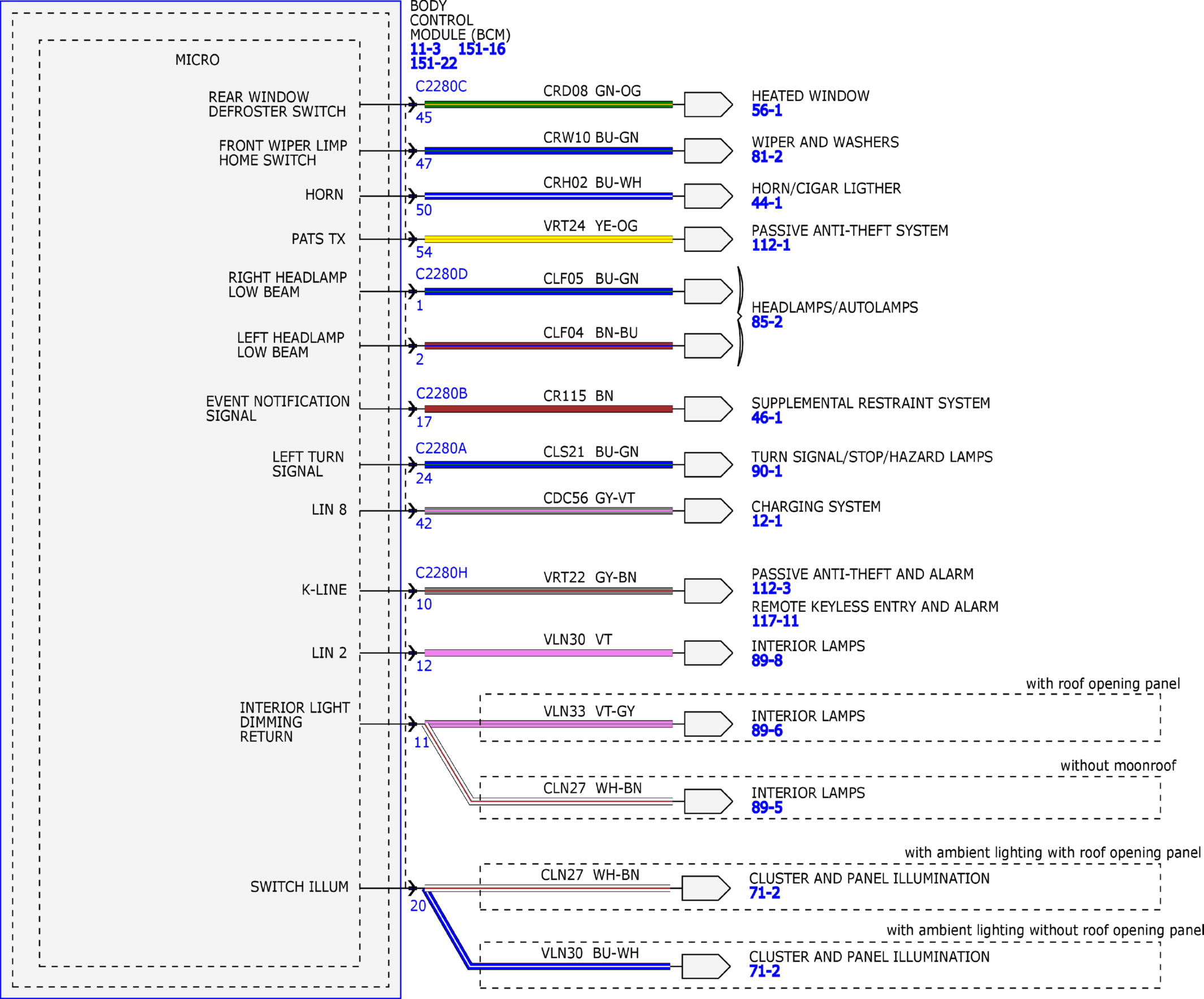

Fig 23: Power Distribution System Wiring Diagram (23 Of 35)

GFDW22762

Courtesy of FORD MOTOR COMPANY

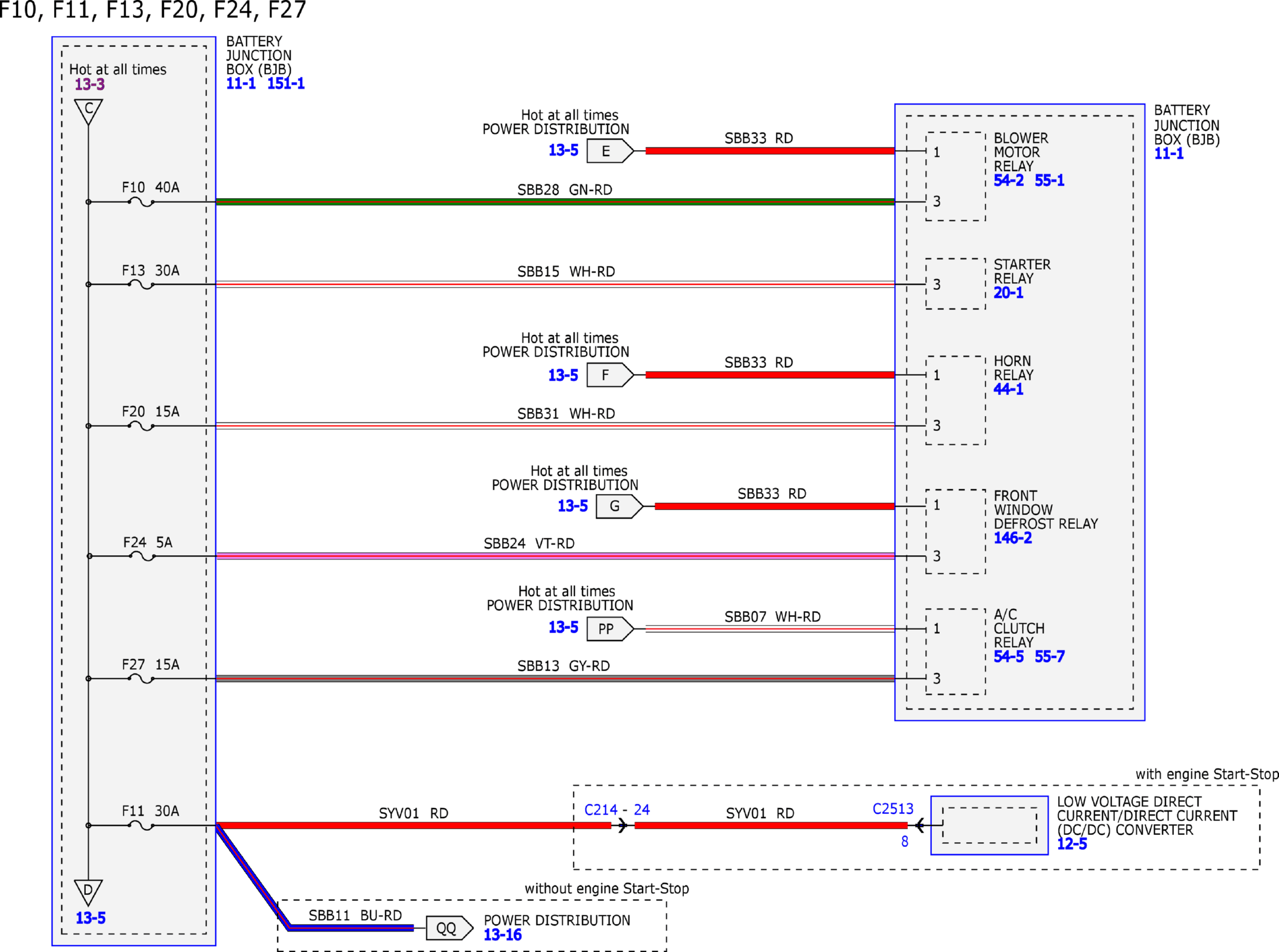

Fig 24: Power Distribution System Wiring Diagram (24 Of 35)

GFDW22763

Courtesy of FORD MOTOR COMPANY

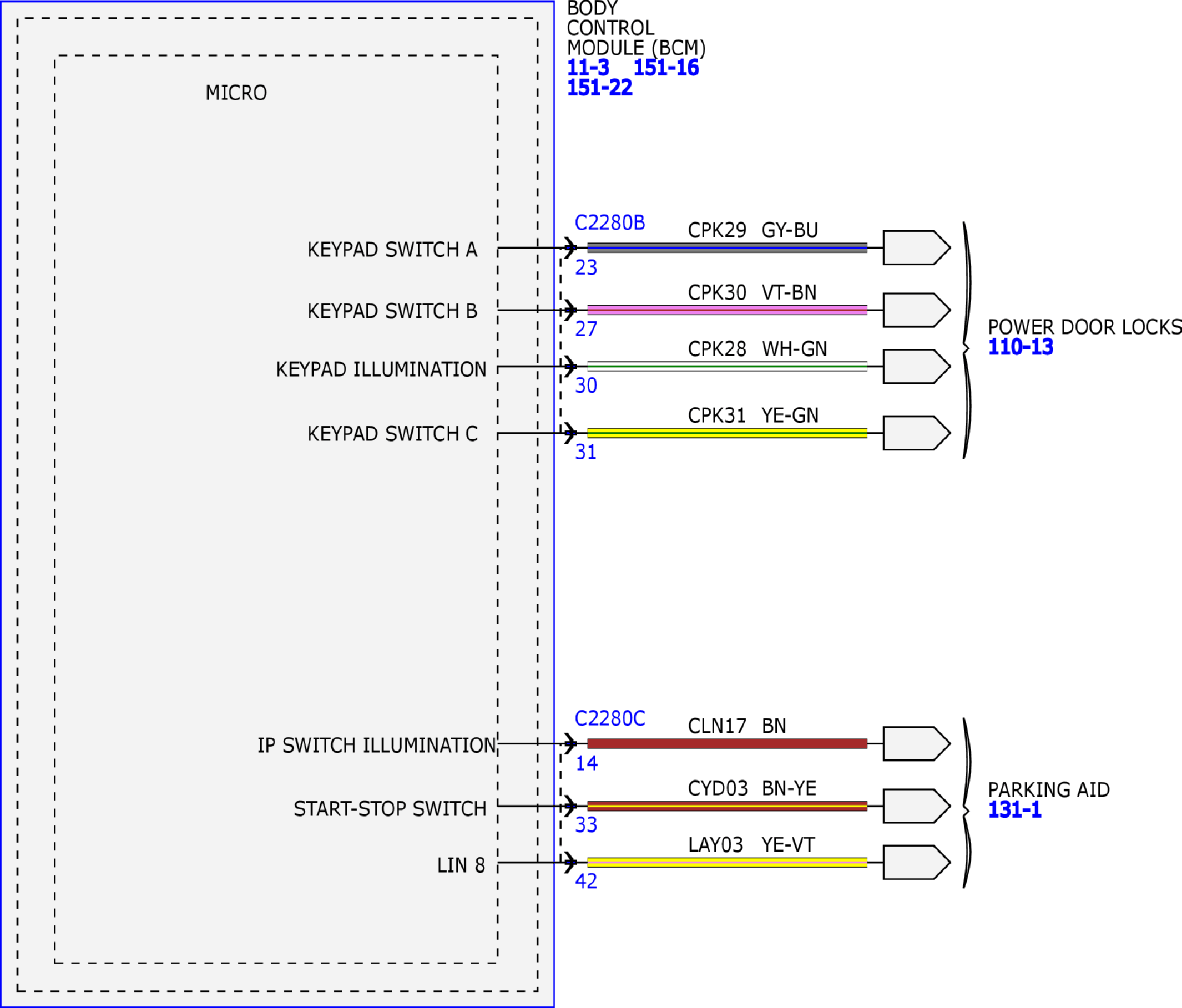

Fig 25: Power Distribution System Wiring Diagram (25 Of 35)

GFDW22764

Courtesy of FORD MOTOR COMPANY

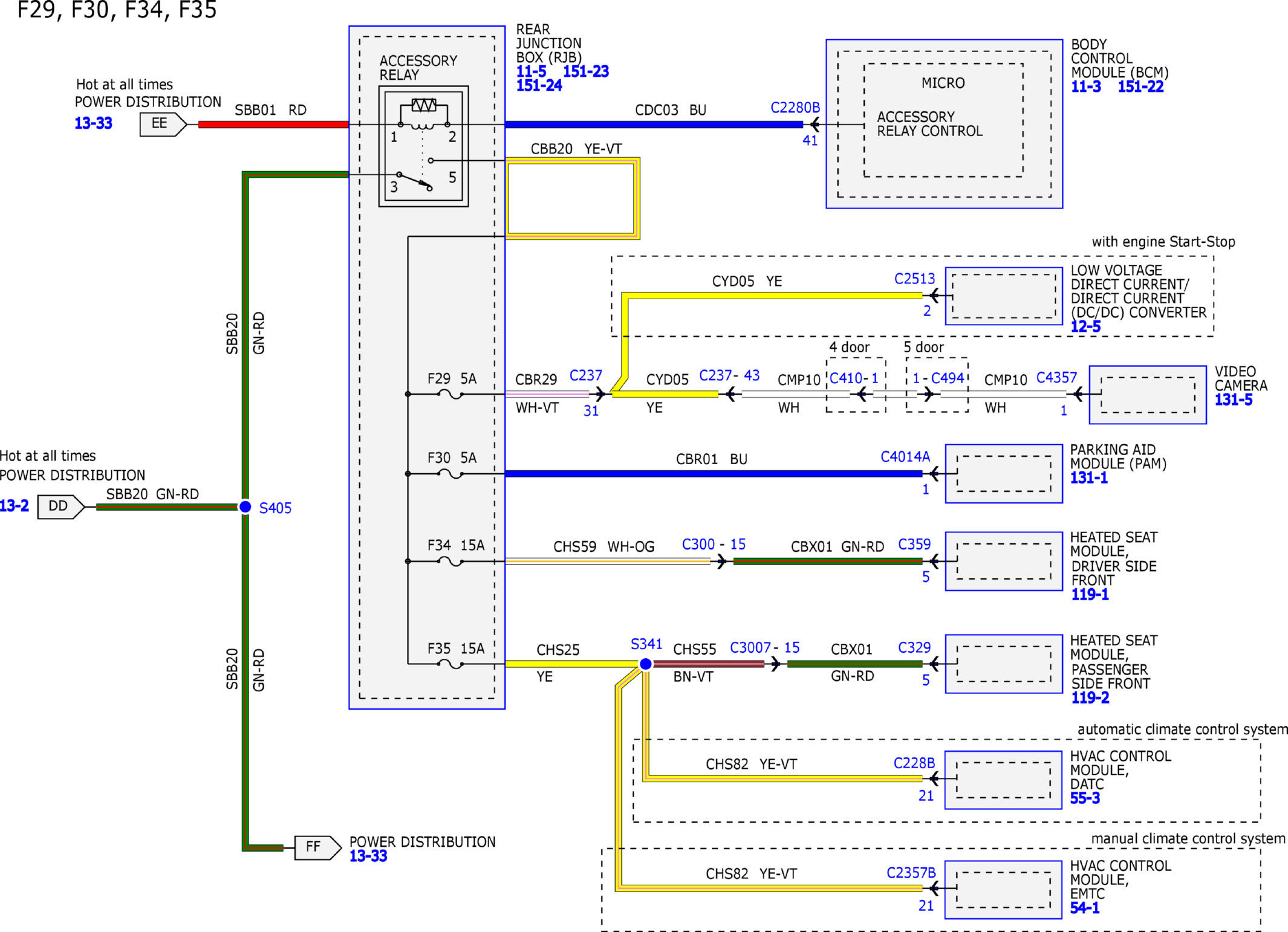

Fig 26: Power Distribution System Wiring Diagram (26 Of 35)

GFDW22765

Courtesy of FORD MOTOR COMPANY

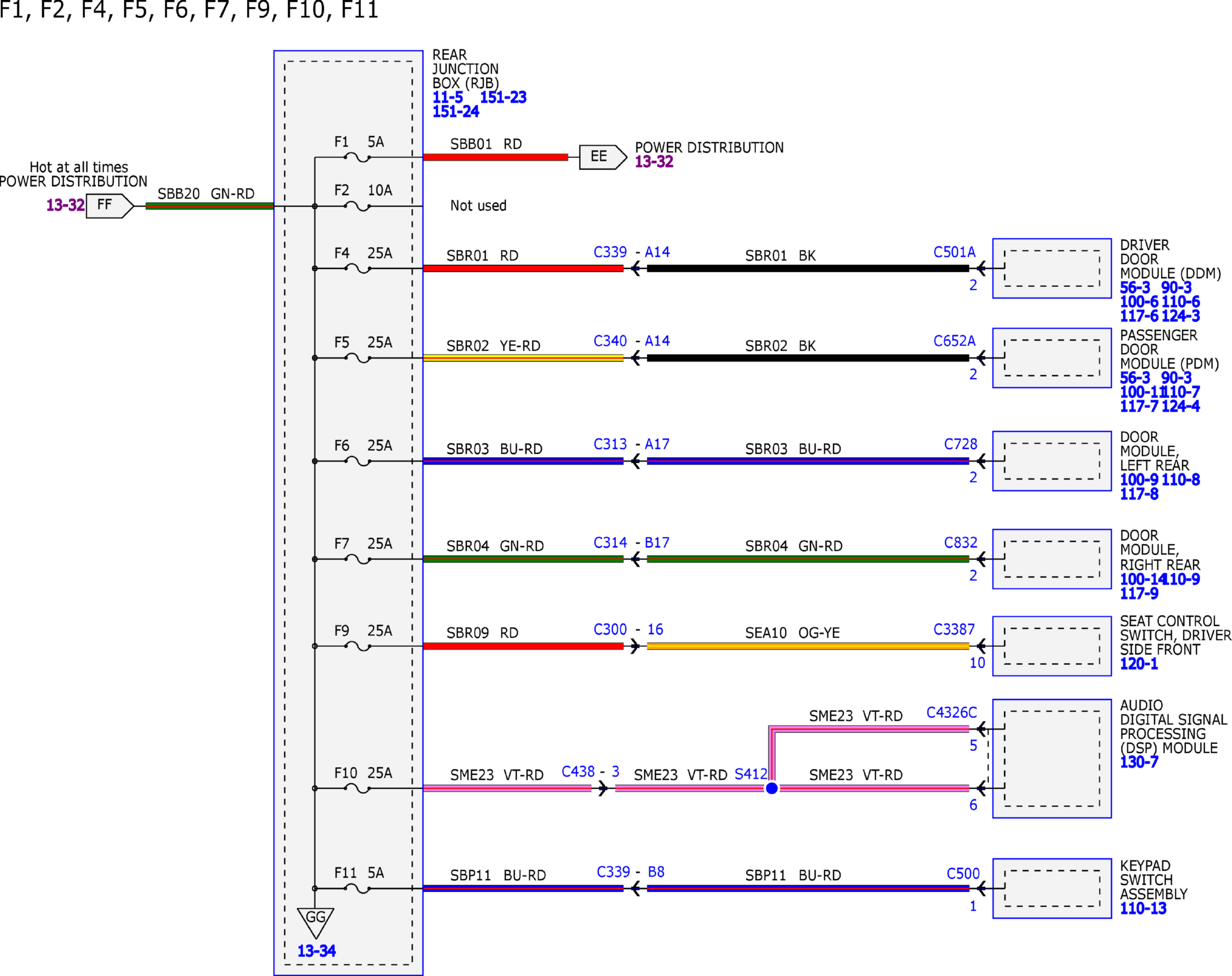

Fig 27: Power Distribution System Wiring Diagram (27 Of 35)

GFDW22766

Courtesy of FORD MOTOR COMPANY

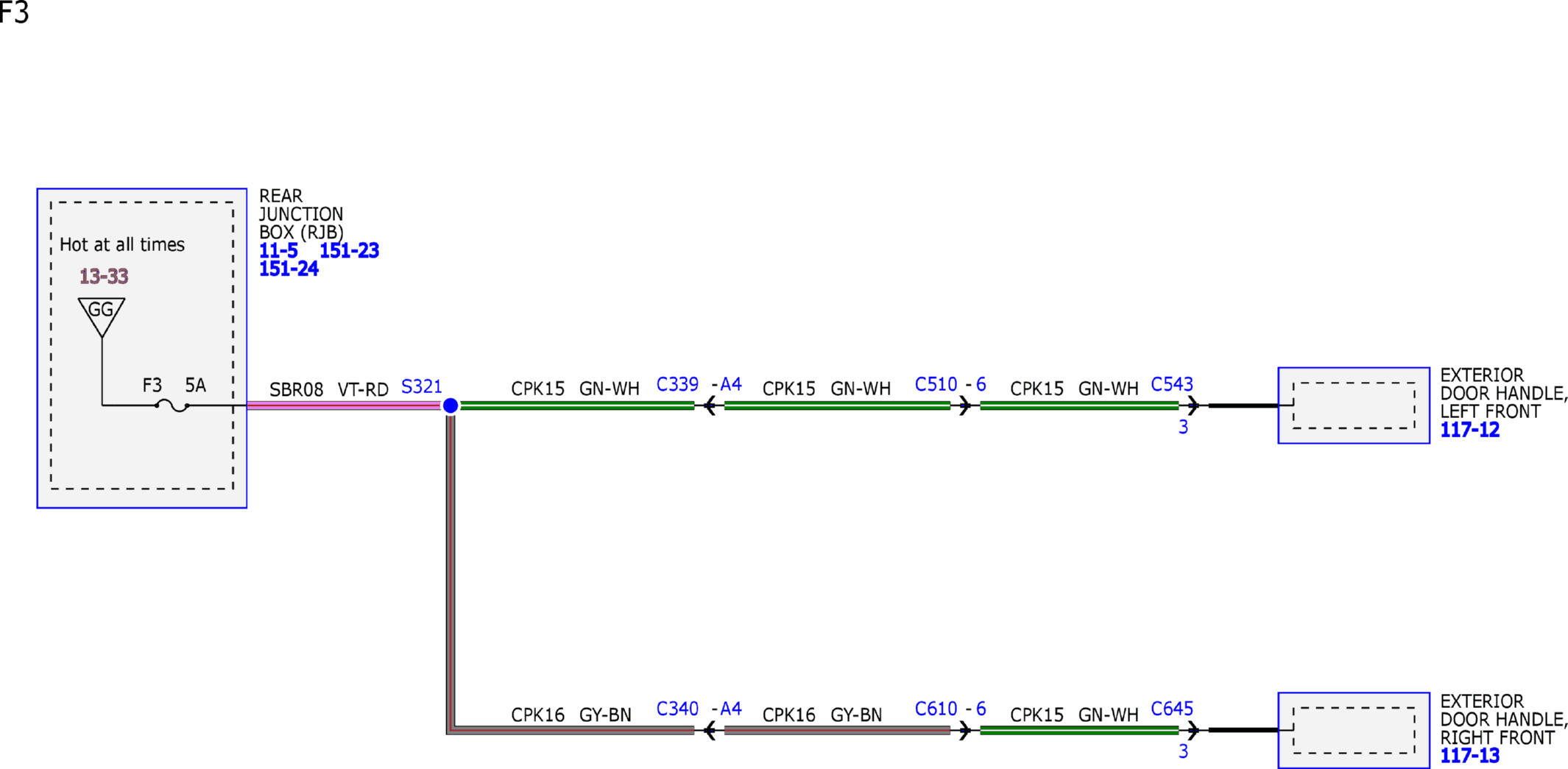

Fig 28: Power Distribution System Wiring Diagram (28 Of 35)

GFDW22767

Courtesy of FORD MOTOR COMPANY

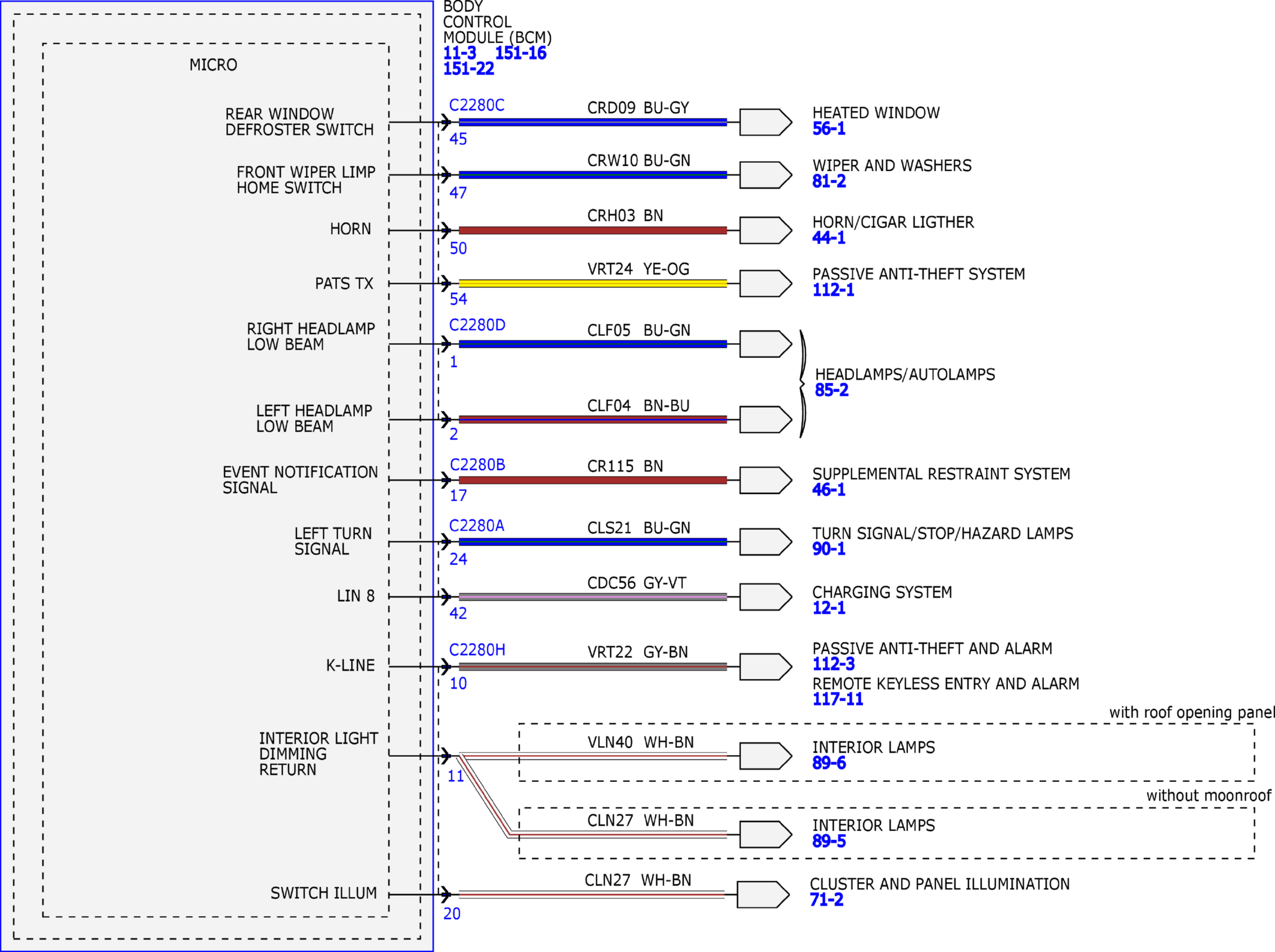

Fig 29: Power Distribution System Wiring Diagram (29 Of 35)

GFDW22768

Courtesy of FORD MOTOR COMPANY

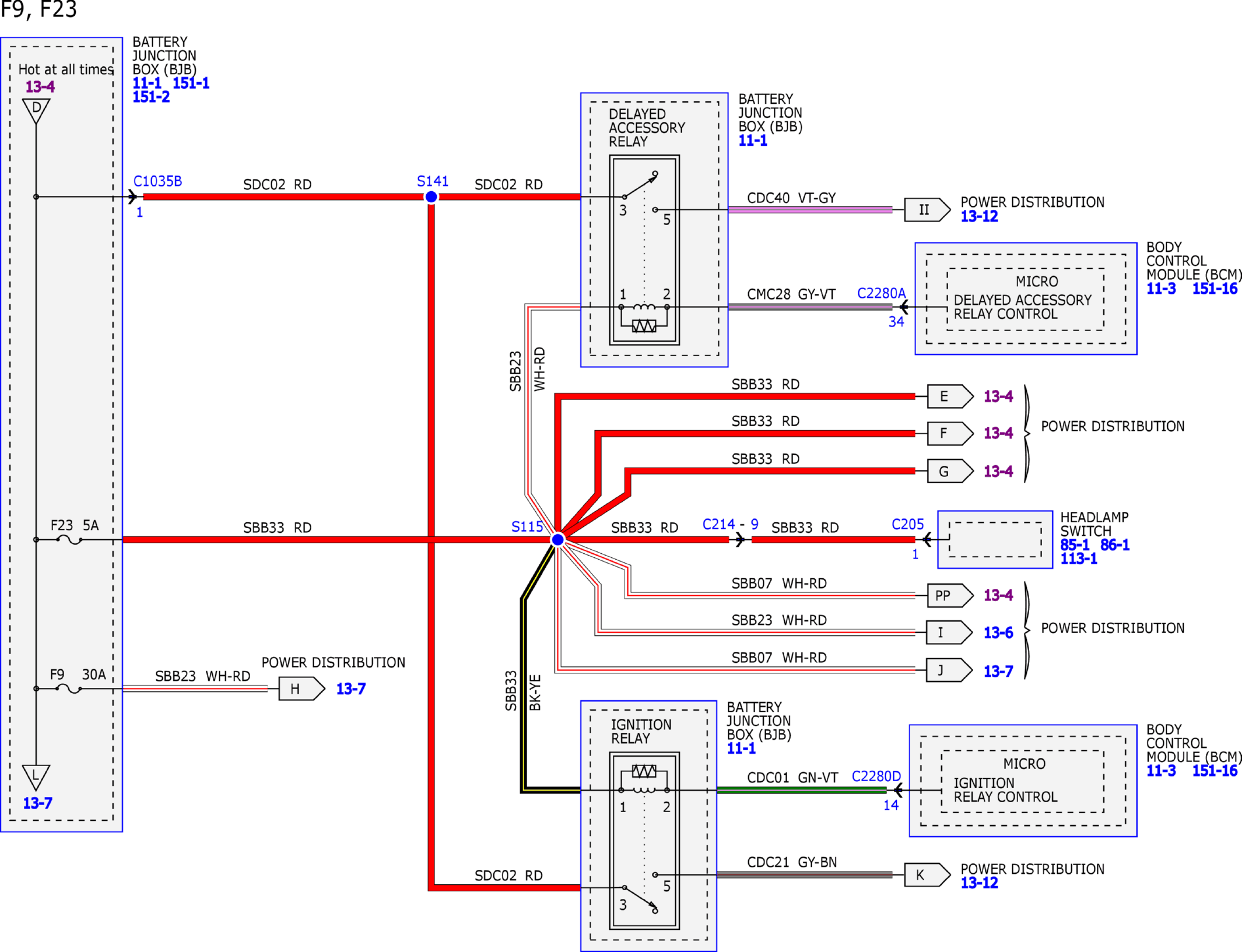

Fig 30: Power Distribution System Wiring Diagram (30 Of 35)

GFDW22769

Courtesy of FORD MOTOR COMPANY

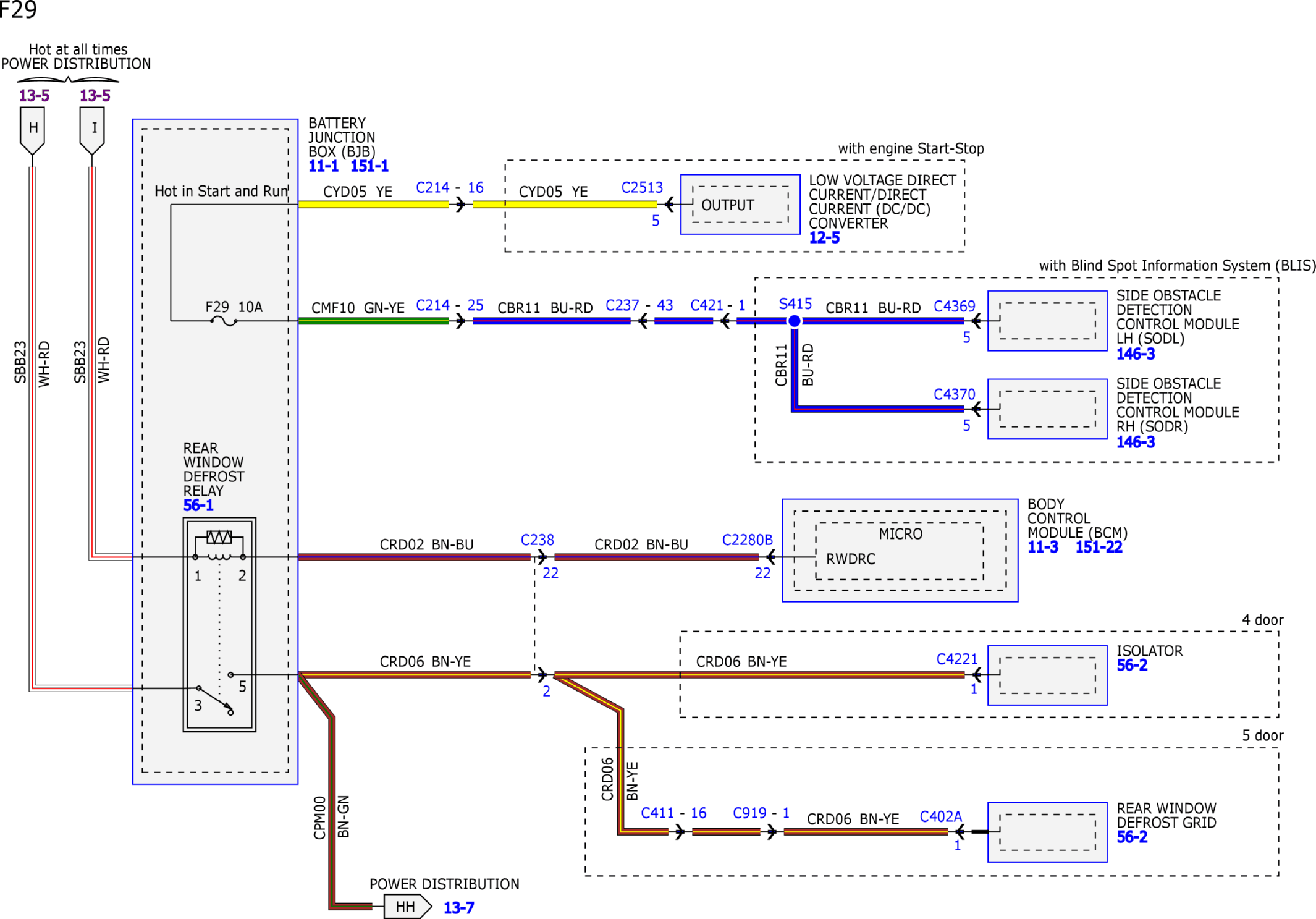

Fig 31: Power Distribution System Wiring Diagram (31 Of 35)

GFDW22770

Courtesy of FORD MOTOR COMPANY

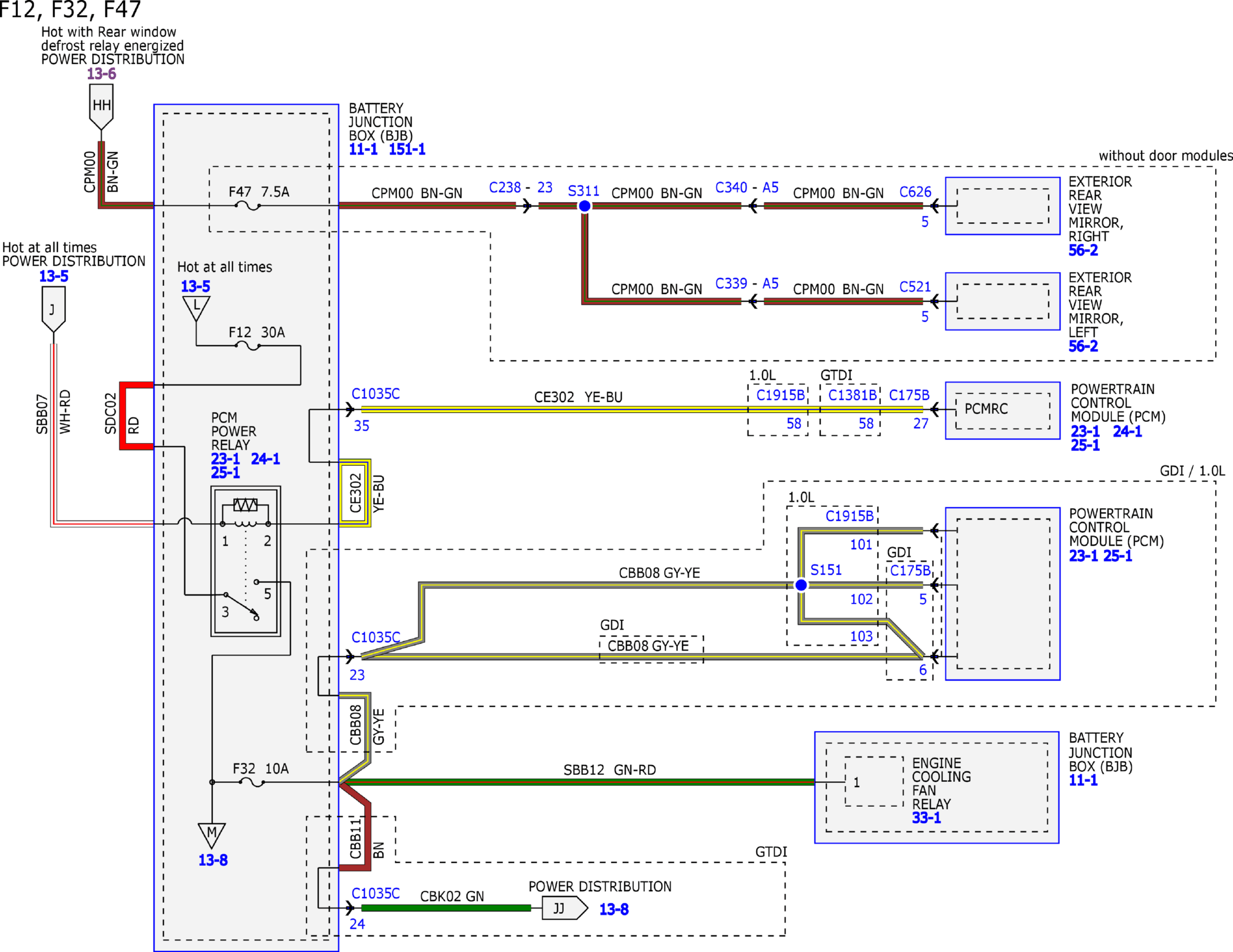

Fig 32: Power Distribution System Wiring Diagram (32 Of 35)

GFDW22771

Courtesy of FORD MOTOR COMPANY

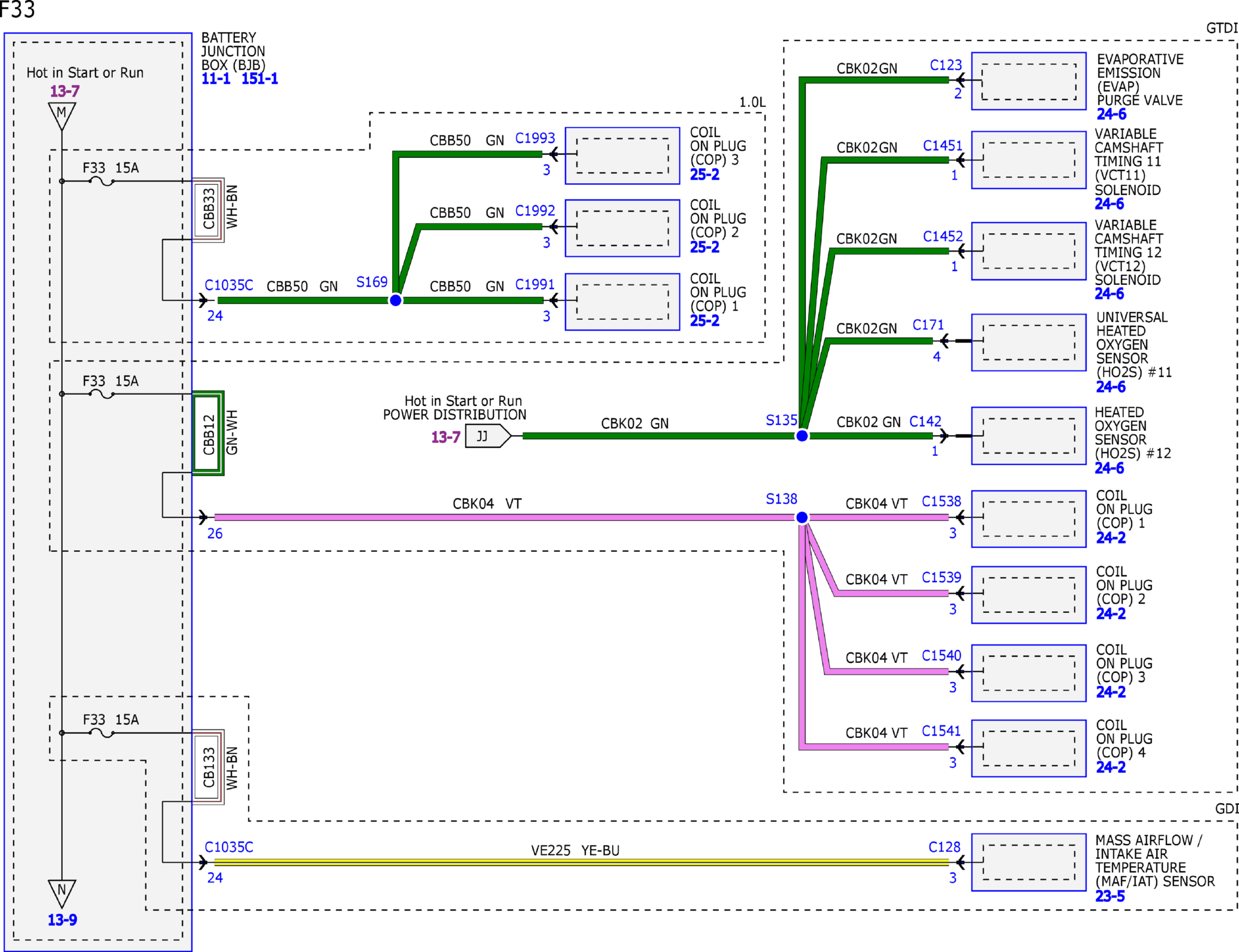

Fig 33: Power Distribution System Wiring Diagram (33 Of 35)

GFDW22772

Courtesy of FORD MOTOR COMPANY

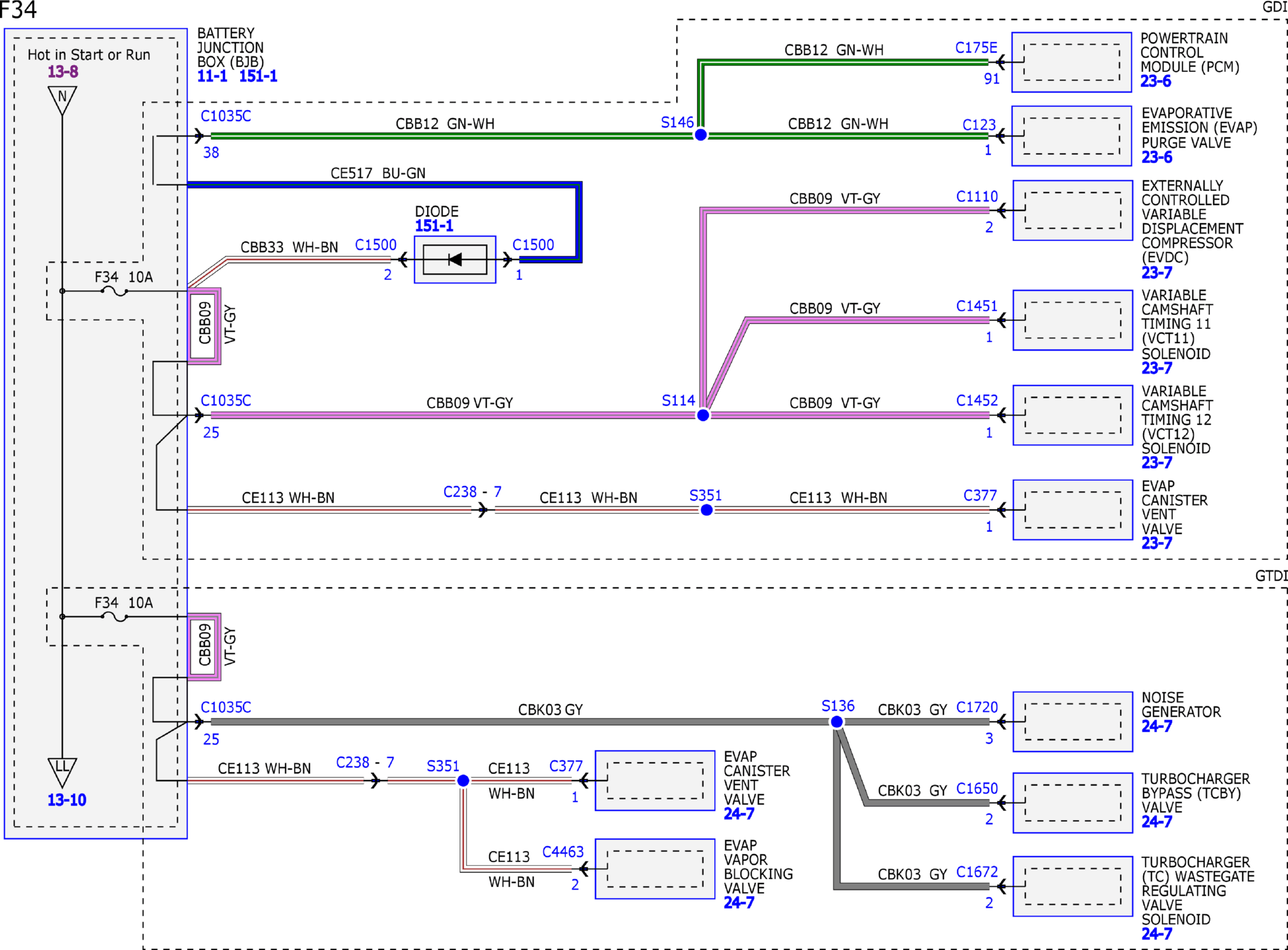

Fig 34: Power Distribution System Wiring Diagram (34 Of 35)

GFDW22773

Courtesy of FORD MOTOR COMPANY

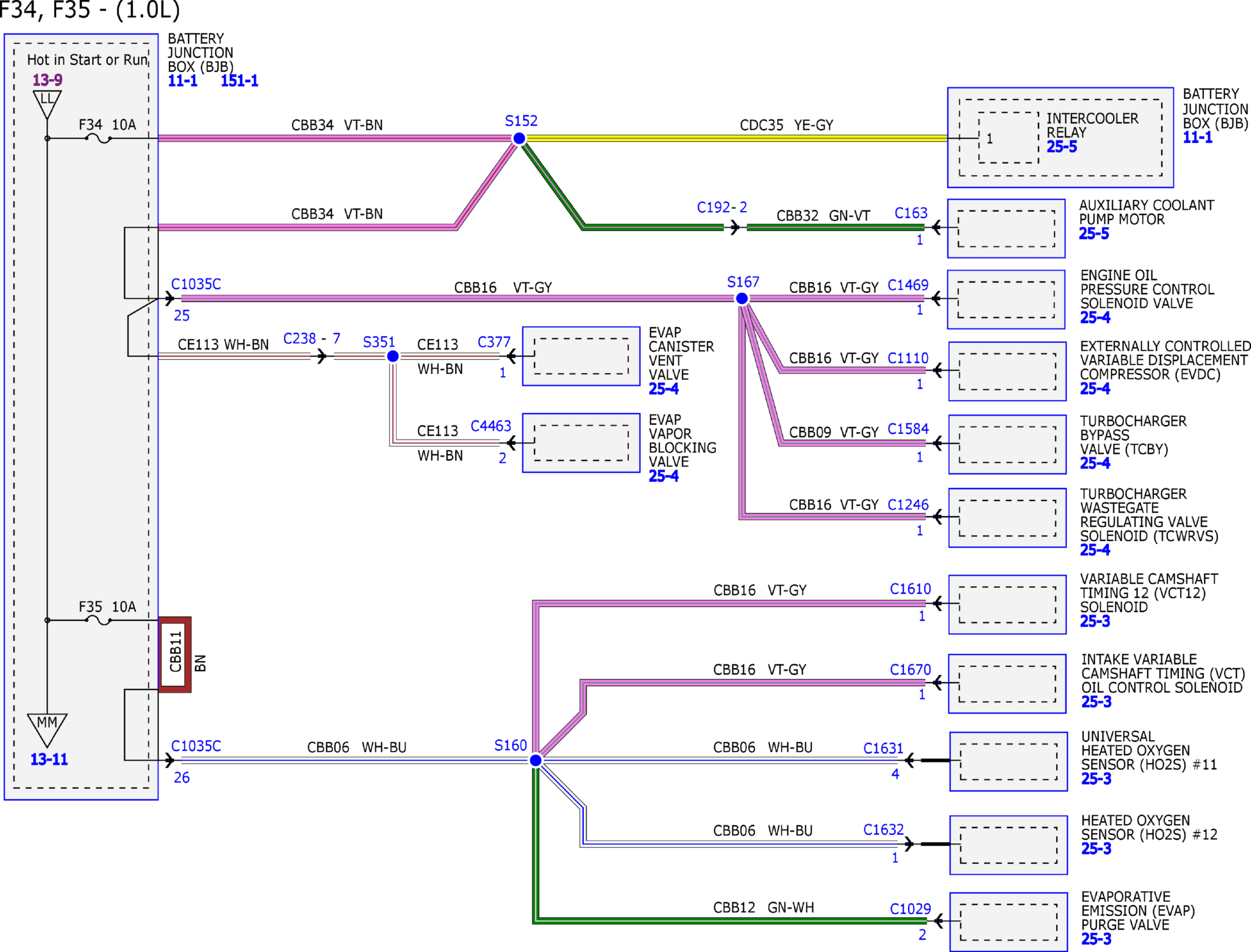

Fig 35: Power Distribution System Wiring Diagram (35 Of 35)

GFDW22774

Courtesy of FORD MOTOR COMPANY
