Compass Module: Removal

NOTE: Do not bend or crease the headliner during removal or installation. Failure to follow this will result in damage to the headliner.
NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

    WARNING: Before beginning any service procedure in this article, refer to Health and Safety Precautions . Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions .

  1. 2.

    Remove both A-pillar trim panels. Refer to: A-Pillar Trim Panel .

  1. 3.

    1. 1.

      Disconnect the headliner RH electrical connector.

    1. 2.

      Detach the headliner washer hose coupling.

    1. 3.

      Release the clips and position the RH wire harness aside.

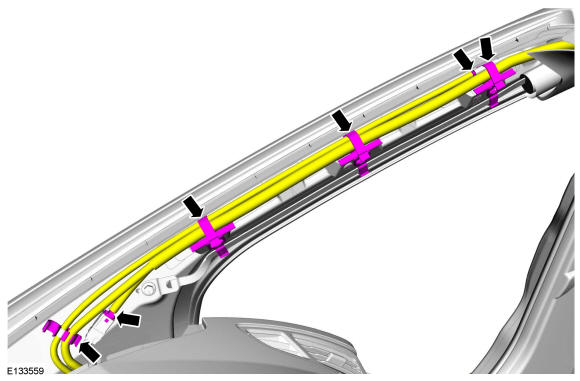

GFD63436Courtesy of FORD MOTOR COMPANY

  1. 4.

    If equipped. Remove the dome lamp and disconnect the electrical connectors.

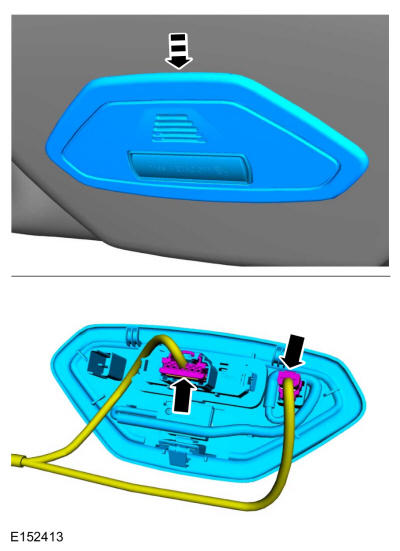

GFD63437Courtesy of FORD MOTOR COMPANY

  1. 5.

    If equipped, remove the overhead console. Refer to: Overhead Console .

  1. 6.

    If equipped. Remove the rear view mirror cover.

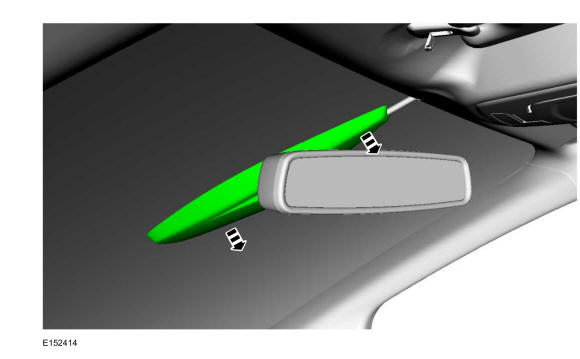

GFD63438Courtesy of FORD MOTOR COMPANY

  1. 7.

    If equipped. Disconnect the rear view mirror electrical connector.

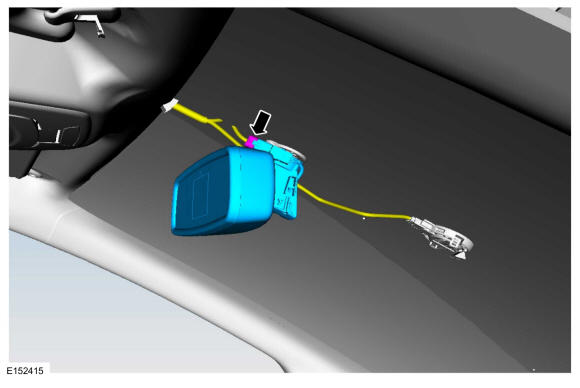

GFD63439Courtesy of FORD MOTOR COMPANY

  1. 8.

    Remove the cover, screw, detach the retainers and position aside both upper B-pillar trim panels.

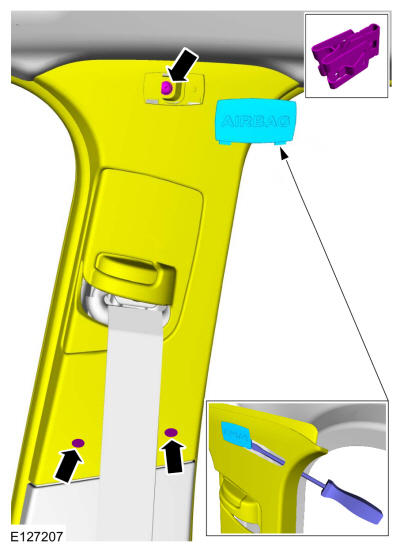

GFD63440Courtesy of FORD MOTOR COMPANY

  1. 9.

    Remove both D-pillar trim panels. Refer to: D-Pillar Trim Panel - 5-Door . Refer to: D-Pillar Trim Panel - 4-Door .

  1. 10.

    NOTE: 4 door vehicles only.

    Remove both upper C-pillar trim panels. Refer to: C-Pillar Upper Trim Panel .

  1. 11.

    1. 1.

      Remove the covers and screws.

    1. 2.

      Remove both sunvisors.

    1. 3.

      Disconnect the electrical connector.

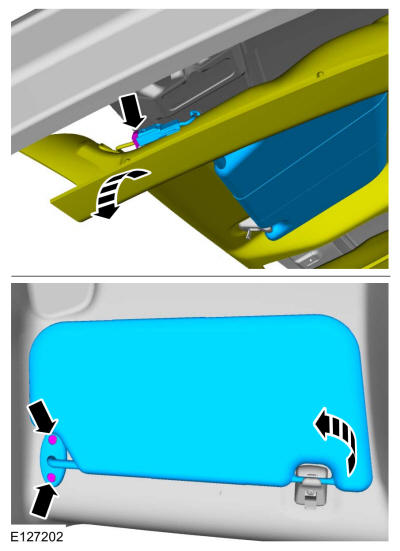

GFD63441Courtesy of FORD MOTOR COMPANY

  1. 12.

    NOTE: Assist handle shown, garment hooks similar.

    Remove the screws and the passenger front assist handle and both rear garment hooks.

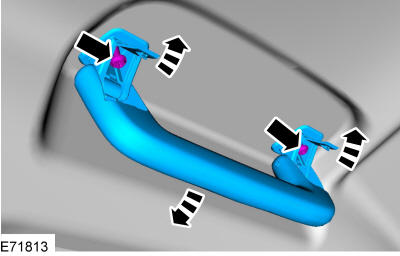

GFD63442Courtesy of FORD MOTOR COMPANY

  1. 13.

    NOTE: 5 door vehicles only

    Disconnect and plug the rear window washer hose from the RH D-pillar.

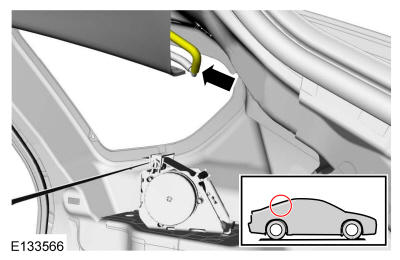

GFD63443Courtesy of FORD MOTOR COMPANY

  1. 14.

    NOTE: 5 door shown, 4 door similar.

    Position the front door, rear door and the liftgate dynamic seal aside.

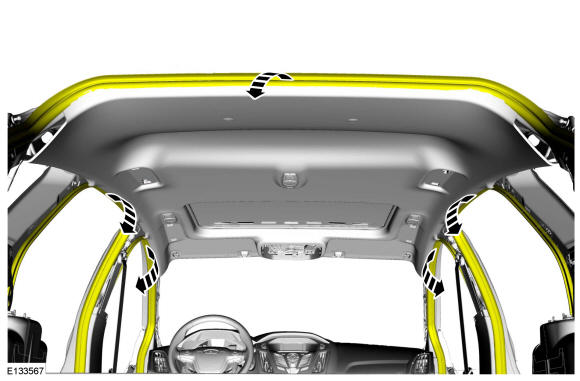

GFD63444Courtesy of FORD MOTOR COMPANY

  1. 15.

    Remove the head restraints.

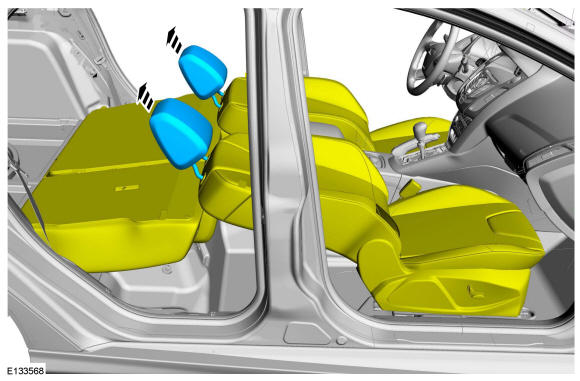

GFD63445Courtesy of FORD MOTOR COMPANY

  1. 16.

    Remove the screws, push-pins and position aside the headliner.

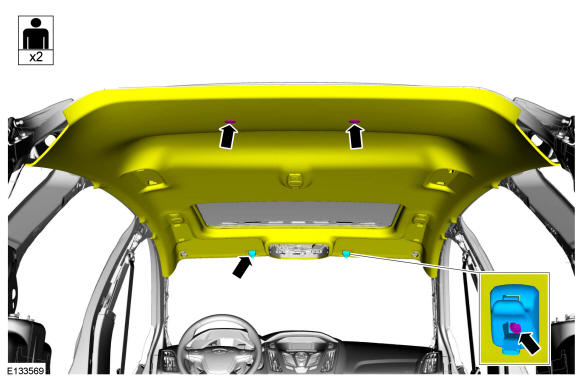

GFD63446Courtesy of FORD MOTOR COMPANY

  1. 17.

    NOTE: Gently pry the compass module away from the headliner or damage to the headliner may occur.

    Disconnect the electrical connector and remove the compass module.

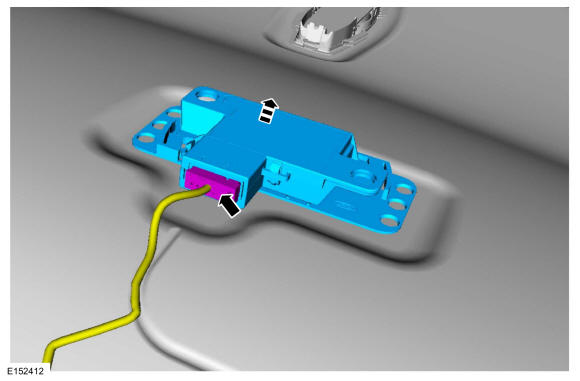

GFD63447Courtesy of FORD MOTOR COMPANY
