Instrument Panel Cluster (IPC) - Overview: Overview

NOTE: The IPC is serviceable as an assembly only. Do not attempt to disassemble or install a new IPC lens or indicators.

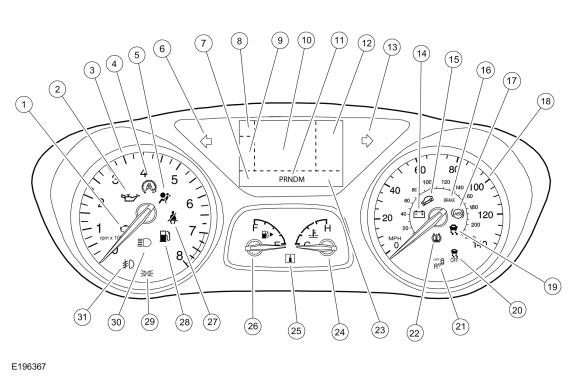

GFD63425Courtesy of FORD MOTOR COMPANY
Item Description
1 MIL
2 Low oil pressure warning indicator
3 Tachometer
4 Auto stop-start indicator
5 Airbag warning indicator
6 LH turn indicator
7 Odometer
8 Outside air temperature
9 Main menu navigation
10 Message center display area
11 PRNDL
12 Lane keeping system display
13 RH turn indicator
14 Charging system warning indicator
15 Grade assist indicator
16 Brake warning indicator
17 ABS warning indicator
18 Speedometer
19 Stability/traction control indicator (sliding car icon)
20 Stability/traction control disabled indicator (sliding car OFF icon)
21 BLIS off indicator
22 TPMS warning indicator
23 Compass display
24 Temperature gauge
25 Information indicator
26 Fuel gauge
27 Safety belt warning indicator
28 Low fuel indicator
29 Lights on indicator
30 Fog lamp indicator
31 High beam indicator

The IPC provides gauges, indicators, message center displays, message center warnings and warning chimes. The message center display utilizes a single LCD display screen.

The ST uses a separate ICM to display the following 3 gauges.

Informational indicators provide information to the driver of conditions that exist in the vehicle. Warning indicators provide information to the driver of conditions that could potentially cause personal injury or alter vehicle performance.

Message center indicators illuminate in the message center and replace the typical informational or warning indicator using the same iconic representation. The only message center indicators available are the cruise control and upshift indicators. The cruise control indicator is set in a fixed location in the upper RH side of the message center display.

Module messaging has increased over time and become the standard for sending and receiving information required to operate the IPC. The majority of the inputs required to operate the IPC are received over the CAN.

Hardwired Inputs

The IPC requires hardwired inputs from components that are not on either the High Speed Controller Area Network (HS-CAN) or the Medium Speed Controller Area Network (MS-CAN). These components are required for specific IPC functions or gateway requirements.

The hardwired inputs are provided by components:
