Overhead Console: Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

    WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in the General Information article. Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions

  1. 2.

    Open the sun glasses bin.
GFD64105Courtesy of FORD MOTOR COMPANY

  1. 3.

    NOTE: Sun glasses bin shown removed for clarity.

    Using a screwdriver, pry both corners of the switch bezel down. Use the General Equipment: Flat Headed Screw Driver

GFD64106Courtesy of FORD MOTOR COMPANY

  1. 4.

    Using a screwdriver, push inward on both sides on the switch panel inner tabs to release the switch panel. Use the General Equipment: Flat Headed Screw Driver
GFD64107Courtesy of FORD MOTOR COMPANY

  1. 5.

    Remove the switch panel.
GFD64108Courtesy of FORD MOTOR COMPANY

  1. 6.

    Disconnect the electrical connectors and remove the microphone.
GFD64109Courtesy of FORD MOTOR COMPANY

  1. 7.

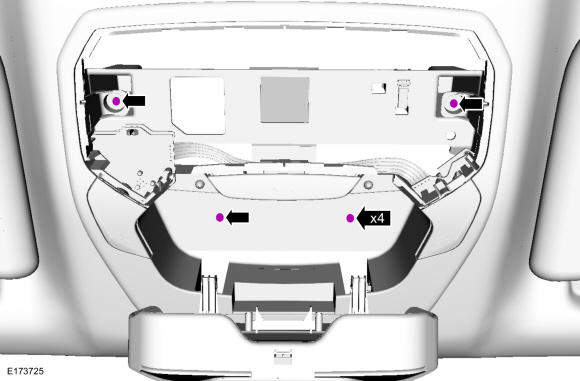

    If equipped. Remove the torx screws.
GFD64110Courtesy of FORD MOTOR COMPANY

  1. 8.

    Using a suitable tool release the snap tabs facing the rear of vehicle on both sides.
GFD64111Courtesy of FORD MOTOR COMPANY

  1. 9.

    Using a suitable tool release the side snap tabs on both sides.
GFD64112Courtesy of FORD MOTOR COMPANY

  1. 10.

    Rotate the overhead console assembly downward and pull rearward to release the clip tabs and remove the overhead console assembly.
GFD64113Courtesy of FORD MOTOR COMPANY
