Wheel Bearing and Wheel Hub: Installation

• 1.

  Install the wheel bearing and wheel hub and install the new wheel bearing and wheel hub bolts in the sequence shown in illustration.

  Torque

  : 81 lb.ft (110 Nm)

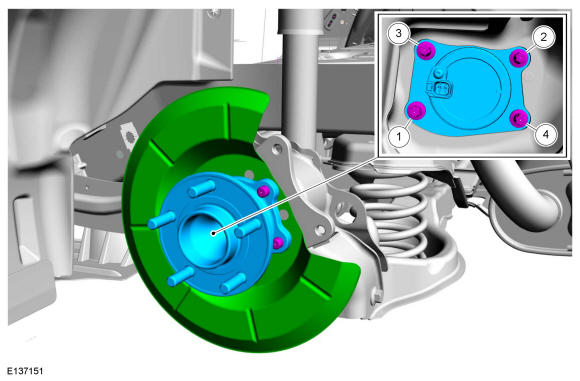

Fig 1: Wheel Bearing And Wheel Hub Bolts Tightening Sequence

Courtesy of FORD MOTOR COMPANY

• 2.

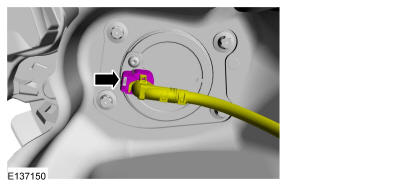

  Connect the wheel speed sensor electrical connector.

Courtesy of FORD MOTOR COMPANY

• 3.

  Install the brake disc. Refer to: Brake Disc .
