Trailing Arm: Removal

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

1.

Remove the wheel bearing and wheel hub. Refer to: Wheel Bearing and Wheel Hub .

2.

Remove the spring. Refer to: Spring .

3.

Remove the bolts and the underbody shield.

GFD64882

Courtesy of FORD MOTOR COMPANY

4.

Support the rear suspension.
Use the General Equipment: Transmission Jack

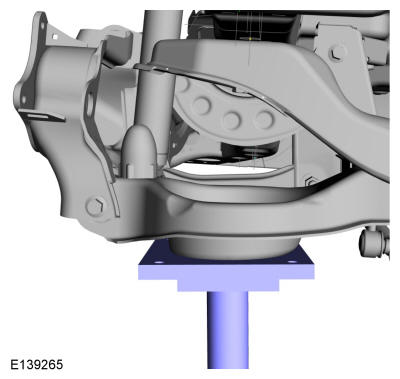

GFD64883

Courtesy of FORD MOTOR COMPANY

5.

Remove and discard the rear shock absorber lower bolt.
Use the General Equipment: Transmission Jack

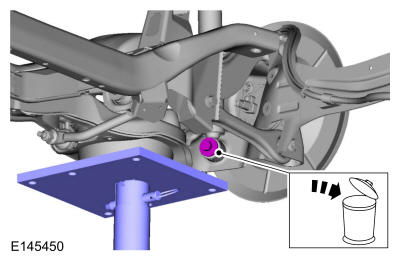

GFD64880

Courtesy of FORD MOTOR COMPANY

6.

Remove the bolt and position aside the parking brake cable.

GFD64884

Courtesy of FORD MOTOR COMPANY

7.

Remove the pin type retainers and position the wiring harness aside.

GFD64885

Courtesy of FORD MOTOR COMPANY

8.
- Remove and discard the bolt and position the front lower arm aside.
- Remove and discard the bolt and position brake hoses and bracket aside.

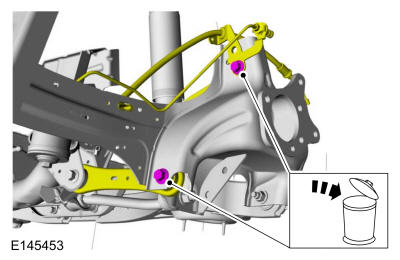

GFD64886

Courtesy of FORD MOTOR COMPANY

9.

Remove and discard the bolts and remove the trailing arm.

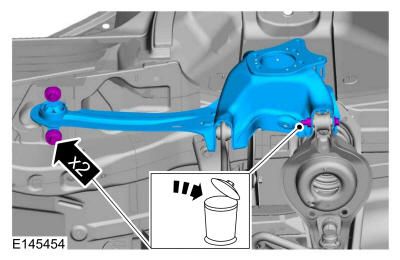

GFD64887

Courtesy of FORD MOTOR COMPANY
