Trailing Arm: Installation

1.

NOTE: Fabricate a spacer.

NOTE: Focus, Focus-BEV and Focus-ST require different length spacers.
- 1.

  Focus, Focus-BEV. Measure the length as per the specifications.
- 2.

  Focus-ST. Measure the length as per the specifications.

GFD64858

Courtesy of FORD MOTOR COMPANY

2.

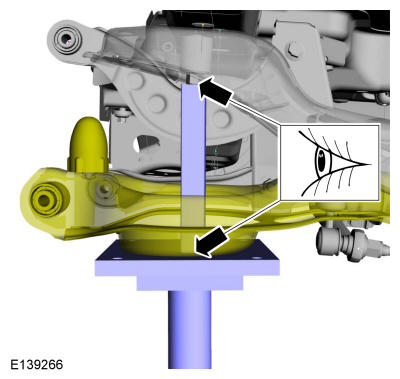

Support the rear suspension and position the correct spacer.
Use the General Equipment: Transmission Jack

GFD64888

Courtesy of FORD MOTOR COMPANY

3.

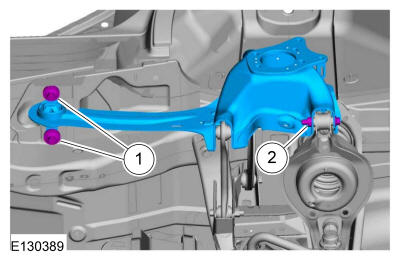

- 1.

  Install the trailing arm and tighten the new front bolts.
  Torque

  : 129 lb.ft (175 Nm)
- 2.

  NOTE: Finger tight at this stage.
Install the new trailing arm-to-lower arm bolt and nut.

GFD64889

Courtesy of FORD MOTOR COMPANY

4.

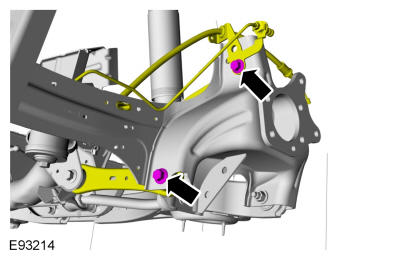

Position the front lower arm and brake hoses and bracket and tighten the bolts.
Torque

: 85 lb.ft (115 Nm)

GFD64890

Courtesy of FORD MOTOR COMPANY

5.

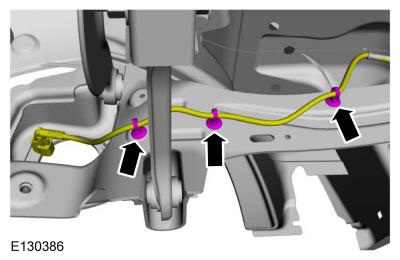

Position the wiring harness and install the pin type retainers.

GFD64885

Courtesy of FORD MOTOR COMPANY

6.

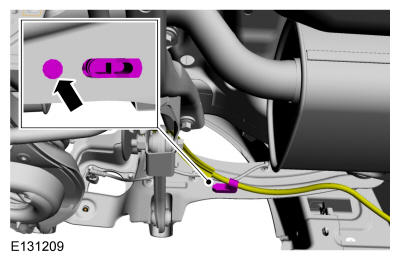

Position the parking brake cable and install the bolt.
Torque

: 17 lb.in (1.9 Nm)

GFD64884

Courtesy of FORD MOTOR COMPANY

7.

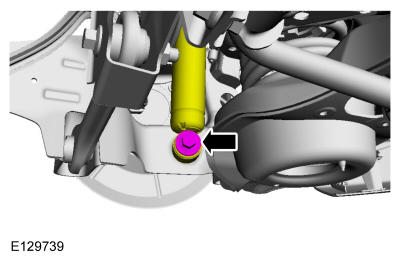

Position the rear shock absorber and install the new rear shock absorber lower bolt.
Torque

: 85 lb.ft (115 Nm)

GFD64865

Courtesy of FORD MOTOR COMPANY

8.

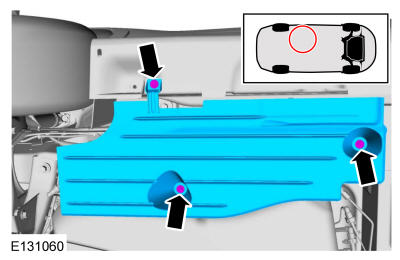

Install the underbody shield and install the bolts.

GFD64882

Courtesy of FORD MOTOR COMPANY

9.

Install the wheel bearing and wheel hub. Refer to: Wheel Bearing and Wheel Hub .

10.

Install the spring. Refer to: Spring .
