Rear Lower Arm: Removal
1.

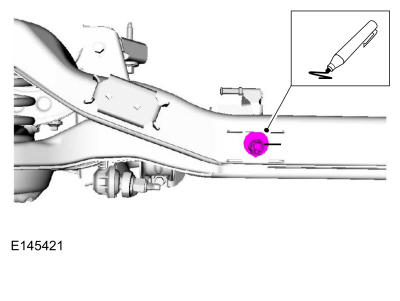

Mark the position of the rear lower arm adjustment cam to the rear subframe.
Courtesy of FORD MOTOR COMPANY
2.
Remove the spring. Refer to:
Spring
.
3.

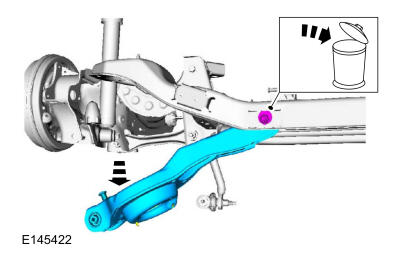

Remove and discard the rear lower arm-to-rear subframe bolt, nut and washers and remove the rear lower arm.
Courtesy of FORD MOTOR COMPANY
