Front Lower Arm: Removal

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

1.

Remove the spring. Refer to: Spring .

2.

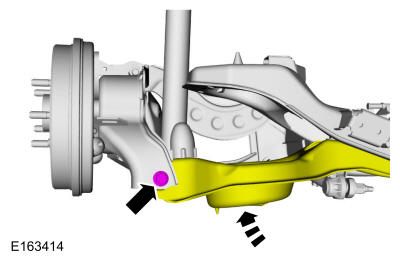

Finger tight only. Position the lower arm and install the lower arm-to-trailing arm bolt and nut.

Courtesy of FORD MOTOR COMPANY

3.

NOTE: Fabricate a spacer.

NOTE: Focus, Focus-BEV and Focus-ST require different length spacers.
- 1.

  Focus, Focus-BEV. Measure the length as per the specifications.
- 2.

  Focus-ST. Measure the length as per the specifications.

Courtesy of FORD MOTOR COMPANY

4.

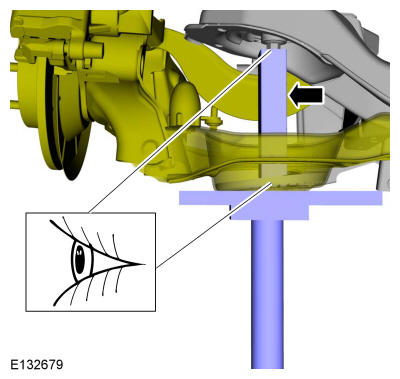

Support the rear suspension and position the correct spacer.
Use the General Equipment: Transmission Jack

Courtesy of FORD MOTOR COMPANY

5.

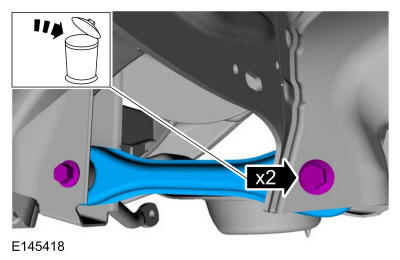

Remove and discard the front lower arm bolts and remove the front lower arm.

Courtesy of FORD MOTOR COMPANY
