Front Lower Arm: Installation

1.

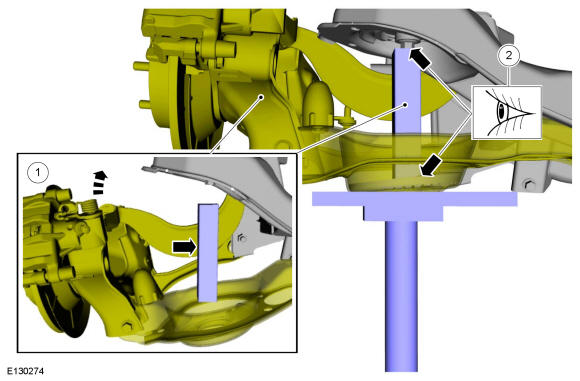

- 1.

  Position the correct spacer.
- 2.

  Verify the spacer is placed properly.
  Use the General Equipment: Transmission Jack

GFD64862

Courtesy of FORD MOTOR COMPANY

2.

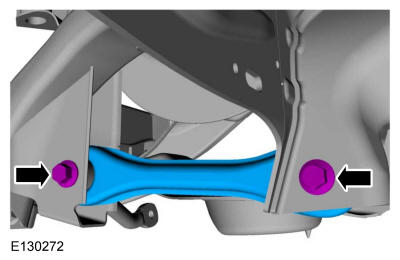

NOTE: The forward lower arm is marked FRONT. Make a note of the position of the front lower arm to aid installation.

Install the front lower arm and install the new front lower arm bolts.

Torque

: 85 lb.ft (115 Nm)

GFD64867

Courtesy of FORD MOTOR COMPANY

3.

Install the spring. Refer to: Spring .
