Clutch System Bleeding - 5-Speed Manual Transmission - MTX75

WARNING: This page is about a different variant/trim than selected.

Special Tool(s) / General Equipment

Fluid Suction Gun

Brake/Clutch System Pressure Bleeder/Filler

Materials

Name	Specification
Motorcraft ® DOT 4 LV High Performance Motor Vehicle Brake Fluid PM-20	WSS-M6C65-A2

Bleeding

1.

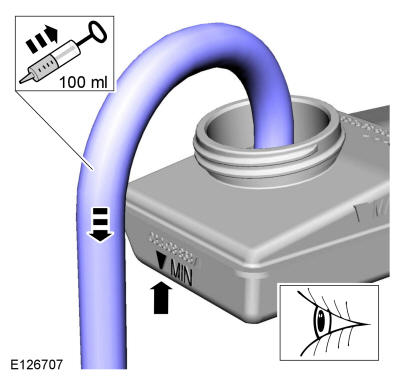

NOTE: Make sure that the brake fluid level does not drop below the MIN mark.

Using a suction gun, drain the brake fluid reservoir to the MIN mark. Use the General Equipment: Fluid Suction Gun

GFD62637

Courtesy of FORD MOTOR COMPANY

2.

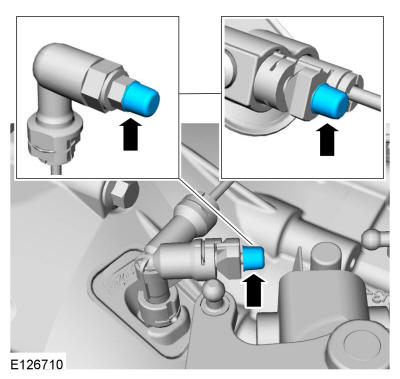

Remove the bleeder cap.

GFD62638

Courtesy of FORD MOTOR COMPANY

3.

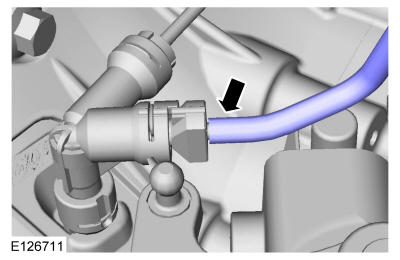

Install the following items:
- Install a brake bleeder and fill the tool reservoir with brake fluid. Use the General Equipment: Brake/Clutch System Pressure Bleeder/Filler
  Material: Motorcraft ® DOT 4 LV High Performance Motor Vehicle Brake Fluid / PM-20 (WSS-M6C65-A2)

GFD62639

Courtesy of FORD MOTOR COMPANY

4.

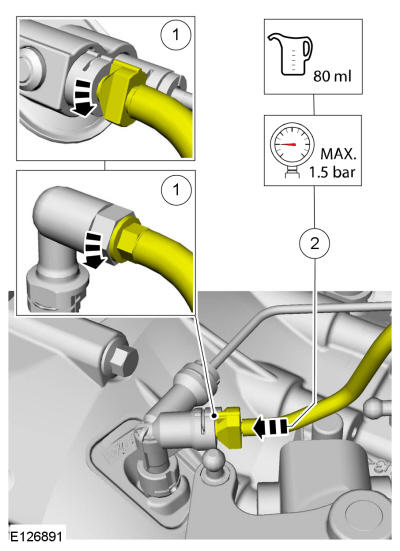

- 1.

  Open the clutch bleeder.
- 2.

  Pump brake fluid into the hydraulic system using the brake bleeder. Use the General Equipment: Brake/Clutch System Pressure Bleeder/Filler

GFD62640

Courtesy of FORD MOTOR COMPANY

5.

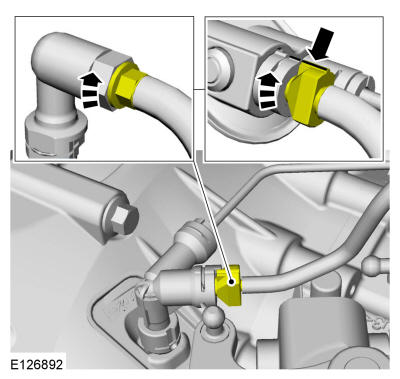

Close the clutch bleeder.

GFD62641

Courtesy of FORD MOTOR COMPANY

6.

Install the clutch bleeder cap.

GFD62638

Courtesy of FORD MOTOR COMPANY

7.

Pump the clutch pedal 5 times, using the full clutch pedal travel to remove any trapped air from the hydraulic system.

GFD62642

Courtesy of FORD MOTOR COMPANY

8.

NOTE: Make sure that fluid level is to the MAX mark.

Fill the reservoir.

GFD62643

Courtesy of FORD MOTOR COMPANY

9.

Start the engine and check the operation of the clutch. If reverse gear engagement is excessively noisy, operate the clutch pedal 5 times, using the full clutch pedal travel.

GFD62644

Courtesy of FORD MOTOR COMPANY

10.

After waiting approx. 30 sec., check the operation of the clutch again. If reverse gear engagement is still excessively noisy, repeat the bleeding procedure.
