Removal And Installation: Radiator: Installation
WARNING: This page is about a different variant/trim than selected.
- 7.

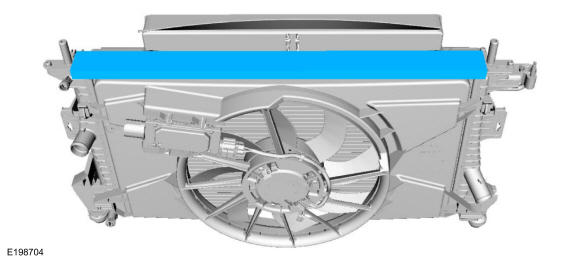

Install the cooling module and the fasteners. If previously equipped, install a new rivet.Torque
: 18 lb.ft (25 Nm)
- 8.
Connect the radiator hoses and install the hose clamps.Use the General Equipment: Hose Clamp Remover/Installer
- 9.
Connect the electrical connector and attach the electrical connectors and wiring harness retainers to the lower radiator support.
- 12.NOTE: Install new O-rings and gasket seals.
Connect the A/C lines and the fasteners.
Torque
: 133 lb.in (15 Nm)
- 13.
Fill and bleed the cooling system. REFER to: Cooling System Draining, Vacuum Filling and Bleeding .
- 14.
Evacuate and charge the A/C system. REFER to: Air Conditioning (A/C) System Recovery, Evacuation and Charging .
