Degas Bottle: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in GENERAL INFORMATION . Failure to follow this instruction may result in serious personal injury.
Refer to: Engine Cooling System Health and Safety Precautions .
- 2.WARNING: When releasing the cooling system pressure, cover the coolant expansion tank cap with a thick cloth.
Slowly turn the pressure relief cap 1/2 turn and step back while the pressure is released. When all the pressure is released, remove the pressure relief cap.
- 5.

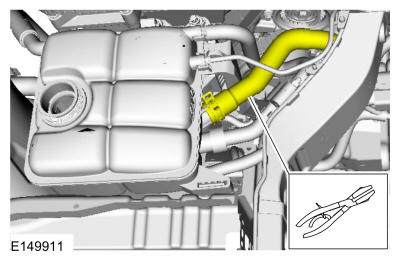

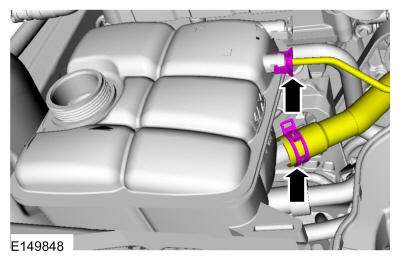

Depress the tabs and disconnect the upper coolant tube. Release the clamp, disconnect the lower coolant hose.Use the General Equipment: Hose Clamp Remover/Installer
