Halfshaft Seal RH: Installation

WARNING: This page is about a different variant/trim than selected.

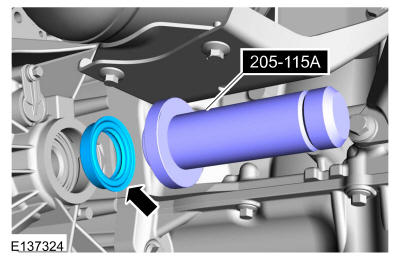

1.

Use Special Service Tool: 205-115A (205-115) Installer, Drive Pinion Seal.

GFD62701

Courtesy of FORD MOTOR COMPANY

2.

Use Special Service Tool: 204-605 Separator, Lower Arm Ball Joint.

GFD62702

Courtesy of FORD MOTOR COMPANY

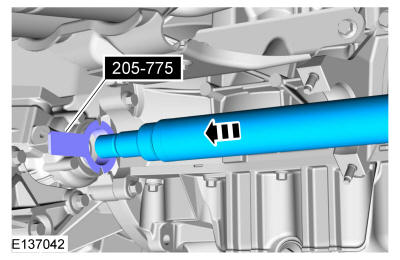

3.

NOTE: Make sure that the strut is not moved more than necessary to prevent damage to top mount.

NOTE: Take extra care not to damage the seal.

Remove the special tool before completely installing the halfshaft. Use Special Service Tool: 205-775 Protector, Halfshaft Seal.

GFD62703

Courtesy of FORD MOTOR COMPANY

4.

Remove Special Service Tool: 204-609 Protection Cap, Ball Joint Gaiter.

GFD62457

Courtesy of FORD MOTOR COMPANY

5.

GFD62456

Courtesy of FORD MOTOR COMPANY

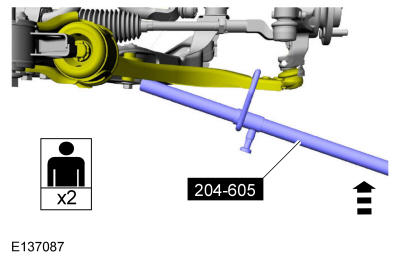

6.

Use Special Service Tool: 204-605 Separator, Lower Arm Ball Joint.

GFD62704

Courtesy of FORD MOTOR COMPANY

7.

NOTE: Make sure a new bolt is installed.

NOTE: Make sure a new nut is installed.

Torque: 61 lb.ft (83 Nm)

GFD62686

Courtesy of FORD MOTOR COMPANY

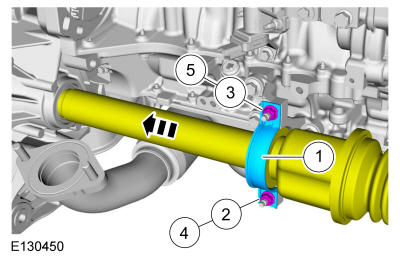

8.
- 1.

  NOTE: Make sure that a new component is installed.

2.

NOTE: Make sure that new nuts are installed.

Torque: 2-3: 53 lb.in (6 Nm)

3.

Torque: 4-5: 18 lb.ft (25 Nm)

GFD62705

Courtesy of FORD MOTOR COMPANY

9.

Torque: 89 lb.in (10 Nm)

GFD60548

Courtesy of FORD MOTOR COMPANY

10.

If equipped.
Torque: 71 lb.in (8 Nm)

GFD62454

Courtesy of FORD MOTOR COMPANY

11.

Refer to: Transmission Fluid Level Check .

12.

Install engine undershield - If equipped.

13.

Refer to: Wheel and Tire .
