Engine Front Cover: Installation

WARNING: This page is about a different car, the 2016 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

1.

NOTE: The engine front cover must be secured within 10 minutes of Silicone Gasket and Sealant application. If the engine front cover is not secured within 10 minutes, the sealant must be removed and the sealing area cleaned with Motorcraft Metal Surface Prep.

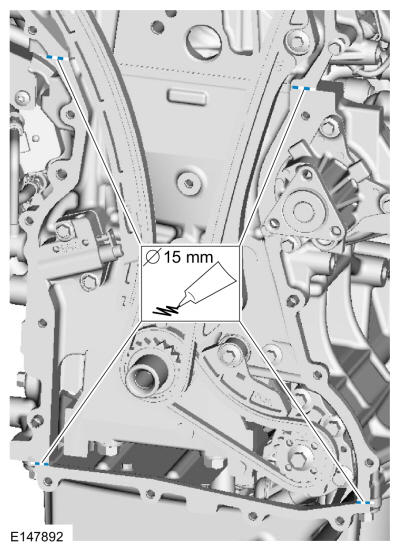

Apply beads of Silicone Gasket and Sealant that are 15 mm in diameter across the cylinder head and cylinder block joint areas.

Material: Motorcraft® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

Courtesy of FORD MOTOR COMPANY

2.

NOTE: The engine front cover must be secured within 10 minutes of Silicone Gasket and Sealant application. If the engine front cover is not secured within 10 minutes, the sealant must be removed and the sealing area cleaned with Motorcraft Metal Surface Prep.

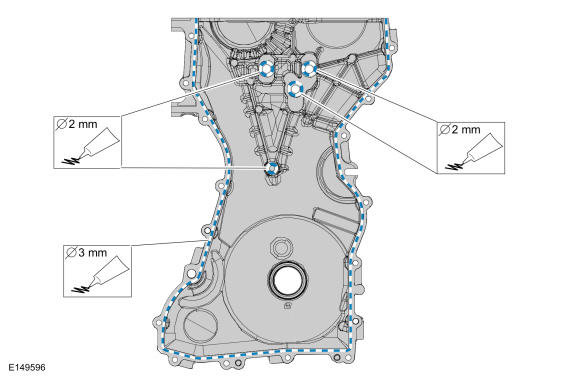

- Apply beads of silicone sealant that are 2 mm around the inner bolt holes.
  Material: Motorcraft® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)
- Apply a bead of silicone sealant that are 3 mm on the edge of the engine front cover
  Material: Motorcraft® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

Courtesy of FORD MOTOR COMPANY

3.
- 1.

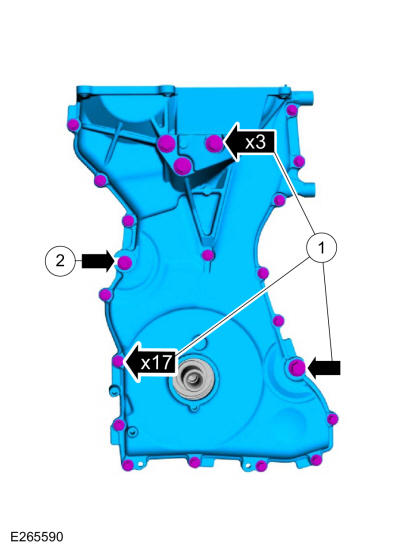

  Install the engine front cover and the bolts finger tight.
- 2.

  If equipped, install the bolt finger tight.

Courtesy of FORD MOTOR COMPANY

4.

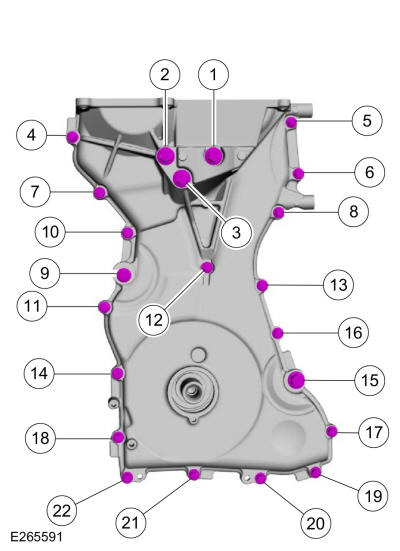

Tighten the engine front cover bolts in sequence shown below.
Torque:

Bolts 1 - 3: 35 lb.ft (48 Nm)

Bolts 4 - 8: 89 lb.in (10 Nm)

If equipped, bolt 9: 18 lb.ft (25 Nm)

Bolts 10 - 14: 89 lb.in (10 Nm)

Bolt 15: 35 lb.ft (48 Nm)

Bolts 16 - 22: 89 lb.in (10 Nm)

Fig 1: Engine Front Cover Bolts Tightening Sequence

Courtesy of FORD MOTOR COMPANY

5.

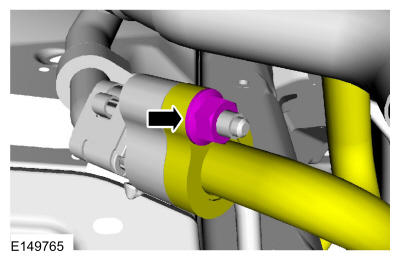

Tighten the engine mount studs.
Torque: 93 lb.in (10.5 Nm)

Courtesy of FORD MOTOR COMPANY

6.

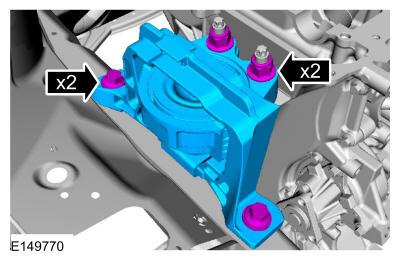

- Install the engine mount and the bolts.
  Torque: 66 lb.ft (90 Nm)
- Install the engine mounting nuts.
  Torque: 59 lb.ft (80 Nm)

Courtesy of FORD MOTOR COMPANY

7.

Position back the A/C suction tube.

Courtesy of FORD MOTOR COMPANY

8.

NOTE: Use a new O-ring seal.

Using a new O-ring seal, connect the A/C suction tube and tighten the nut.

Torque: 133 lb.in (15 Nm)

Courtesy of FORD MOTOR COMPANY

9.

Install the coolant pump pulley and the bolts finger tight.

Courtesy of FORD MOTOR COMPANY

10.

Install the accessory drive belt tensioner and the bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

11.

Install the crankshaft front seal. REFER to: Crankshaft Front Seal

12.

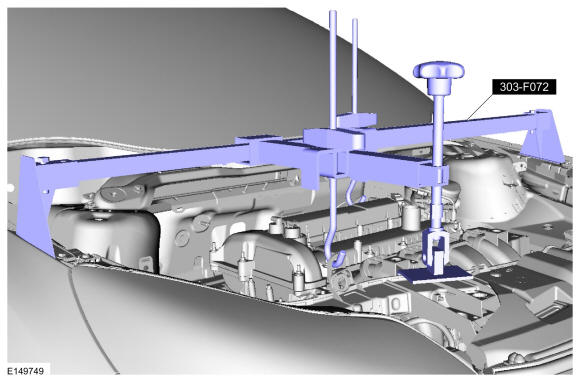

Remove the engine support bar. Remove Special Service Tool: 303-F072 Support Bar, Engine.

Courtesy of FORD MOTOR COMPANY

13.

Install the cowl panel grille. REFER to: Cowl Panel Grille

14.

Tighten the coolant pump pulley bolts.
Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY

15.

Position back the degas bottle.

Courtesy of FORD MOTOR COMPANY

16.

Evacuate and recharge the A/C system. REFER to: Air Conditioning (A/C) System Recovery, Evacuation and Charging
