Section 48 (Engine - 2.0L DURATEC-He (125KW/170PS) - Mi4 (Except Electric Vehicle)): Disassembly: Engine
WARNING: This page is about a different car, the 2016 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Special Tool(s) / General Equipment
| 205-153 (T80T-4000-W) Handle | |
|---|---|
| 303-103 (T74P-6375-A) Holding Tool, Flywheel T74P-77000-A TKIT-2009TC-F | |
| 303-1247 VCT Spark Plug Tube Seal Remover and Installer TKIT-2006UF-FLM TKIT-2006UF-ROW | |
| 303-1419 Remover, 3.5L / 3.7L Stretchy Belt TKIT-2008SB-FLM | |
| 303-1565 Alignment Tool, Camshaft TKIT-2010C-FLM | |
| 303-409 (T92C-6700-CH) Remover, Crankshaft Seal TKIT-1992-FH/FMH/FLMH TKIT-1993-LMH/MH | |
| 303-507 Timing Peg, Crankshaft TDC TKIT-2001N-FLM TKIT-2001N-ROW | |
| 303-D055 (D85L-6000-A) Strap Wrench | |
| 307-005 (T59L-100-B) Slide Hammer | |
| 310-205 Fuel Injector Brush | |
| 310-206 Remover, Fuel Injector TKIT-2009A-FLM | |
| Plastic Scraper | |
| Hose Clamp Remover/Installer |
Materials
| Name | Specification |
|---|---|
| Motorcraft® Silicone Gasket Remover ZC-30-A | - |
| Motorcraft® Metal Surface Prep Wipes ZC-31-B | - |
| Motorcraft® Metal Brake Parts Cleaner PM-4-A, PM-4-B | - |
NOTE:
During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
NOTE:
Place clean, lint-free shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages or the oil pan, may cause engine failure.
NOTE:
Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.
NOTE:
Do not loosen or remove the crankshaft pulley bolt without first installing the special tools as instructed in this procedure. The crankshaft pulley and the crankshaft timing sprocket are not keyed to the crankshaft. The crankshaft, the crankshaft sprocket and the pulley are fitted together by friction. For that reason, the crankshaft sprocket is also unfastened if the pulley bolt is loosened. Before any repair requiring loosening or removal of the crankshaft pulley bolt, the crankshaft and camshafts must be locked in place by the special service tools, otherwise severe engine damage can occur.
NOTE:
Refer to exploded views in DESCRIPTION AND OPERATION
- 1.WARNING: Do not breathe dust or use compressed air to blow dust from storage containers or friction components. Remove dust using government-approved techniques. Friction component dust may be a cancer and lung disease hazard. Exposure to potentially hazardous components may occur if dusts are created during repair of friction components, such as brake pads and clutch discs. Exposure may also cause irritation to skin, eyes and respiratory tract, and may cause allergic reactions and/or may lead to other chronic health effects. If irritation persists, seek medical attention or advice. Failure to follow these instructions may result in serious personal injury.NOTE: Loosen the 6 clutch pressure plate-to-flywheel bolts evenly, by 2 turns at a time.
If equipped with a manual transmission.
- 2.
If equipped with a manual transmission. Use Special Service Tool: 303-103 (T74P-6375-A) Holding Tool, Flywheel.
- 3.
If equipped with a automatic transmission. Use Special Service Tool: 303-103 (T74P-6375-A) Holding Tool, Flywheel.
- 5.
Refer to: Quick Release Coupling
- 18.
Position the special tool between the crankshaft pulley and A/C compressor belt as shown and rotate the crankshaft clockwise. Use Special Service Tool: 303-1419 Remover, 3.5L / 3.7L Stretchy Belt.
- 19.
Rotate the crankshaft until the special tool is at approximately the 5 o'clock position as shown. Use Special Service Tool: 303-1419 Remover, 3.5L / 3.7L Stretchy Belt.
- 20.
Fold the special tool around the inside of the A/C compressor belt as shown. Use Special Service Tool: 303-1419 Remover, 3.5L / 3.7L Stretchy Belt.
- 21.
In one quick motion, firmly pull the special tool and remove the A/C compressor belt. Use Special Service Tool: 303-1419 Remover, 3.5L / 3.7L Stretchy Belt.
- 28.
Release the clamp and remove the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
- 29.NOTE: Remove the generator stud after generator is removed.
Remove the nut, the bolts and the generator.
- 31.
Disconnect the quick connect coupling and remove the vapor tube. REFER to: Quick Release Coupling
- 32.NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.
Remove the bolts and the intake manifold.
- 33.
Release the clamp and remove the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
- 35.NOTE: Use care when removing the fuel injection pump noise insulator. Spreading the openings will aid in removing the fuel injection pump noise insulator and reduce the risk of damage.
Remove the insulator.
- 36.NOTE: To release the fuel pressure in the high pressure fuel tube, wrap the fuel injection pump flare nut with a shop towel to absorb any residual fuel pressure during the loosening of fuel injection pump flare nut.
- Loosen the high pressure fuel tube flare nuts.
- Remove the bolts and discard the high pressure fuel tube.
- 37.NOTE: Pull out the fuel rails in the direction of the fuel injector axis or damage may occur to the fuel injectors.NOTE: Use compressed air and remove any dirt or foreign material from the cylinder head, block and general surrounding area of the fuel rail and injectors.NOTE: When removing the fuel rails, the fuel injectors may remain in the fuel rails but normally remain in the cylinder heads and require the use of a Fuel Injector Remover tool to extract.
Remove the bolts and the fuel rail.
- 38.
Remove any of the fuel injectors that remained in the head. Use Special Service Tool: 307-005 (T59L-100-B) Slide Hammer., 310-206 Remover, Fuel Injector.
- 41.NOTE: Make sure to thoroughly clean any residual fuel or foreign material from the cylinder head, block and the general surrounding area of the fuel rails and injectors.NOTE: Do not use compressed air to clean the tip of the fuel injector.NOTE: Do not use a brush to clean the tip of the fuel injector.
Clean the 4 fuel injector bores in the cylinder head. Use Special Service Tool: 310-205 Fuel Injector Brush.
- 44.NOTE: The RH KS must be installed in the 6 o'clock position and the LH KS must be installed in the 4 o'clock position. Failure to follow these instructions may result in damage to the engine.NOTE: Mark the location of the RH and LH KS.
Remove the bolts and the knock sensors.
- 47.
Alternately loosen the 2 fuel injection pump bolts one complete revolution at a time, remove the 2 bolts and fuel injection pump.
- 55.NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.
Remove the bolts and the ignition coil-on-plugs.
- 58.NOTE: The Variable Camshaft Timing (VCT) solenoid seals should only be replaced if they are damaged.
If necessary, remove and discard the seals. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1247 VCT Spark Plug Tube Seal Remover and Installer.
- 59.
Turn the crankshaft until piston no. 1 is 45 degrees before TDC by using the guide holes on the engine front cover and the crankshaft pulley.
- 62.NOTE: Failure to position the No. 1 piston at TDC can result in damage to the engine. Turn the engine in the normal direction of rotation only.NOTE: The special tool will contact the crankshaft and prevent it from turning past TDC. However, the crankshaft can still be rotated in the counterclockwise direction. The crankshaft must remain at the TDC position during the crankshaft pulley removal and installation.
Install the special tool and using the crankshaft pulley bolt, turn the crankshaft clockwise slowly until contact is made with the special tool. Use Special Service Tool: 303-507 Timing Peg, Crankshaft TDC., 303-507 Timing Peg, Crankshaft TDC.
- 63.NOTE: The special tool is for camshaft alignment only. Using this tool to prevent engine rotation can result in engine damage.
Install Special Service Tool: 303-1565 Alignment Tool, Camshaft.
- 64.NOTE: The crankshaft must remain in the TDC position during removal of the pulley bolt or damage to the engine can occur. Therefore, the crankshaft pulley must be held in place with the special tool, and the crankshaft pulley bolt should be removed using an air impact wrench (1/2-in drive minimum).NOTE: If equipped, the crankshaft sprocket diamond washer may come off with the crankshaft pulley.
Remove the crankshaft pulley bolt. Use Special Service Tool: 303-D055 (D85L-6000-A) Strap Wrench.
- 65.NOTE: Early build engines are equipped with a diamond washer on each side of the crankshaft sprocket. Late build engines have a laser etched crankshaft sprocket and do NOT require diamond washers. If an early build engine requires crankshaft sprocket replacement, discard the diamond washers and the sprocket and install a new laser etched sprocket (service part). Diamond washers should NEVER be installed with the laser etched sprocket.
If equipped, remove the diamond washer.
- 66.NOTE: Use care not to damage the engine front cover or the crankshaft when removing the seal.
Remove and discard the seal. Use Special Service Tool: 303-409 (T92C-6700-CH) Remover, Crankshaft Seal.

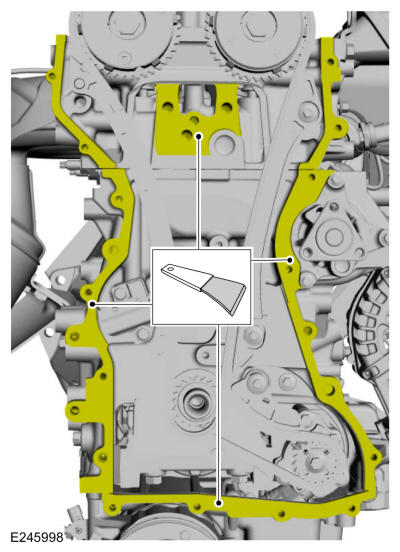

- 68.NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove traces of sealant.
Clean and inspect the engine front cover mating surfaces. REFER to: RTV Sealing Surface Cleaning and Preparation Use the General Equipment: Plastic Scraper
Material: Motorcraft® Silicone Gasket Remover / ZC-30-A
Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B
Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B

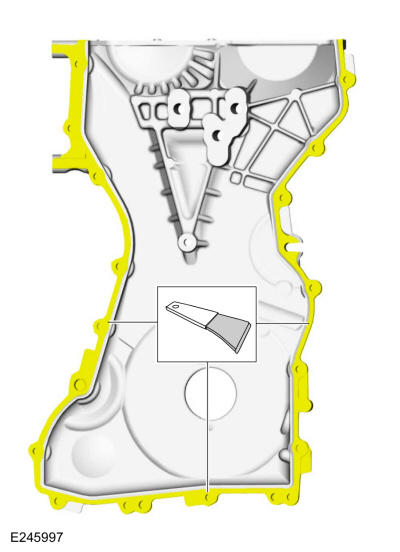

- 69.NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove traces of sealant.
Clean and inspect the engine front cover mating surfaces. REFER to: RTV Sealing Surface Cleaning and Preparation Use the General Equipment: Plastic Scraper
Material: Motorcraft® Silicone Gasket Remover / ZC-30-A
Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B
Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B
- 70.NOTE: Do not rely on the special tool to prevent camshaft rotation. Damage to the tool or the camshaft can occur.
Using a wrench on the flats of the exhaust camshaft to prevent camshaft rotation, loosen the exhaust camshaft VCT bolt.
- 71.NOTE: The special tool is for camshaft alignment only. Using this tool to prevent engine rotation can result in engine damage.
Using a wrench on the flats of the intake camshaft to prevent camshaft rotation, loosen the intake VCT bolt.
- 72.
- 1.
Using a small pick, release and hold the ratchet mechanism.
- 2.
While holding the ratchet mechanism in the released position, compress the tensioner by pushing the timing chain arm toward the tensioner.
- 3.
Insert a holding pin into the hole to retain the tensioner.
- 1.
- 77.NOTE: The VCT assembly bolts must be discarded and new installed.
Remove the bolts and the VCT assemblies.
- 78.NOTE: The special tool is for camshaft alignment only. Using this tool to prevent engine rotation can result in engine damage.
Remove Special Service Tool: 303-1565 Alignment Tool, Camshaft.
- 81.NOTE: Failure to follow the camshaft loosening procedure can result in damage to the camshafts.NOTE: Note the position of the camshaft lobes on the No. 1 cylinder for installation reference.NOTE: Mark the location and orientation of each camshaft bearing cap.
- 1.
Loosen the camshaft bearing caps in sequence 2 turns at a time until all tension is released from the camshaft bearing caps.
- 2.
Remove the camshaft bearing caps.
- 3.
Remove the camshafts.
- 1.
- 82.NOTE: If the camshafts and valve tappets are to be reused, mark the location of the valve tappets to make sure they are assembled in their original positions.
Remove the tappets.
- 83.NOTE: The number on the valve tappets only reflects the digits that follow the decimal. For example, a tappet with the number 0.650 has the thickness of 3.650 mm.
Install new components as necessary.
- 84.NOTE: The cylinder head bolts must be discarded and new bolts must be installed. They are tighten-to-yield designed and cannot be reused.
Remove and discard the cylinder head bolts.
- 87.NOTE: Observe all warnings or cautions and follow all application directions contained on the packaging of the silicone gasket remover and the metal surface prep.NOTE: Clean the cylinder head bolt holes in the cylinder block. Make sure all coolant, oil or other foreign material is removed.NOTE: If there is no residual gasket material present, metal surface prep can be used to clean and prepare the surfaces.
- 1.
Remove any large deposits of silicone or gasket material with a plastic scraper.
- 2.
Apply Motorcraft Silicone Gasket Remover following package directions, and allow to set for several minutes.Material: Motorcraft® Silicone Gasket Remover / ZC-30-A
- 3.
Remove the Motorcraft Silicone Gasket Remover with a plastic scraper. A second application of Motorcraft Silicone Gasket Remover may be required if residual traces of silicone or gasket material remain.Material: Motorcraft® Silicone Gasket Remover / ZC-30-A
- 4.
Apply Motorcraft Metal Surface Prep following package directions, to remove any traces of oil or coolant, and to prepare the surfaces to bond with the new gasket. Do not attempt to make the metal shiny. Some staining of the metal surfaces is normal.Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B
- 1.
- 88.NOTE: Aluminum surfaces are soft and can be scratched easily. Never place the cylinder head gasket surface, unprotected, on a bench surface.
Support the cylinder head on a bench with the head gasket side up. REFER to: Cylinder Head Distortion REFER to: Cylinder Block Distortion

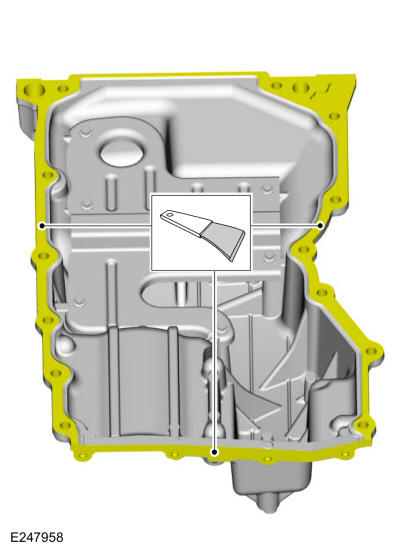

- 90.NOTE: Only use a 3M™ Roloc® Bristle Disk (2-in white, part number 07528) in a suitable tool turning at the recommended speed of 15, 000 rpm, to clean the oil pan. Do not use metal scrapers, wire brushes or any other power abrasive disk to clean. These tools cause scratches and gouges that make leak paths.
- Make sure that the mating faces of the oil pan are clean and free of foreign material. REFER to: RTV Sealing Surface Cleaning and Preparation
Use the General Equipment: Plastic Scraper
Material: Motorcraft® Silicone Gasket Remover / ZC-30-A
Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B
Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B
- Thoroughly wash the oil pan to remove any foreign material, including any abrasive particles created during the cleaning process.
- Make sure that the mating faces of the oil pan are clean and free of foreign material. REFER to: RTV Sealing Surface Cleaning and Preparation
Use the General Equipment: Plastic Scraper

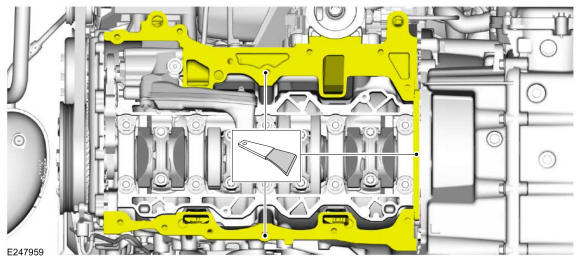

- 91.NOTE: Do not use wire brushes, power abrasive discs or 3M™ Roloc® Bristle Disk (2-in white, part number 07528) to clean the sealing surfaces of the engine block. These tools cause scratches and gouges that make leak paths. They also cause contamination that causes premature engine failure. Remove all traces of the gasket.
Make sure that the mating faces of the engine block are clean and free of foreign material. REFER to: RTV Sealing Surface Cleaning and Preparation Use the General Equipment: Plastic Scraper
Material: Motorcraft® Silicone Gasket Remover / ZC-30-A
Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B
Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B
- 94.
- 1.
Push the tensioner spring down and release the spring from under the shoulder bolt.
- 2.
Remove the 2 shoulder bolts and the tensioner and chain.
- 1.
- 96.NOTE: Early build engines are equipped with a diamond washer on each side of the crankshaft sprocket. Late build engines have a laser etched crankshaft sprocket and do NOT require diamond washers. If an early build engine requires crankshaft sprocket replacement, discard the diamond washers and the sprocket and install a new laser etched sprocket (service part). Diamond washers should NEVER be installed with the laser etched sprocket.
Identify crankshaft sprocket type.
- 1.
Early build engine - Flat faced sprocket (requires diamond washers).
- 2.
Late build engine - Laser etched sprocket (doesNOT require diamond washers).
- 1.
- 97.NOTE: If equipped, the diamond washer should be cleaned and inspected for any damage. If damage is evident, replace the diamond washer. If no damage, the diamond washer is to be reused. If the diamond washer is not installed, engine damage may occur.NOTE: Early build engines are equipped with a diamond washer on each side of the crankshaft sprocket. Late build engines have a laser etched crankshaft sprocket and do NOT require diamond washers. If an early build engine requires crankshaft sprocket replacement, discard the diamond washers and the sprocket and install a new laser etched sprocket (service part). Diamond washers should NEVER be installed with the laser etched sprocket.
If equipped, install the diamond washer.
- 101.
Before removing the pistons, inspect the top of the cylinder bores. If necessary, remove the ridge or carbon deposits from each cylinder using an abrasive pad or equivalent, following manufacturer's instructions.

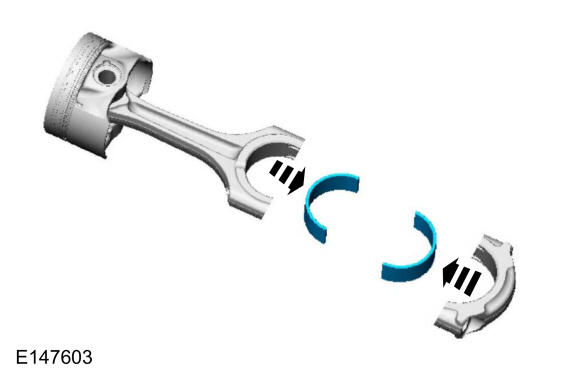

- 102.NOTE: Clearly mark the connecting rods, connecting rod caps and connecting rod bearings in numerical order for correct orientation for reassembly.
Remove the bolts and the connecting rod caps.
- 103.NOTE: Do not scratch the cylinder walls or crankshaft journals with the connecting rod.
Remove the pistons.
- 104.
Inspect the pistons. REFER to: Piston Inspection
- 106.NOTE: If the main bearings are being reused, mark them in order for correct orientation and reassembly.
Remove the main bearings.
- 108.NOTE: If the main bearings are being reused, mark them in order for correct orientation and reassembly.NOTE: The center bulkhead has the thrust bearing.
Remove the main bearings.

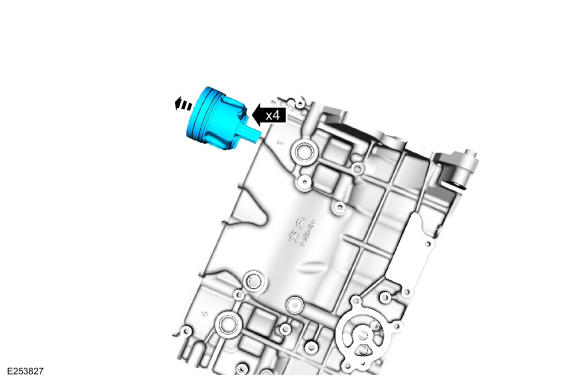

- 109.NOTE: If the engine piston oil coolers are being reused, mark them in order for correct location during reassembly.NOTE: The front bulkhead does not have an engine piston oil cooler.
Remove the engine piston oil coolers.
