Fuel Tank: Removal

WARNING: This page is about a different car, the 2016 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

1.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

2.

Release the fuel system pressure. Refer to: Fuel System Pressure Release .

3.

Disconnect the battery cable. Refer to: Battery Disconnect and Connect .

4.

Drain the fuel tank. Refer to: Fuel Tank Draining .

5.

Remove the nuts and position fuel tank heat shield aside.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

6.

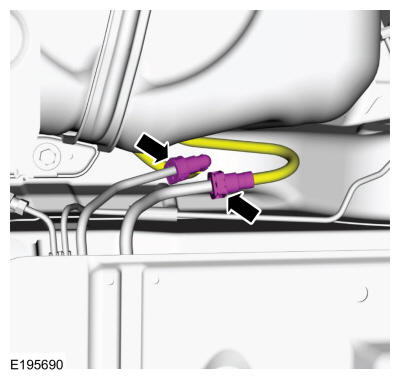

Disconnect the EVAP tube assembly-to-fuel tank tube quick release coupling and the fuel tank jumper tube-to-Fuel Pump (FP) assembly quick release coupling. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY

7.

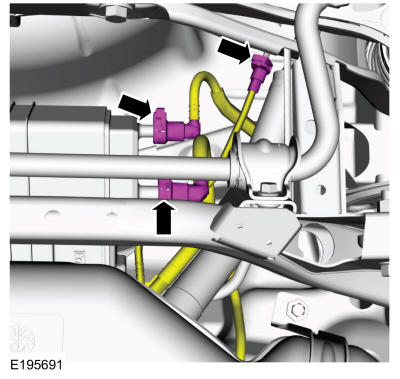

Disconnect the fuel vapor tube assembly-to-fuel tank quick release coupling and the vapor tube assembly-to-EVAP canister quick release couplings. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY

8.

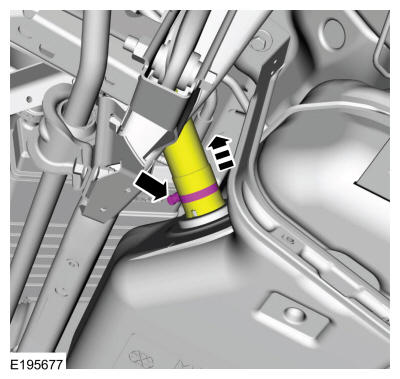

Loosen the hose clamp and disconnect the fuel tank filler pipe from the fuel tank.

Courtesy of FORD MOTOR COMPANY

9.

Position the Powertrain Jack under the fuel tank. Use the General Equipment: Powertrain Jack

10.

Remove and discard the 3 fuel tank strap bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

11.

Partially lower the fuel tank for access.

12.

Disconnect the Fuel Tank Pressure (FTP) sensor electrical connector.

Courtesy of FORD MOTOR COMPANY

13.

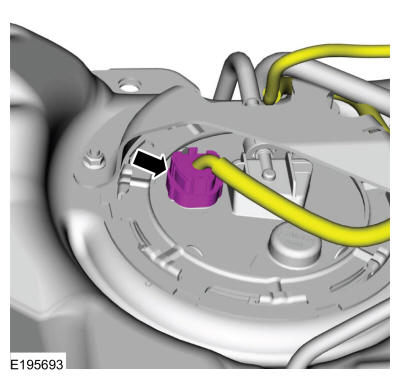

Disconnect the Fuel Pump (FP) module electrical connector.

Courtesy of FORD MOTOR COMPANY

14.

Lower the fuel tank.
