Instrument Cluster

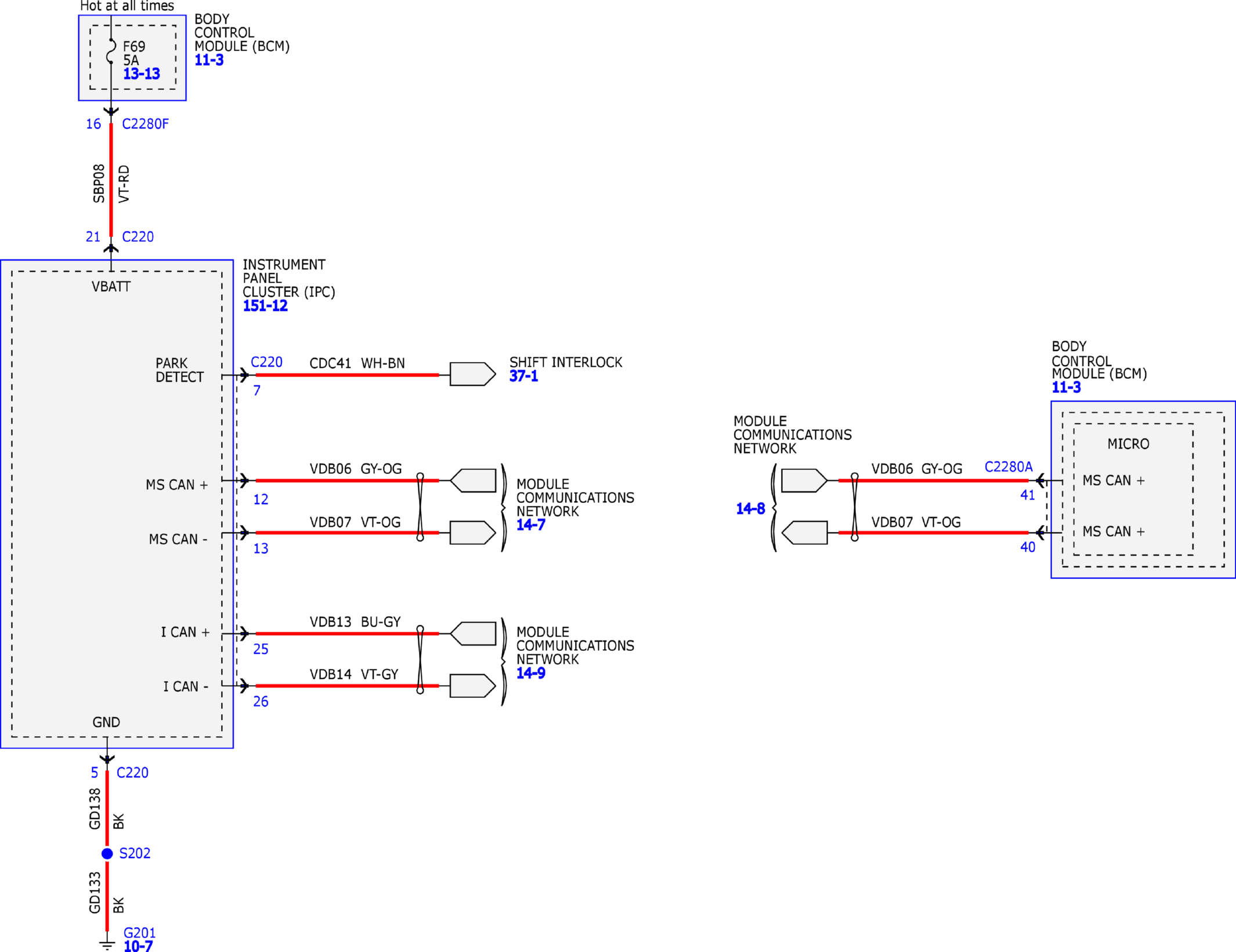

Fig 1: Instrument Cluster Wiring Diagram (1 Of 3)
GFDW23732Courtesy of FORD MOTOR COMPANY

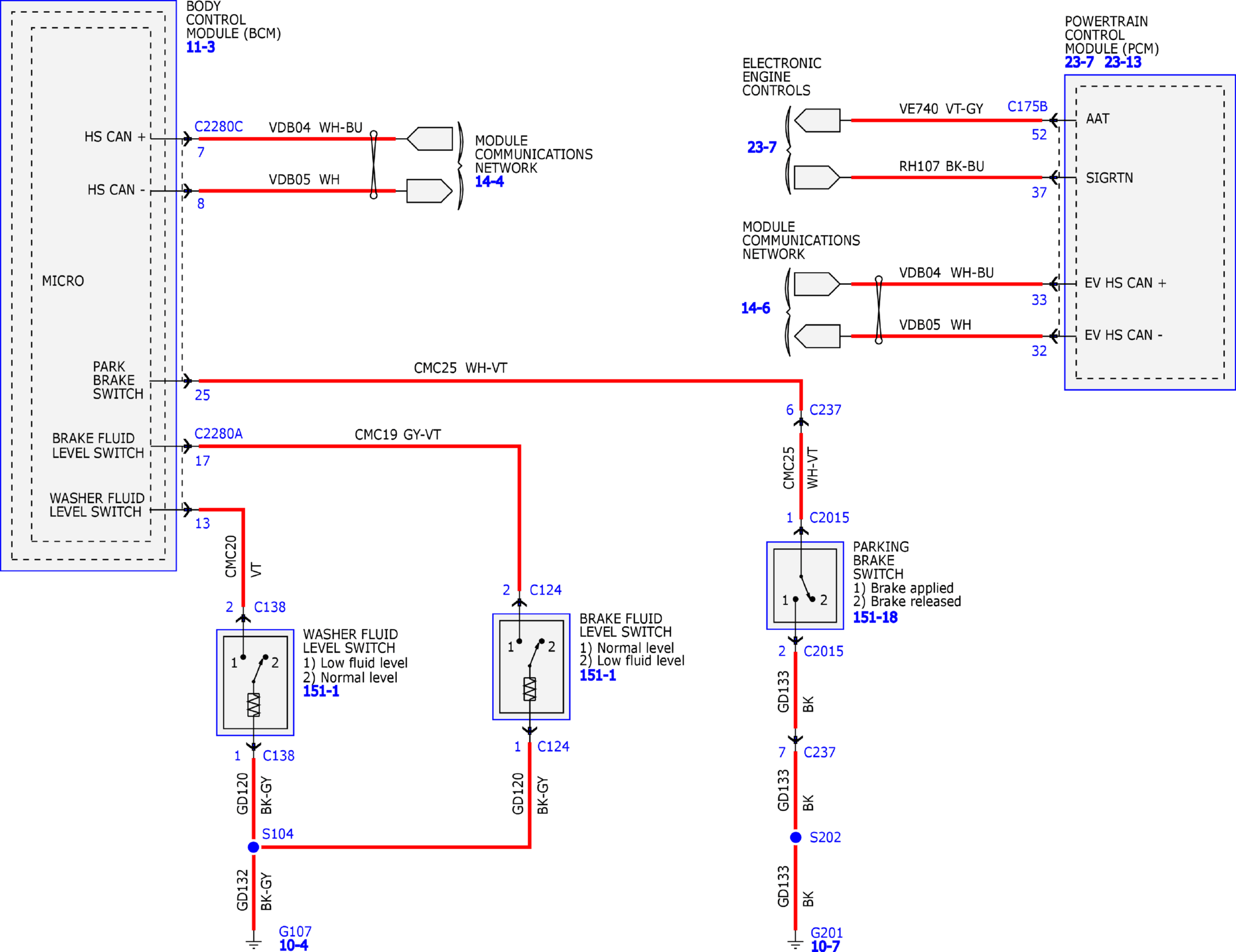

Fig 2: Instrument Cluster Wiring Diagram (2 Of 3)
GFDW23733Courtesy of FORD MOTOR COMPANY

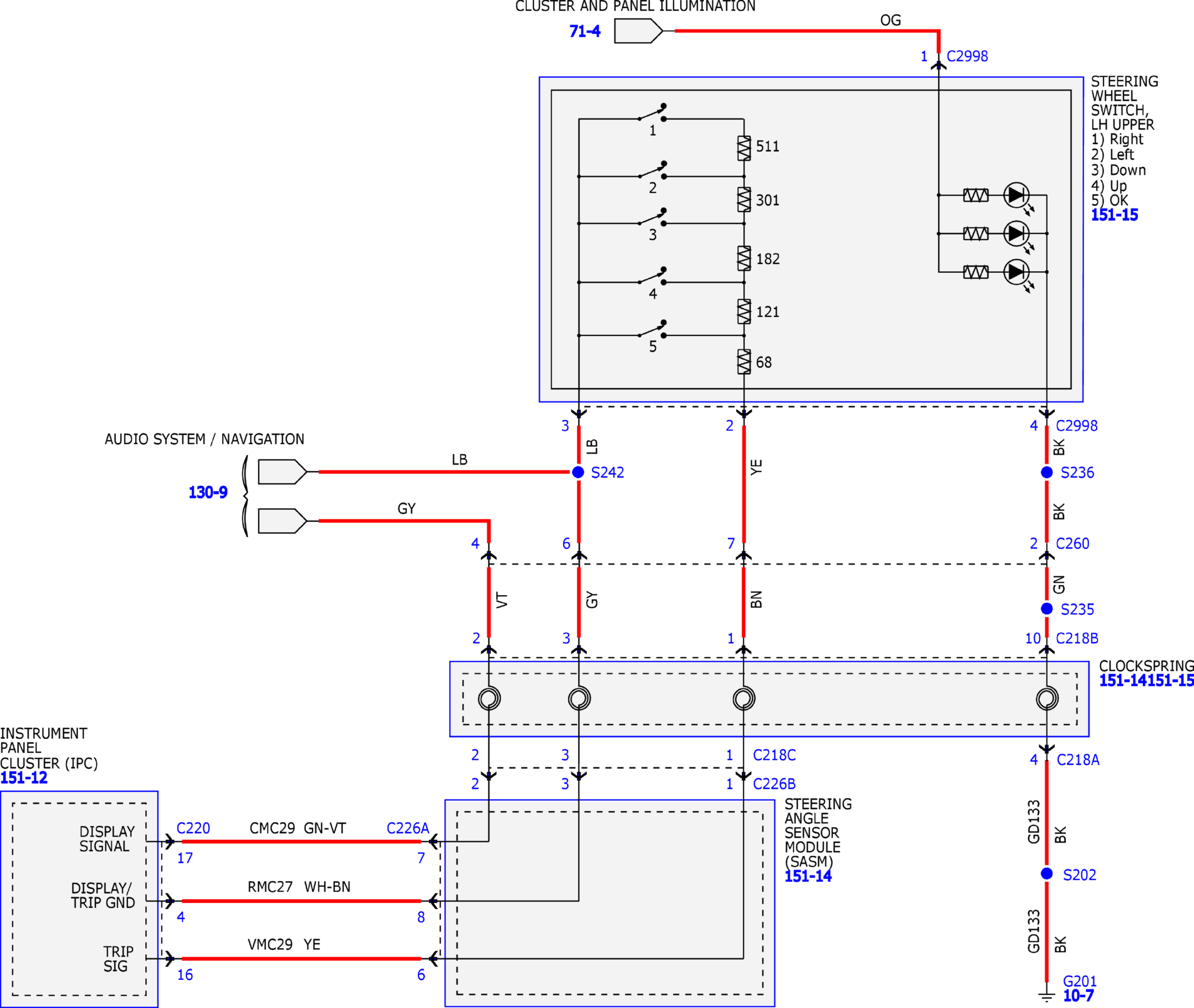

Fig 3: Instrument Cluster Wiring Diagram (3 Of 3)
GFDW23734Courtesy of FORD MOTOR COMPANY
