OEM Wiring Diagram Symbols (Electric Vehicle): Symbols

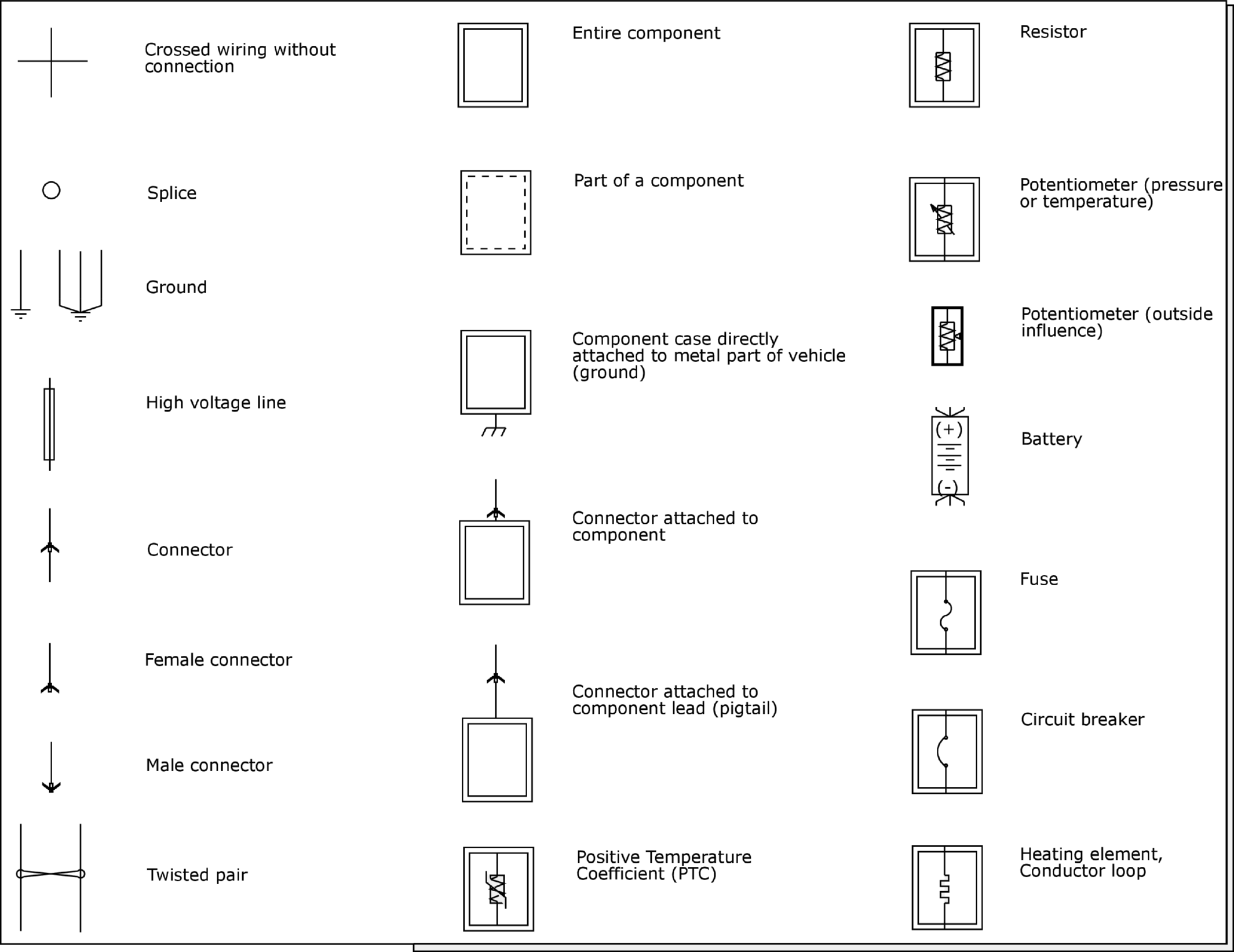

GFDW23862Courtesy of FORD MOTOR COMPANY

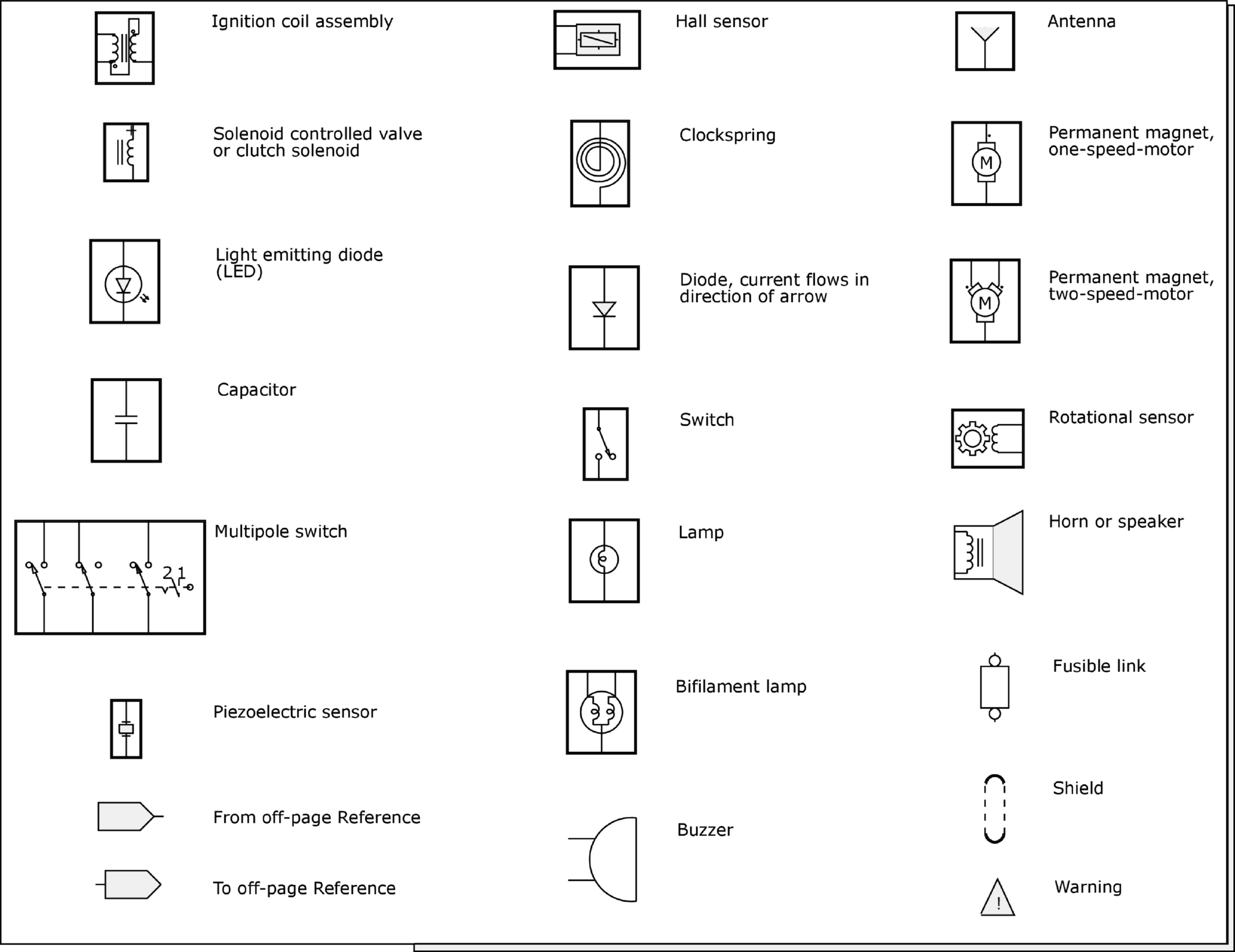

GFDW23863Courtesy of FORD MOTOR COMPANY

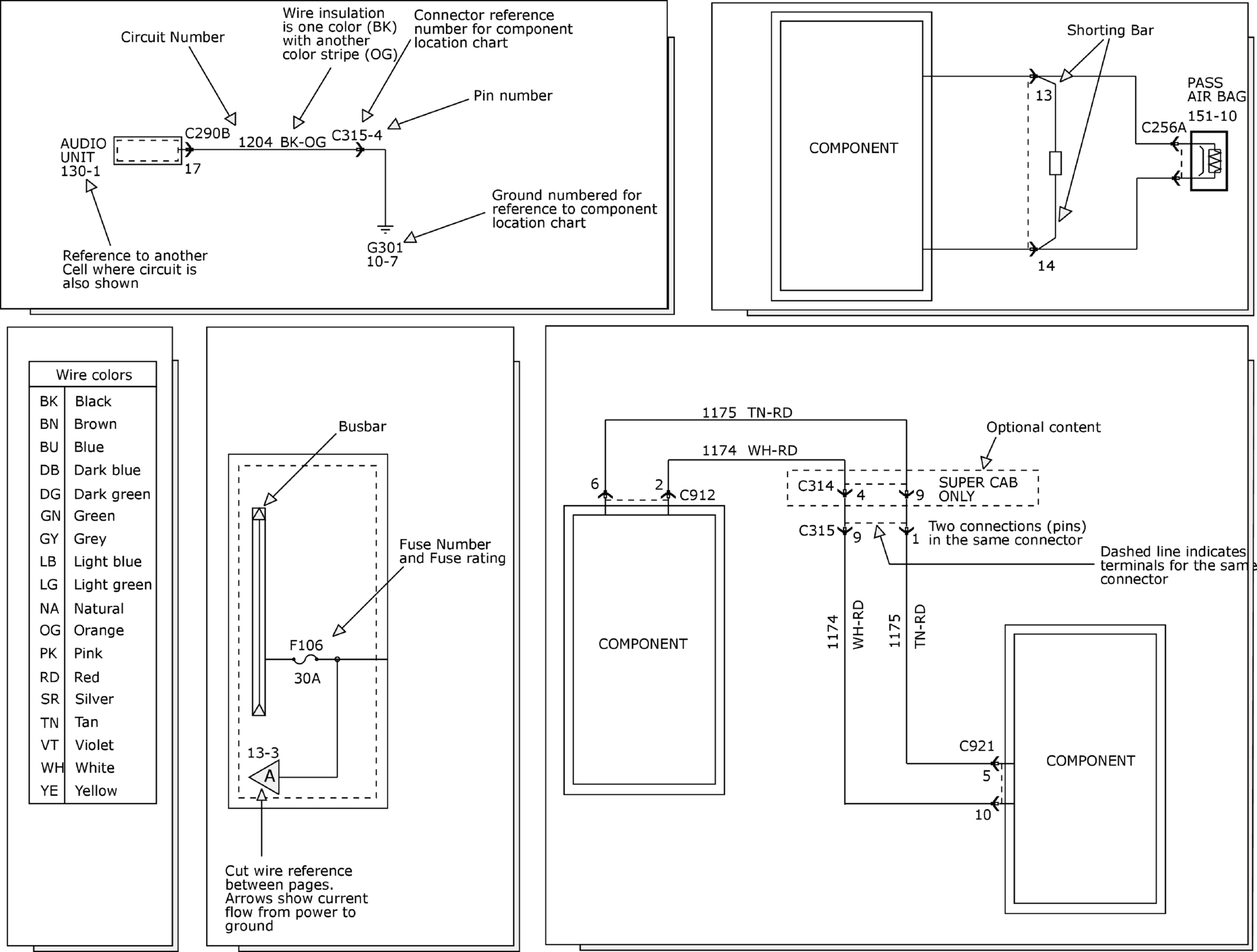

GFDW23864Courtesy of FORD MOTOR COMPANY

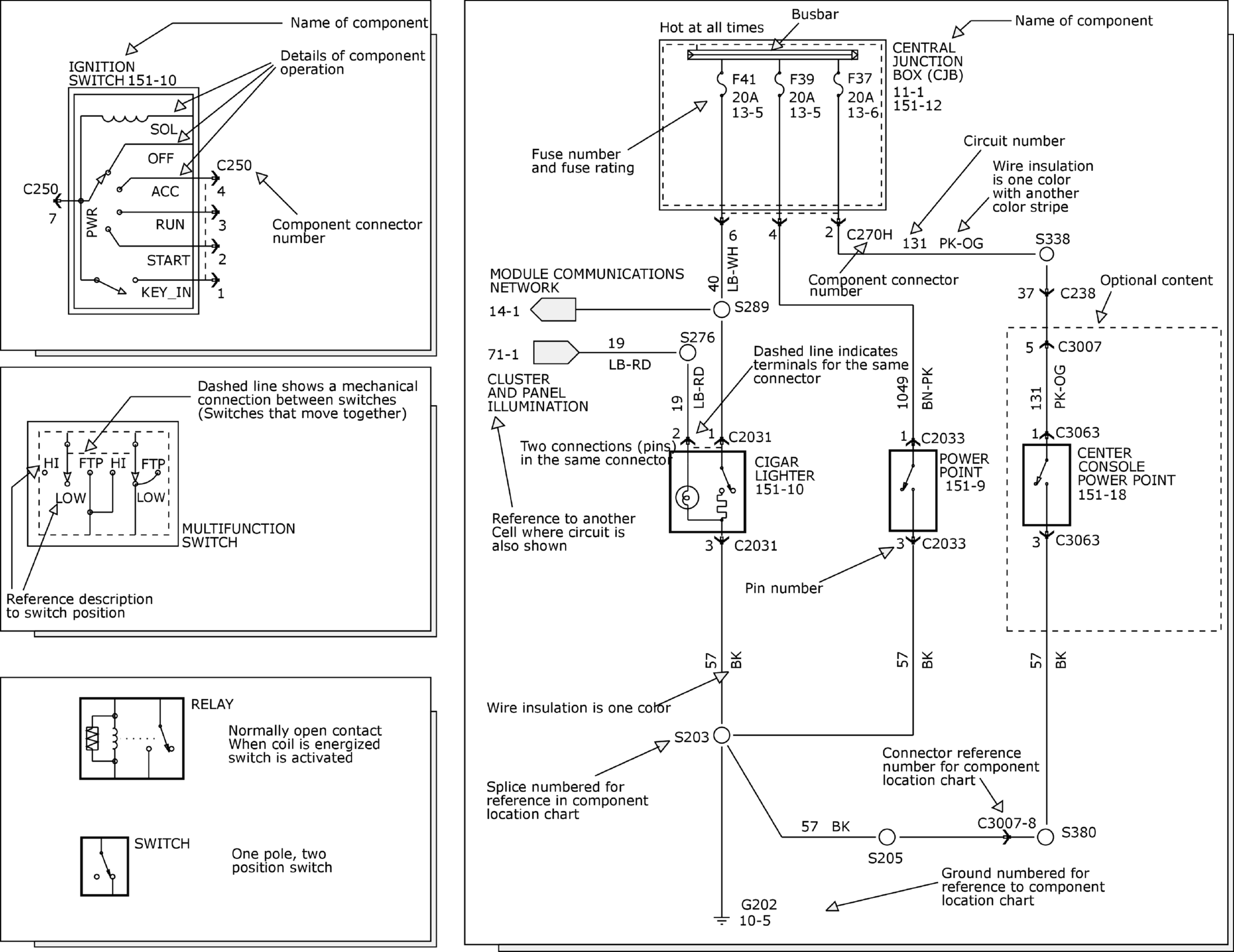

GFDW23865Courtesy of FORD MOTOR COMPANY

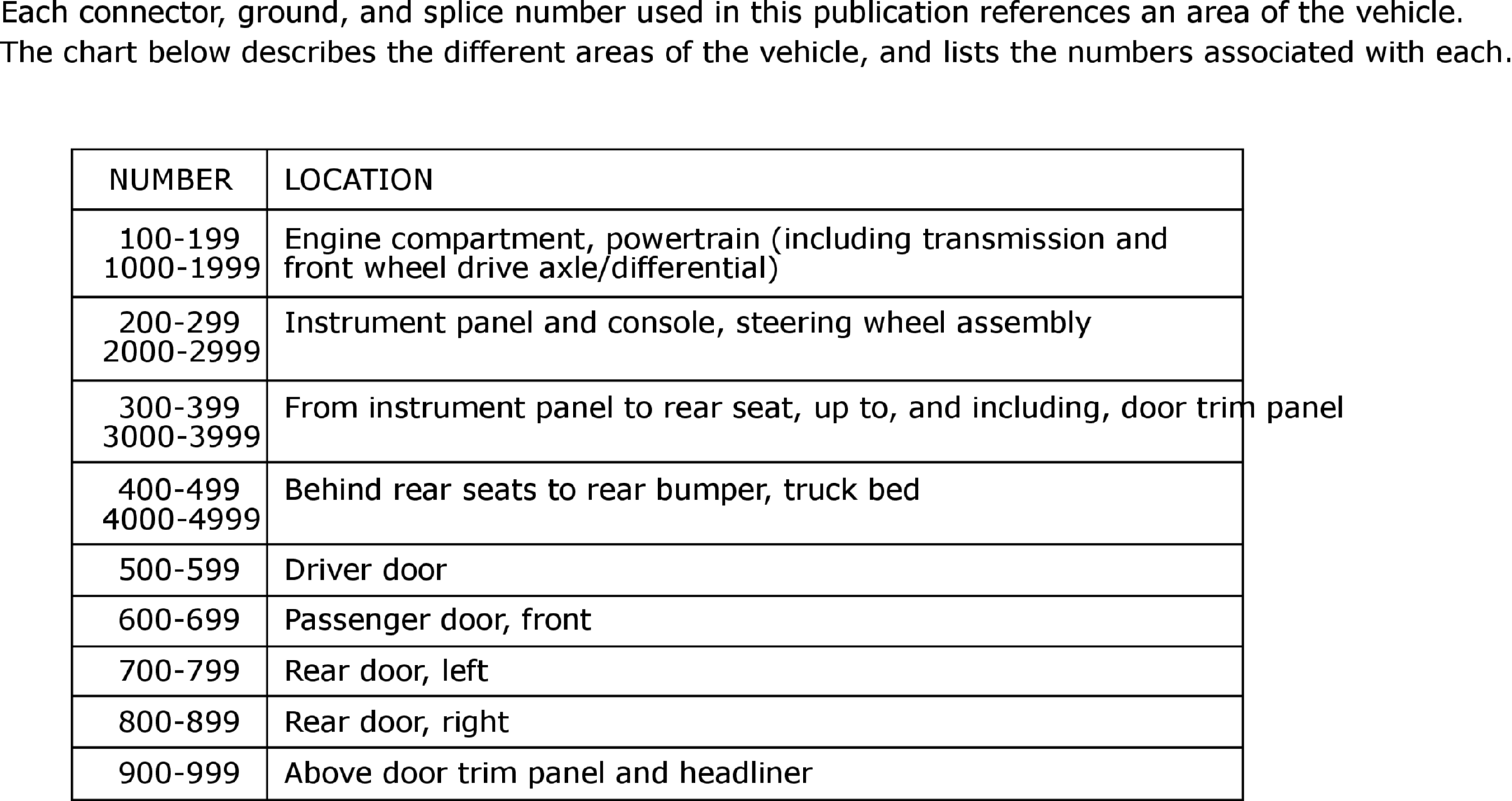

GFDW23866Courtesy of FORD MOTOR COMPANY
