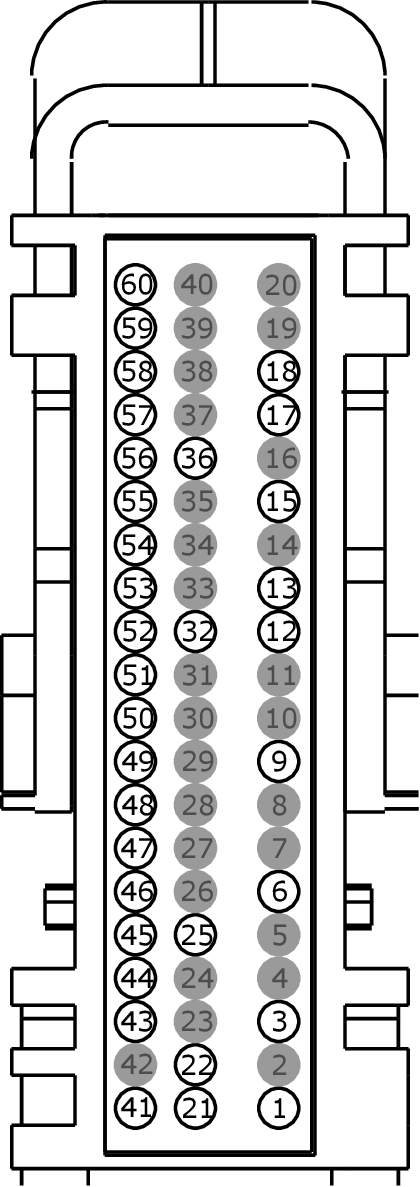

Connector End View (C2280B) - BODY CONTROL MODULE (BCM)
Connector: C2280B
Description
BODY CONTROL MODULE (BCM)
Color
BN
Harness
14014
Base Part #
part# N/A
Service Pigtail
Not Available
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CLS45 (VT-GN) |
20 |
CTRL MOD. - MARKER LAMP REAR (LEFT) + |
|
|
2 |
* |
* |
Not Used |
|
|
3 |
CLS27 (GN-OG) |
18 |
CTRL MOD. - TURN LAMP RIGHT REAR |
|
|
4 |
* |
* |
Not Used |
|
|
5 |
* |
* |
Not Used |
|
|
6 |
CLS23 (GY-OG) |
18 |
CTRL MOD. - TURN LAMP LEFT REAR |
|
|
7 |
* |
* |
Not Used |
|
|
8 |
* |
* |
Not Used |
|
|
9 |
CLS45 (VT-GN) |
20 |
CTRL MOD. - STOP LAMP REAR (RIGHT) + |
|
|
10 |
* |
* |
Not Used |
|
|
11 |
* |
* |
Not Used |
|
|
12 |
CLS45 (YE-BU) |
20 |
CTRL MOD. - STOP LAMP REAR (LEFT) + |
|
|
13 |
CLS45 (VT-GN) |
20 |
CTRL MOD. - MARKER LAMP REAR (RIGHT) + |
|
|
14 |
* |
* |
Not Used |
|
|
15 |
CLS17 (YE-GY) |
20 |
CTRL MOD. - STOP HIGH MOUNT |
|
|
16 |
* |
* |
Not Used |
|
|
17 |
CR115 (BN) |
20 |
CTRL MOD. - INDICATOR DEPLOYMENT (RDI) |
|
|
18 |
CPL77 (BU-GN) |
22 |
CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK DRIVER ILLUMINATION |
|
|
19 |
* |
* |
Not Used |
|
|
20 |
* |
* |
Not Used |
|
|
21 |
CLS04 (YE-VT) |
20 |
CTRL MOD. - LICENSE PLATE |
|
|
22 |
CRD02 (BN-BU) |
20 |
CTRL MOD. - RELAY HEATER REAR WINDOW |
|
|
23 |
* |
* |
Not Used |
|
|
24 |
* |
* |
Not Used |
|
|
25 |
CPL39 (YE) |
22 |
SWITCH - LATCH REAR PASSENGER SIDE # AJAR |
|
|
26 |
* |
* |
Not Used |
|
|
27 |
* |
* |
Not Used |
|
|
28 |
* |
* |
Not Used |
|
|
29 |
* |
* |
Not Used |
|
|
30 |
* |
* |
Not Used |
|
|
31 |
* |
* |
Not Used |
|
|
32 |
VMP35 (WH-BU) |
22 |
CAMERA - SIDE 360 RIGHT VIDEO- |
|
|
33 |
* |
* |
Not Used |
|
|
34 |
* |
* |
Not Used |
|
|
35 |
* |
* |
Not Used |
|
|
36 |
CPK42 (GY-YE) |
22 |
CTRL MOD. - KEYLESS VEHICLE # RELAY SMART KEYLESS ENTRY ACCESSORY |
|
|
37 |
* |
* |
Not Used |
|
|
38 |
* |
* |
Not Used |
|
|
39 |
* |
* |
Not Used |
|
|
40 |
* |
* |
Not Used |
|
|
41 |
CDC03 (BU) |
20 |
CTRL MOD. - RELAY IGNITION REAR JUNCTION BOX |
|
|
42 |
* |
* |
Not Used |
|
|
43 |
CRW02 (GY-BU) |
20 |
CTRL MOD. - REAR WIPER |
|
|
44 |
CPL36 (GN) |
20 |
SWITCH - LATCH REAR DRIVER SIDE # AJAR |
|
|
45 |
CPL26 (GN-VT) |
20 |
SWITCH - LATCH DRIVER # AJAR |
|
|
46 |
CPL31 (WH) |
20 |
SWITCH - LATCH PASSENGER # AJAR |
|
|
47 |
CPL44 (YE-OG) |
22 |
SWITCH - LIFTGATE/DECKLID/CARGO # AJAR |
|
|
48 |
* |
* |
Not Used |
|
|
49 |
CPL45 (BN) |
22 |
SWITCH - LIFTGATE/DECKLID RELEASE |
|
|
50 |
* |
* |
Not Used |
|
|
51 |
* |
* |
Not Used |
|
|
52 |
* |
* |
Not Used |
|
|
53 |
* |
* |
Not Used |
|
|
54 |
* |
* |
Not Used |
|
|
55 |
* |
* |
Not Used |
|
|
56 |
* |
* |
Not Used |
|
|
57 |
* |
* |
Not Used |
|
|
58 |
* |
* |
Not Used |
|
|
59 |
* |
* |
Not Used |
|
|
60 |
* |
* |
Not Used |
