Brake Vacuum Pump: Removal
NOTE:
Removal steps in this procedure may contain installation details.
 Courtesy of FORD MOTOR COMPANY
|
- 3.

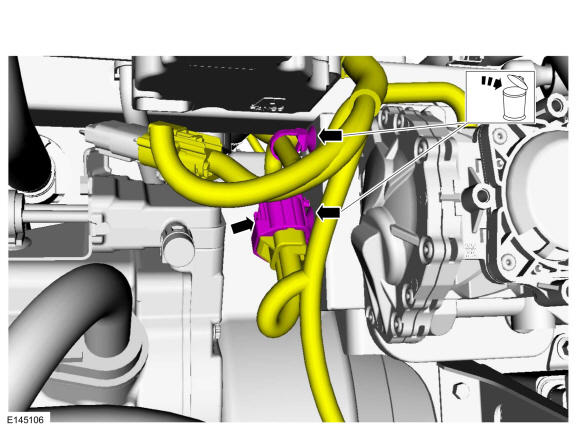

Discard the specified component. Follow local disposal regulations.
 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|
- 5.
Torque: 89 lb.in (10 Nm)
 Courtesy of FORD MOTOR COMPANY
|
- 6.

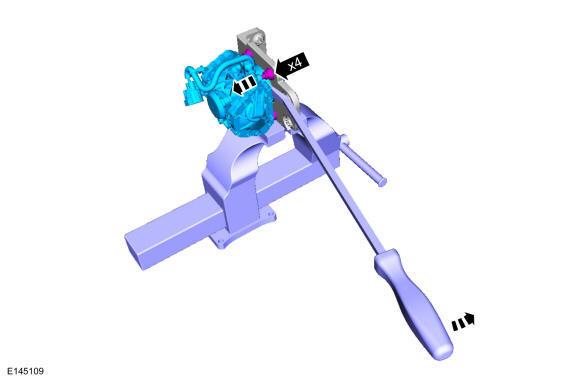

Use the General Equipment: Vise
 Courtesy of FORD MOTOR COMPANY
|
