Brake Vacuum Pump: Installation

1.

To install, reverse the removal procedure.

2.

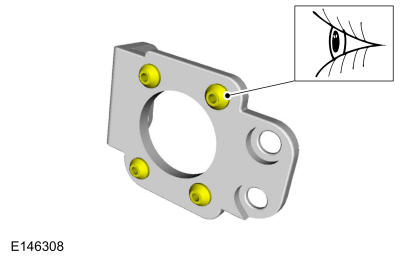

NOTE: Install new brake vacuum pump bracket isolators as necessary.

Visual check.

GFD65007

Courtesy of FORD MOTOR COMPANY
