Front Bumper: Installation

1.

With the help of an assistant, position the front bumper on the vehicle, center the bumper plate on the mounting studs and install the retaining nuts.
Torque

: 18 lb.ft (25 Nm)

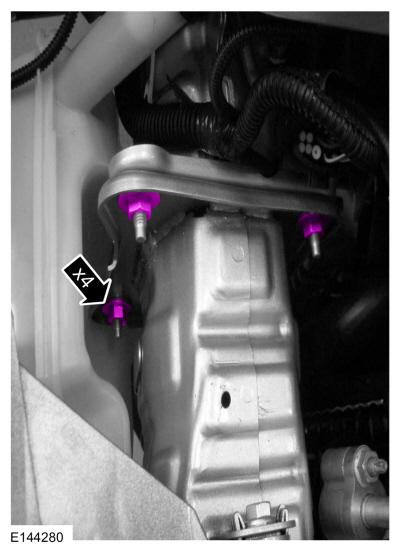

GFD66087

Courtesy of FORD MOTOR COMPANY

2.

Install the grille reinforcement panel lower bolts and adjusters.
Torque

: 17 lb.ft (23 Nm)

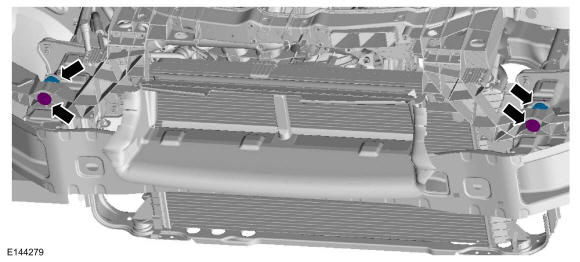

GFD66086

Courtesy of FORD MOTOR COMPANY

3.

Install the grille reinforcement panel upper bolts.
Torque

: 17 lb.ft (23 Nm)

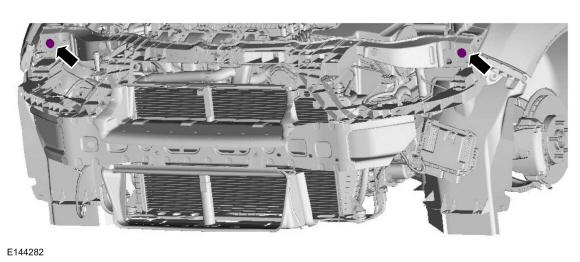

GFD66089

Courtesy of FORD MOTOR COMPANY

4.

Install the forward fender bolts.
Torque

: 53 lb.in (6 Nm)

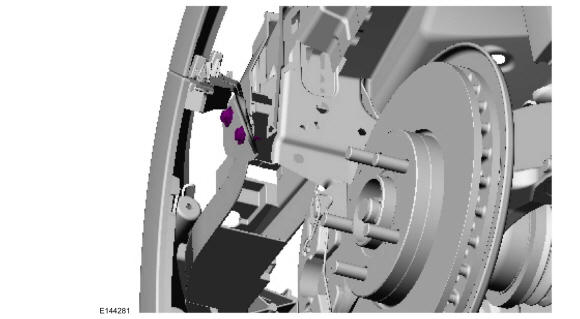

GFD66088

Courtesy of FORD MOTOR COMPANY

5.

Install the lower radiator support.
Torque

: 18 lb.ft (25 Nm)

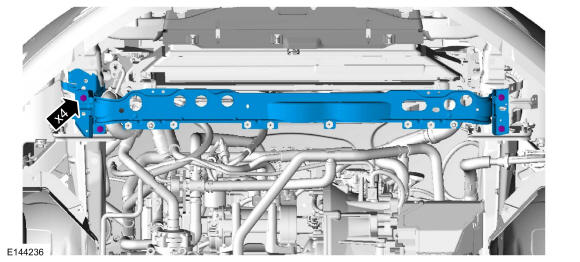

GFD66081

Courtesy of FORD MOTOR COMPANY

6.

Install the horn wiring harness.

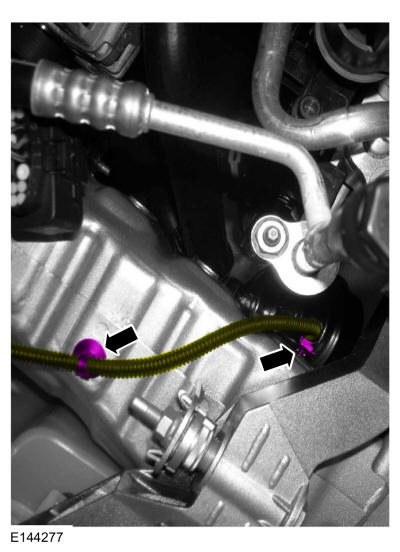

GFD66085

Courtesy of FORD MOTOR COMPANY

7.

Install the forward washer reservoir bolt.
Torque

: 71 lb.in (8 Nm)

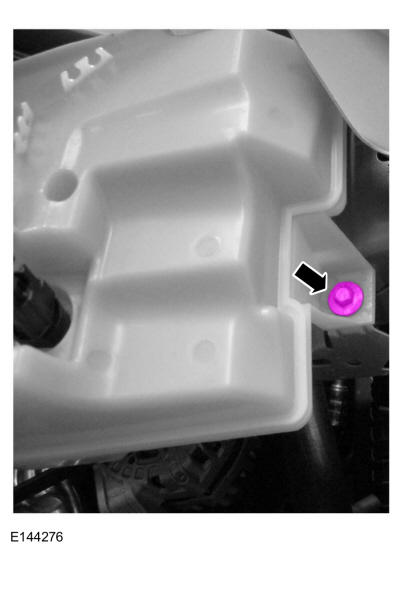

GFD66084

Courtesy of FORD MOTOR COMPANY

8.

Install the horn assembly.
Torque

: 71 lb.in (8 Nm)

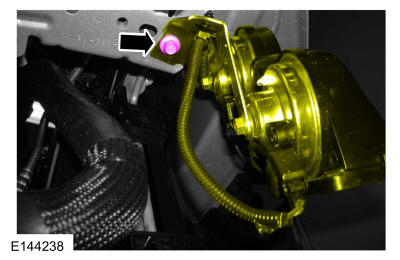

GFD66083

Courtesy of FORD MOTOR COMPANY

9.

Install the upper radiator air deflector.

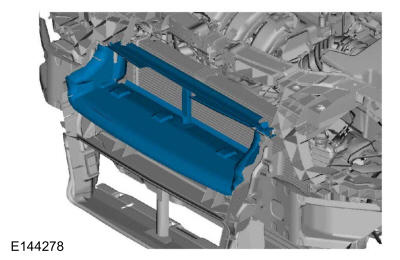

GFD65334

Courtesy of FORD MOTOR COMPANY

10.

Install the forward PCM case bolt.
Torque

: 53 lb.in (6 Nm)

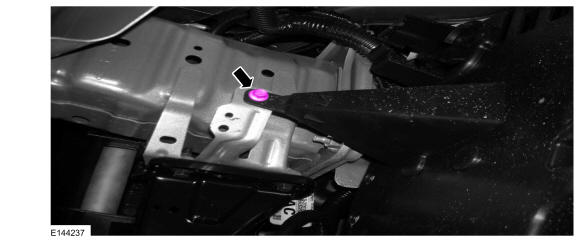

GFD66082

Courtesy of FORD MOTOR COMPANY

11.

Install the LH lighting wire harness.

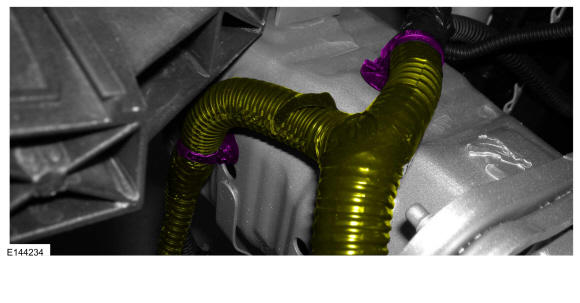

GFD66080

Courtesy of FORD MOTOR COMPANY

12.

Install the front bumper cover. Refer to: Front Bumper Cover .
