Front Bumper Cover: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- 1.WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in GENERAL INFORMATION (ELECTRIC) . Failure to follow this instruction may result in serious personal injury.
- 2.
With the vehicle in NEUTRAL, position it on a hoist. Refer to: JACKING AND LIFTING (ELECTRIC) .

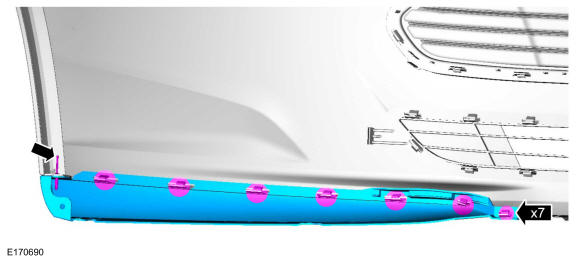

- 4.NOTE: Separate the lower radiator air deflectors from the front bumper cover.
On both sides.
Torque
: 27 lb.in (3 Nm)
- 5.
Remove the headlamp assemblies. Refer to: Headlamp Assembly .
