Window Glass, Frames And Mechanisms (Electric Vehicle)
>>
Description And Operation
>>
Glass, Frames and Mechanisms - System Operation and Component Description
>>
System Diagram - Power Windows
System Diagram - Power Windows
Driver Side Windows
Courtesy of FORD MOTOR COMPANY

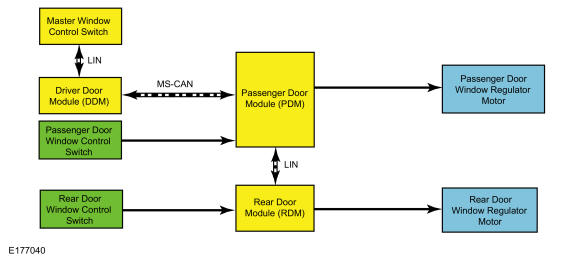

Passenger Side Windows
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
