Overhead Console: Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

    WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in GENERAL INFORMATION (ELECTRIC) . Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions .

  1. 2.

    Open the sun glasses bin.
GFD65973Courtesy of FORD MOTOR COMPANY

  1. 3.

    NOTE: Sun glasses bin shown in illustration, removed for clarity.

    Using a screwdriver, pry both corners of the switch bezel down.

    Use the General Equipment: Flat Headed Screw Driver

GFD65974Courtesy of FORD MOTOR COMPANY

  1. 4.

    Using a screwdriver, push inward on both sides on the switch panel inner tabs to release the switch panel.

    Use the General Equipment: Flat Headed Screw Driver

GFD65975Courtesy of FORD MOTOR COMPANY

  1. 5.

    Remove the switch panel.
GFD65976Courtesy of FORD MOTOR COMPANY

  1. 6.

    Disconnect the electrical connectors and remove the microphone.
GFD65977Courtesy of FORD MOTOR COMPANY

  1. 7.

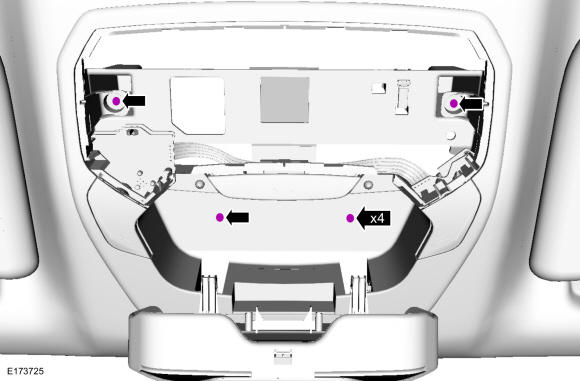

    If equipped. Remove the Torx screws.
GFD65978Courtesy of FORD MOTOR COMPANY

  1. 8.

    Using a suitable tool release the snap tabs facing the rear of vehicle on both sides.
GFD65979Courtesy of FORD MOTOR COMPANY

  1. 9.

    Using a suitable tool release the side snap tabs on both sides.
GFD65980Courtesy of FORD MOTOR COMPANY

  1. 10.

    Rotate the overhead console assembly downward and pull rearward to release the clip tabs and remove the overhead console assembly.
GFD65981Courtesy of FORD MOTOR COMPANY
