Parking Aid - Vehicles With: Parking Aid Camera (Electric Vehicle)
>>
Description And Operation
>>
Parking Aid - Component Location
>>

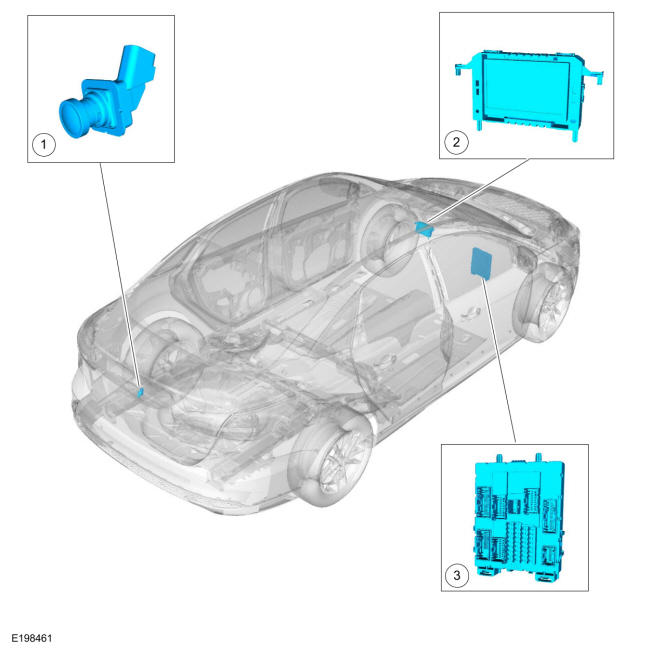

Visual Parking Aid
Visual Parking Aid
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Rear parking aid camera
2
Centerstack infotainment display (FDIM shown in illustration, FCDIM similar)
3
BCM
