Connector End View (C337) - SIDE AIR BAG MODULE, PASSENGER

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CR106 (VT-GY)

20

CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT PASSENGER OUTBOARD +

2

RR106 (YE-OG)

20

CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT PASSENGER OUTBOARD -

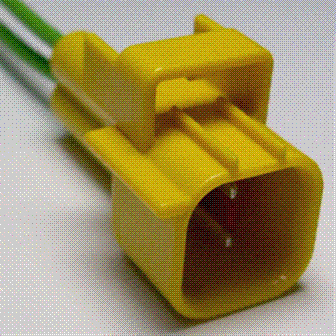

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1244

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-BMA

Gauge:

16

Pin material:

Silver

Cavities:

2

Vehicle Uses

Pretensioner - Seat Belt (Passenger)
