Connector End View (C327) - INLINE
Inline C327
Description
INLINE
Color
none
Base Part #
Service Pigtail
See Below
MALE
Harness 2410H43
FEMALE
Harness 13A718
|
Pin |
Circuit |
Gauge |
Qualifier |
|
1 |
* (OG) |
22 |
2410H43 |
|
1 |
CLN44 (OG) |
22 |
13A718 |
|
2 |
* (BN) |
22 |
2410H43 |
|
2 |
RLN44 (BN) |
22 |
13A718 |
|
3 |
* (GN) |
22 |
2410H43 |
|
3 |
CLN45 (GN) |
22 |
13A718 |
|
4 |
* (BU) |
22 |
2410H43 |
|
4 |
CLN46 (BU) |
22 |
13A718 |
|
Available Pigtail Kits |
|
|

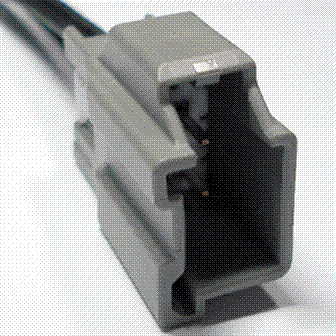

Pigtail Kit Part Number WPT-1076 |
Service Part Number: 3U2Z-14S411-BUB Gauge: 14 Pin material: Tin (greased) Cavities: 4 Vehicle Uses: Connector - Inline Element - Heated Seat Lamp - Ash Tray Lamp - Courtesy - Footwell Module - Remote Keyless Entry Motor - Heater/AC Blower (Auxiliary) Radio - Amplifier Switch - Convertable Top |
