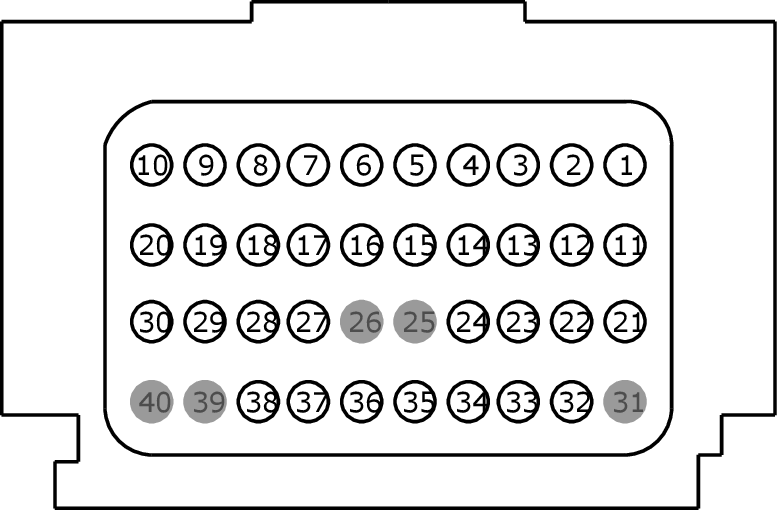

Connector End View (C310B) - RESTRAINTS CONTROL MODULE (RCM)
Connector: C310B
Description
RESTRAINTS CONTROL MODULE (RCM)
Color
BK
Harness
14A005
Base Part #
part# N/A
Service Pigtail
Not Available
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
RR170 (BU-BN) |
10 |
CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE (#2) - |
|
|
2 |
CR170 (GY-VT) |
10 |
CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE (#2) + |
|
|
3 |
CR120 (BU-OG) |
20 |
CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE + |
|
|
4 |
RR120 (BN-GN) |
20 |
CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE - |
|
|
5 |
RR105 (GY-YE) |
20 |
CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT DRIVER SIDE - |
|
|
6 |
CR105 (GN-BU) |
20 |
CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT DRIVER SIDE + |
|
|
7 |
CR109 (BN-BU) |
18 |
CTRL MOD. - INFLATABLE CURTAIN LH SIDE + |
|
|
8 |
RR109 (BU-GN) |
18 |
CTRL MOD. - INFLATABLE CURTAIN LH SIDE - |
|
|
9 |
VDB05 (WH) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW |
|
|
10 |
VDB04 (WH-BU) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH |
|
|
11 |
RR147 (YE-VT) |
10 |
CTRL MOD. - SEAT BELT SHOULDER ADAPTIVE LOAD LIMITING PASSENGER OUTBOARD - |
|
|
12 |
CR147 (GN-OG) |
10 |
CTRL MOD. - SEAT BELT SHOULDER ADAPTIVE LOAD LIMITING PASSENGER OUTBOARD + |
|
|
13 |
CR122 (WH-OG) |
20 |
CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD + |
|
|
14 |
RR122 (BN) |
20 |
CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD - |
|
|
15 |
RR106 (YE-OG) |
20 |
CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT PASSENGER OUTBOARD - |
|
|
16 |
CR106 (VT-GY) |
20 |
CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT PASSENGER OUTBOARD + |
|
|
17 |
CR111 (BN-WH) |
18 |
CTRL MOD. - INFLATABLE CURTAIN RH SIDE + |
|
|
18 |
RR111 (YE-VT) |
18 |
CTRL MOD. - INFLATABLE CURTAIN RH SIDE - |
|
|
19 |
VCA24 (GN-OG) |
22 |
CTRL MOD. - SENSOR YAW ABS / IVD / TC CAN BUS LOW |
|
|
20 |
VCA23 (BU-WH) |
22 |
CTRL MOD. - SENSOR YAW ABS / IVD / TC CAN BUS HIGH |
|
|
21 |
RR132 (BU-WH) |
20 |
CTRL MOD. - SENSOR SIDE IMPACT FRONT DOOR, PASSENGER SIDE - |
|
|
22 |
VR218 (YE-OG) |
20 |
SENSOR - SIDE IMPACT FRONT DOOR, PASSENGER SIDE + |
|
|
23 |
VR219 (GN-WH) |
20 |
SENSOR - SIDE IMPACT ROW 2 LH FEED |
|
|
24 |
RR133 (GY-BN) |
20 |
CTRL MOD. - SENSOR SIDE IMPACT ROW 2 LH RTN |
|
|
25 |
* |
* |
Not Used |
|
|
26 |
* |
* |
Not Used |
|
|
27 |
VR213 (VT-GN) |
22 |
SENSOR - IMPACT FRONT LH FEED |
|
|
28 |
RR129 (YE-GY) |
22 |
CTRL MOD. - SENSOR IMPACT LH RTN |
|
|
29 |
RR130 (GN-BU) |
22 |
CTRL MOD. - SENSOR IMPACT FRONT RH FEED |
|
|
30 |
VR214 (WH-BU) |
22 |
SENSOR - IMPACT FRONT RH FEED |
|
|
31 |
* |
* |
Not Used |
|
|
32 |
VR215 (YE-VT) |
20 |
SENSOR - SEAT TRACK POSITION DRIVER |
|
|
33 |
CR203 (GY-VT) |
20 |
SENSOR - SEAT BELT BUCKLE FRONT PASSENGER OUTBOARD |
|
|
34 |
CR201 (GN-BU) |
20 |
SENSOR - SEAT BELT BUCKLE FRONT DRIVER SIDE |
|
|
35 |
RR131 (VT-GY) |
20 |
CTRL MOD. - SENSOR SIDE IMPACT FRONT DOOR, DRIVER SIDE - |
|
|
36 |
VR217 (GY-YE) |
20 |
SENSOR - SIDE IMPACT FRONT DOOR, DRIVER SIDE + |
|
|
37 |
VR220 (VT-OG) |
20 |
SENSOR - SIDE IMPACT ROW 2 RH FEED |
|
|
38 |
RR134 (BN-BU) |
20 |
CTRL MOD. - SENSOR SIDE IMPACT ROW 2 RH RTN |
|
|
39 |
* |
* |
Not Used |
|
|
40 |
* |
* |
Not Used |
